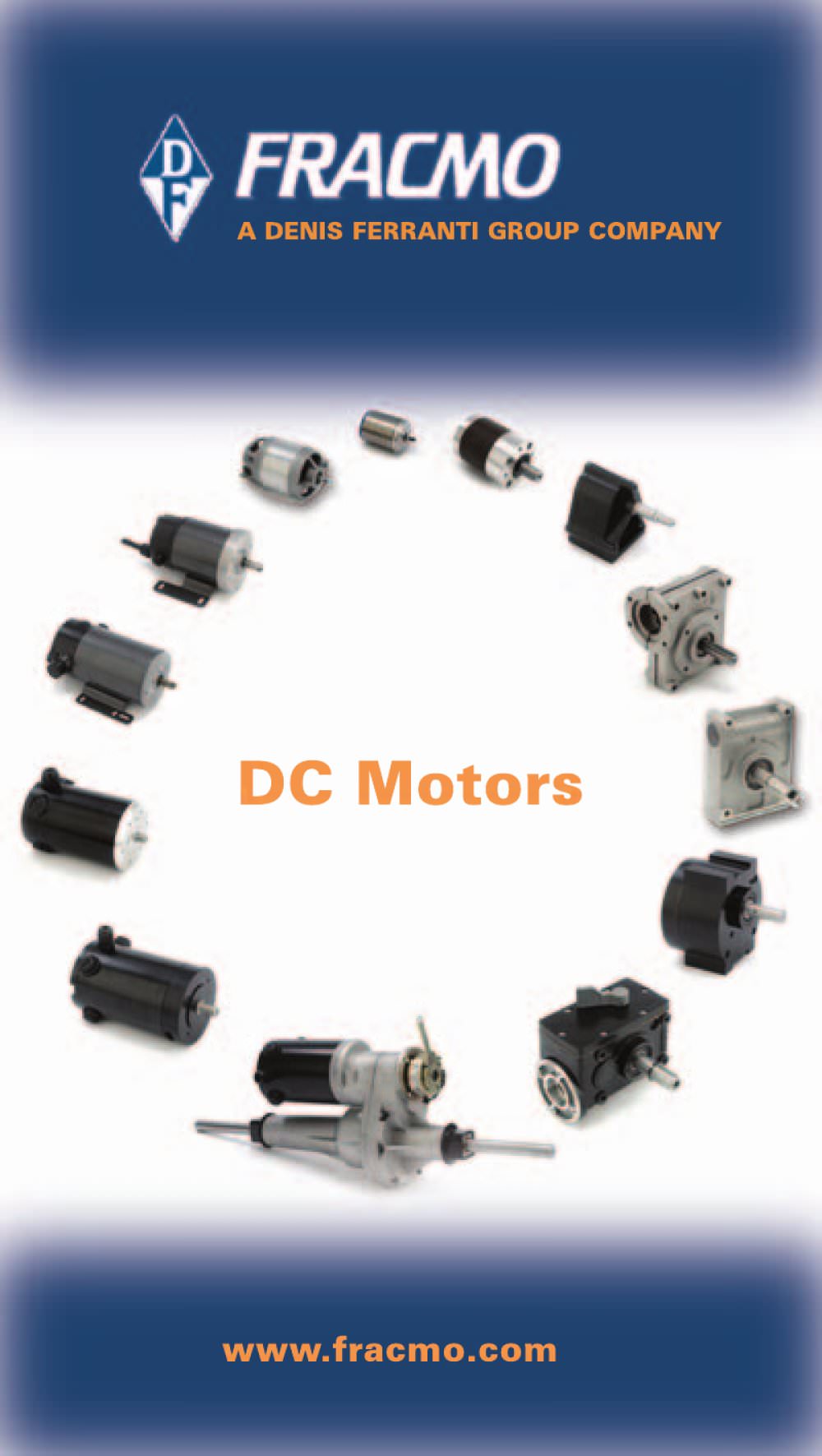

Fracmo DC Motors
1 / 9 PagesView full catalog
Fracmo DC Motors
Product catalog summary
Overview: The document provides technical specifications and performance features of the Permanent Magnet (PM) motor range produced by Fracmo, a Denis Ferranti Group company. These motors are designed for fractional horsepower applications and can be customized to meet specific customer requirements.
Specifications:
- Voltage Range: 12 to 180 VDC
- Output Torque Range: 0.1 to 2 Nm
- Continuous Output Power Range: 50 to 500 Watts
- Rotation: Reversible
- Connections: Flying leads or customer-preferred plugs
- Static Parking Brake: 12/24 Volts with or without hand release
- Speed Range: 1000 to 4500 RPM
- Insulation: Class F
- Brushes: Long-life, low-noise with cartridge brush gear for easy maintenance
- Enclosure: Totally enclosed to IP44
Motor Range: The range includes two 4-pole motors (PM62 and PM55 frames) and two 2-pole motors (PM45 and PM36 frames). These motors can be tailored with specific brush gear arrangements, output shaft details, and additional electromagnetic brakes. Encoders can be incorporated for greater control.
Performance Features: The motors can be integrated with Fracmo gearboxes for enhanced flexibility. The document includes detailed rating tables for different motor frames (PM36, PM45, PM55, PM62) showing motor speed versus output power at various RPMs and time ratings (5 min, 15 min, 30 min, continuous).
Customization Options: Customers can specify shaft details, mounting options (foot or flange), and supply lead configurations. The motors are adaptable to different voltage supplies, with the standard rating tables assuming a 24 V DC supply.
Additional Information: For further customization and technical support, customers are encouraged to contact the Fracmo sales team.
See more
Catalog excerpts
Design Features ● Voltage Range: 12 to 180 VDC. > Motor Range ● Output Torque Range: 0.1 to 2 Nm. ● Continuous Output Power Range: 50 to 500 Watts. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Speed Range 1000 to 4500 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. > Performance Features
