Fracmo

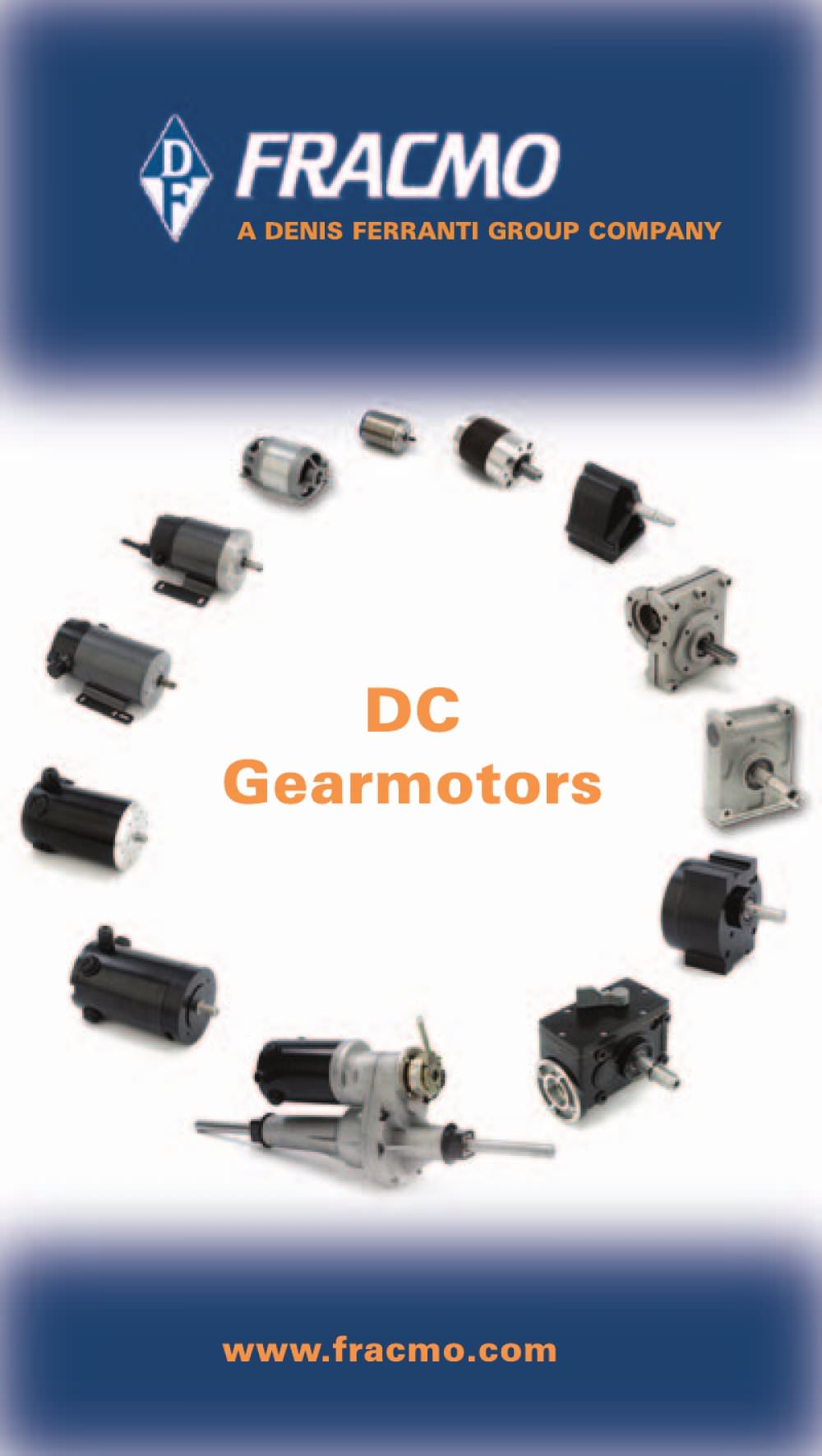

Fracmo DC gearmotors

Fracmo DC gearmotors

Product catalog summary

Overview: The document outlines the specifications and features of DC gearmotors and geared motor units by Fracmo, part of the Denis Ferranti Group. It covers motor ranges, design features, performance characteristics, and customization options.

Specifications:

Voltage Range: 12 to 180 VDC.
Output Torque Range: 0.1 to 2 Nm for PM motors; up to 42 Nm for geared units.
Output Power Range: 50 to 500 Watts for PM motors; 37 to 500 Watts for geared units.
Speed Range: 55 to 4500 RPM depending on the model.
Insulation: Class F.
Enclosure: IP44.

Design Features:

Reversible motors with customization options for leads or plugs.
Static parking brake available at 12/24 Volts, with optional hand release.
Customizable output shafts.
Long-life, low-noise brushes with easy maintenance cartridge brush gear.

Motor Range:

Includes PM62, PM55, PM45, and PM36 frames.
Customizable for specific applications, including brush gear arrangement and additional electromagnetic brakes.
Encoders can be added for enhanced control.

Geared Motor Units:

G30/PM45: Right-angled drive with two-stage gear configuration, offering varied output speeds and torques.
G34/PM62, PM55, PM45: Two-stage gearbox with disengage mechanism for freewheeling, suitable for mobility vehicles.
Gear ratios range from 10:1 to 35:1 for G30 and 16:1 to 35:1 for G34 units.

Performance Data:

Tables provide output power, torque, and speed for various motor frames and gear ratios.
Customization options include motor stack lengths and frame sizes.

G34 Geared Motor Unit:

Adaptable to PM62, PM55, and PM45 frames, highlighting gearbox versatility.
Performance tables for different motor configurations included.

Performance Features: Includes data for G34/PM55, GM120/PM45, and GM120/PM62 units, with tables showing gear ratios, output torque, speed, and power output for different motor speeds.

Key Specifications:

G34/PM55: Torque 7.1 to 19.5 Nm, speed 42 to 255 RPM, power 96 to 300 watts, gear ratios 16:1 to 35:1.
GM120/PM45: Torque 1.99 to 13.65 Nm, speed 65 to 600 RPM, power 65 to 195 watts, gear ratios 5:1 to 23:1.
GM120/PM62: Torque 3.5 to 29.5 Nm, speed 65 to 600 RPM, power 120 to 370 watts, gear ratios 5:1 to 23:1.

Contact Information: For further details, contact the Fracmo Sales Team.

Catalog excerpts

Design Features ● Voltage Range: 12 to 180 VDC. > Motor Range ● Output Torque Range: 0.1 to 2 Nm. ● Continuous Output Power Range: 50 to 500 Watts. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Speed Range 1000 to 4500 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. > Performance Features

Open the catalog to page 2

● Voltage Range: 12 to 180 VDC. > Geared Motor Unit ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 37 to 250 watts. ● Speed Range 55 to 450 RPM. ● Class F insulation. ● Long-life, low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 4 motor stack lengths. > Performance Features

Open the catalog to page 9

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 100 to 500 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 12

G34PM62 Engineering Drawing Geared Motor Unit MINMAXMINMAXMINMAXMINMAXMINMAX TORQUE Nm 5.813.47.317.49.221.513.232.316.542.0 SPEED RPM 5725057250572505725057250 POWER WATTS 100190130240160320240430320500 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 13

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 45 to 250 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 15

G34PM45 Engineering Drawing Geared Motor Unit MINMAXMINMAXMINMAXMINMAX TORQUE Nm 2.6648.65.211.47.617.4 SPEED RPM 57250572505725057250 POWER WATTS 45856513085170130250 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 16

Geared Motor Unit ● Voltage Range: 12 to 180 VDC. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 96 to 300 watts. ● Speed Range 57 to 250 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 13 motor stack lengths. ● Option of 3 motor Frame sizes. > Performance Features

Open the catalog to page 18

G34PM55 Engineering Drawing Geared Motor Unit MINMAXMINMAX TORQUE Nm 7.1168.619.5 SPEED RPM 4225542255 POWER WATTS 96250115300 > Performance Data Fracmo. Denis Ferranti Group Օ Caernarfon Road Bangor Օ Gwynedd LL57 4SP Օ United Kingdom > Denis Ferranti Meters Ltd. Registered in England & Wales. Registered Number: 219880 . Registered Office: Gorddinog, Llanfairfechan, Gwynedd LL33 0HS size="-1">

Open the catalog to page 19
