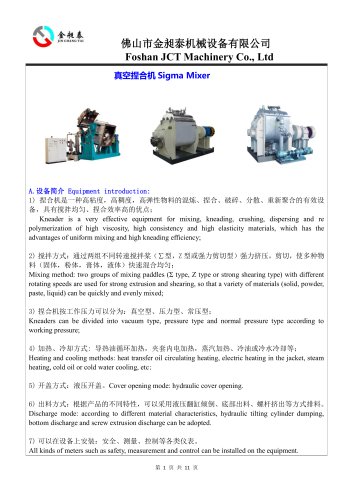

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd 真空捏合机 Sigma Mixer A.设备简介 Equipment introduction: 1) 捏合机是一种高粘度，高稠度，高弹性物料的混炼、捏合、破碎、分散、重新聚合的有效设 备，具有搅拌均匀、捏合效率高的优点； Kneader is a very effective equipment for mixing, kneading, crushing, dispersing and re polymerization of high viscosity, high consistency and high elasticity materials, which has the advantages of uniform mixing and high kneading efficiency; 2) 搅拌方式：通过两组不同转速搅拌桨（∑型，Z 型或强力剪切型）强力挤压，剪切，使多种物 料（固体，粉体，膏体，液体）快速混合均匀； Mixing method: two groups of mixing paddles (Σ type, Z type or strong shearing type) with different rotating speeds are used for strong extrusion and shearing, so that a variety of materials (solid, powder, paste, liquid) can be quickly and evenly mixed; 3) 捏合机按工作压力可以分为：真空型、压力型、常压型； Kneaders can be divided into vacuum type, pressure type and normal pressure type according to working pressure; 4) 加热、冷却方式: 导热油循环加热，夹套内电加热，蒸汽加热、冷油或冷水冷却等； Heating and cooling methods: heat transfer oil circulating heating, electric heating in the jacket, steam heating, cold oil or cold water cooling, et

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd 8) 制作材料：通常采用 SS316L,SS321,SS304 不锈钢或 Q235 碳钢，也可以采用特殊材料； Manufacturing materials: SS316L, SS321, SS304 stainless steel or Q235 carbon steel are usually used, or special materials can be used according to user requirements; 9) JCT 捏合机 JCT kneader ①搅拌轴采用独特密封结构--真空平衡箱结构，密封材料为 PTFE。可以有效防止磨损产生的填 料颗粒进入搅拌缸体内，确保物料的品质和纯度. The mixing shaft adopts a unique sealing structure - vacuum balance box structure, and the sealing material is PTFE. It can effectively prevent the filler particles generated by wear from entering the mixing cylinder, and ensure the quality...

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd 强力剪切型 Strong shear type C.技术参数 Technical parameter: 设备容积：5L-5000L，工作容积：60-70% 每批次处理能力: 3L-3000L 搅拌桨形状：∑型， Z 型 ，强力剪切型 出料方式：液压翻缸出料、螺杆挤出出料、底部物料泵抽料出料 驱动配置功率：1.1KW-400KW 加热方式：夹套内电加热，导热油循环加热，蒸汽加热。 冷却方式：冷油或冷水循环冷却； 设备材质：SS316L、SS321、SS304、Q235-B 碳钢、其它特殊材料。 工作压力：-0.1~0.6MPa. 工作温度：-20~300℃。 设备具体配置及技术参数根据产品性能设计！！ Equipment volume: 5-5000L, working volume: 60-70% Processing capacity of each batch: 3-3000L Stirring paddle shape: Σ type, Z type, strong shear type Discharging mode: hydraulic turning cylinder discharging, screw extrusion discharging, bottom material...

l-lfpmS Working temperature: -10°C~300°C; 2 Iff j£^3 working pressure: Inside the mixing tank: -0.1-0.2MPa:^;S(^] Inside jacket: 0-0.6MPa Mixing speed: fast paddle : 048rpm:tljJ^ slow paddle: 0-32rpmo <= The frequency converter regulates the mixing speedo

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd D.应用范围 Scope of application: 捏合机非常适应高粘度、超高粘度、高稠度、高弹性物质的混炼、捏合、剪切。真空捏合机 广泛应用于密封胶、高温硅橡胶、液态硅橡胶、BMC、CMC，胶浆、油墨、染料、医药、食品、阻 燃剂、水溶性聚磷酸铵、橡塑等行业。 The kneader is very suitable for mixing, kneading and shearing of substances with high viscosity, ultra-high viscosity, high consistency and high elasticity. Vacuum kneaders are widely used in sealant, high-temperature silicone rubber, liquid silicone rubber, BMC, CMC, glue, ink, dye, medicine, food, flame retardant, water-soluble ammonium polyphosphate, rubber and plastic industries. 热熔胶系列产品 Hot melt adhesive series...

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd BMC 团状模塑料系列产品 BMC Moulding Compound Series Products 阻燃剂系列产品 Flame retardant series products 密封胶泥系列产品 Sealing Mastic Series Products 水溶性聚磷酸铵（水溶肥）系列产品 Water soluble am

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd

Foshan JCT Machinery Co., Ltd F.S^^lK CE CE certification of kneader ^#T CE ^iEo The kneader series products manufactured by JCT have not only high requirements for product quality, but also strict requirements for safety protection, and have obtained CE certification o UDEM ATTESTATION CERTIFICATE COMPATIBILITY DIRECTIVES Technical file of ihc company mentioned below has been observed 200h/42/EC Machinery Directive and 2014/30/EU Electromagnetic Compatibility Dree live have been taken as references for these processes Company Name Company Address Room 312-313. bmicitnji B3. zone B. Hantian Technology...

佛山市金昶泰机械设备有限公司 Foshan JCT Machinery Co., Ltd G. 采购商如果需要具体，详细的设备配置和技术参数，可与我们联系.我们会安排专业的技术工 程师和销售人员团队与你们沟通、洽谈，并根据你们需要生产的具体产品和产量提供针对性、个 性化的设计方案。 If the purchaser needs to know the specific, detailed equipment configuration, technical parameters and supporting production equipment, you can contact us. We will arrange a team of professional technical
