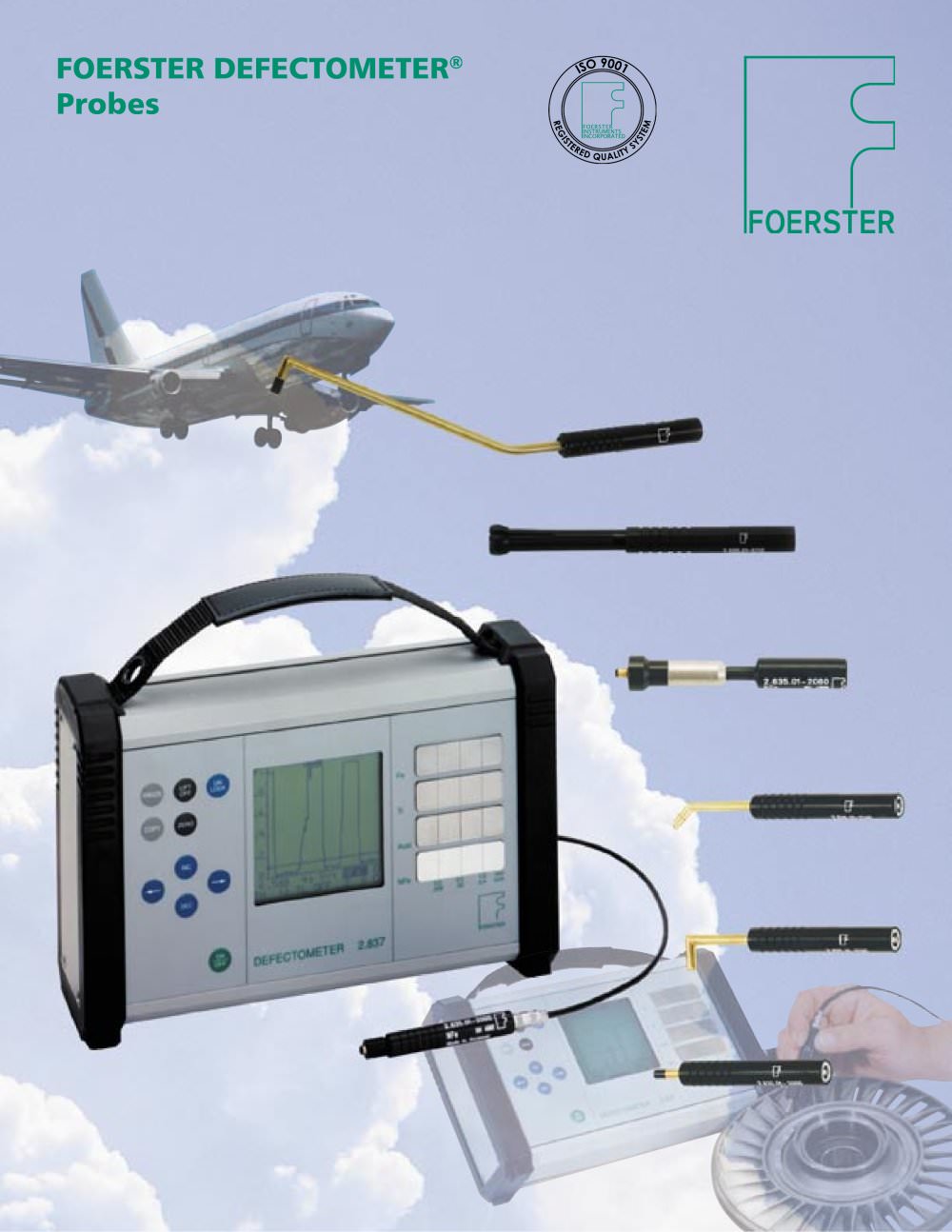

FOERSTER DEFECTOMETER® Probes

Foerster - Your partner for eddy current applications We have been pioneers in the field of eddy-current technology for non-destructive material testing for more than 50 years. Take advantage of our know-how! Our range of DEFECTOMETER® probes are completely oriented toward solving customer-specific tasks to optimize testing procedures and increase benefits for the user. Quality Foerster is committed without compromise to the manufacture of innovative, high-quality products for non-destructive materials testing. Among other things, the company has been certified in accordance with ISO 9001. This...

Militaerbrosch_deutsch engl_Pfade.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } Introduction Capabilities of the Defectometer The probes in this catalog were developed specifically for use with the Foerster DEFECTOMETER and designed to provide the good test results to which users of the DEFECTOMETER have become accustomed. The most important advantages of DEFECTOMETER...

Probe Selection Criteria DEFECTOMETER probes and operating test frequencies are optimized to the material that you want to test. Foerster offers probes for three conductivity ranges as follows: Design DEFECTOMETER probes are available in various standard designs. One or several dimensions of these standard probes can be specified as required to solve a particular testing task. It is also possible to develop and construct special probes for testing tasks that cannot be solved with the standard probes. probe the increased sensitivity (due to wear) will not affect the test results. It is not necessary...

Straight Probes Ordering Example for a shielded probe with custom dimension B = 50 mm to be used to test magnetic steel: Pencil probe, shielded Fe, Order No. 1293010, Part No. 2.835.99-3000, B = 50 mm. DEFECTOMETER probes 09/02 4 Unshielded / Ø A = 4.0 mm NFe Austenitic Fe Part No. Order No. Part No. Order No. Part No. Order No. Standard Ø A = 4mm B = 12.5mm 2.835.01-2500 1230000 2.835.01-4500 1230786 2.835.01-3500 1231006 Custom Ø A = 4mm B = ? (5 to 250mm) 2.835.99-2500 1292960 2.835.99-4500 1292978 2.835.99-3500 1292986 Shielded / Ø A = 4.0 mm NFe Austenitic Fe Part No. Order No. Part No....

Angled Probes Various designs of the angled pencil probe are available with the probe tip (containing the probe element) bent at an angle of 90, 100 or 135°. These probes permit access to hard-to-reach testing locations. Angled Pencil Probes Custom probes, with user-specified probe tip drop lengths, shaft lengths and shaft diameters are available upon request. 5 DEFECTOMETER probes 09/02 Angled Probe (135° tip) Angled Probe (90° tip) Angled Probe (100° tip) Angled Probe (90° tip with angled shaft)

Militaerbrosch_deutsch engl_Pfade.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } AngledProbes 90° Angled Probes with 25° angled shaft Unshielded / 0 A = 4.0 mm NFe Austenitic Fe Part No. Order No. Part No. Order No. Part No. Order No. Standard 0A = 4mm B = 10mm C = 100mm 0D = 4mm 2.835.01-2600 1228854 2.835.01-4600 1228900 2.835.01-3600 1228935 Custom 0A = 4mm B = ?...

7 DEFECTOMETER probes 09/02 Angled Probes Ordering Example for an NFe version with custom dimensions B, C and D: Pencil probe angled shielded NFe, Order No. 1466350, Part No. 2.835.99-2150, B = 18 mm, C = 120 mm, D = 4 mm. Shielded / Ø A = 2.5 mm Part No. Order No. Part No. Order No. Part No. Order No. NFe Austenitic Fe Standard A = 2.5mm B = 10mm C = 30mm ØD = 4mm 2.835.69-2130 0064297 Not Available Custom ØA = 2.5mm B = ? (5 to 25mm) C = ? (10 to 250mm) ØD = ? (2.5 or 4mm) 2.835.70-2130 0064300 Not Available 90° Angled Probes The 90° angled pencil probe permits access to hard-to-reach testing...

8 DEFECTOMETER probes 09/02 Angled Probes 100° Angled Probes The 100° angled pencil probe permits access to hard to reach locations of most critical component testing zones. When placing an order for a custom probe it is important to include the desired dimensions for B and C in addition to the Order Number and Part Number. Ordering Example for a version with custom dimensions B and C to test aluminum: Pencil probe angled shielded NFe, Order No. 1459597, Part No. 2.835.99-2145, B = 18 mm, C = 120 mm. Shielded / Ø A = 4.0 mm Part No. Order No. Part No. Order No. Part No. Order No. NFe Austenitic...

9 DEFECTOMETER probes 09/02 Angled Probes Ordering Example for a version with ØA = 4 mm and custom dimensions B and C to test carbon steel: Pencil probe angled shielded Fe, Order No. 1460820, Part No. 2.835.99-3140, B = 18 mm, C = 120 mm. 135° Angled Probes The 135° angled pencil probe permits access to hard to reach locations of most critical component testing zones. When placing an order for a custom probe, it is important to include the desired dimensions for B and C in addition to the Order Number and Part Number. Shielded / Ø A = 2.5 mm Part No. Order No. Part No. Order No. Part No. Order...

Militaerbrosch_deutsch engl_Pfade.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } AngledProbes Spcial Shielded Angled NFe Probes Shielded / 0 A = 2.5 mm NFe Austenitic Fe Part No. Order No. Part No. Order No. Part No. Order No. Special 0A = 2.5mm B = 11mm C = 52mm D = 4mm 2.835.07-6901 0017795 Not Available Special 0A = 2.5mm B = 11.5mm C = 50mm 0D = 2.5mm 2.835.78-6900...
