Foerster Instruments
MAGNATEST ECM leaflet

MAGNATEST ECM leaflet

Product catalog summary

Overview: The DEFECTOMAT® ECM 2.841 is a cost-effective eddy-current module designed for non-destructive flaw testing. It is a processor-controlled, compact unit that offers simple operation and sorts test pieces into two groups: acceptable (o.k.) and not acceptable (n.o.k.). The device features a one-dimensional LED bar graph display for measured values and includes a key-operated switch to lock operating functions.

Features:

Selectable test frequency via plug-in module, ranging from 1 kHz to 3 MHz.
Vector evaluation and optional phase-selective component evaluation.
Dynamic operation with optional absolute channel and drift compensation.
Compatibility with additional DEFECTOMAT® ECM, MAGNATEST® ECM, and STATOGRAPH ECM units.
PC interface for evaluation program eddyWin on MS WINDOWS®.
Easy integration into existing control cabinets with battery backup for parameter memory.

Applications:

Non-destructive testing for surface flaws using the eddy-current method as per DIN 51 140.
Testing of ferrous, austenitic, and non-ferrous materials, including round and sectional stock.
Use of absolute or differential eddy-current sensors with various coil types.

Mode of Operation: The test material is moved past the sensor system, which induces eddy currents in the material. These currents are detected by the coils, indicating flaws with high sensitivity. The system can detect holes, pits, transverse flaws, and longitudinal flaws.

Construction: The standard DEFECTOMAT ECM includes a frequency module, mains cable, sensor cable, and sensor system. It can be expanded with additional frequency modules, phase adjusters, and power amplifiers.

Technical Data:

Test frequency options: 1 kHz to 3 MHz.
Sensor types: Difference or absolute coils.
High-pass and low-pass filters available.
Microprocessor-controlled with self-test capabilities.
Operating temperature: +5° to +40°C.
Enclosure protection: IP 30 or IP 54 with housing.

Additional Information: For specific applications, the DEFECTOMAT ECM can be configured with options like fine wire testing and power amplifiers. The system supports remote control and extended display via the eddyWin PC program.

Catalog excerpts

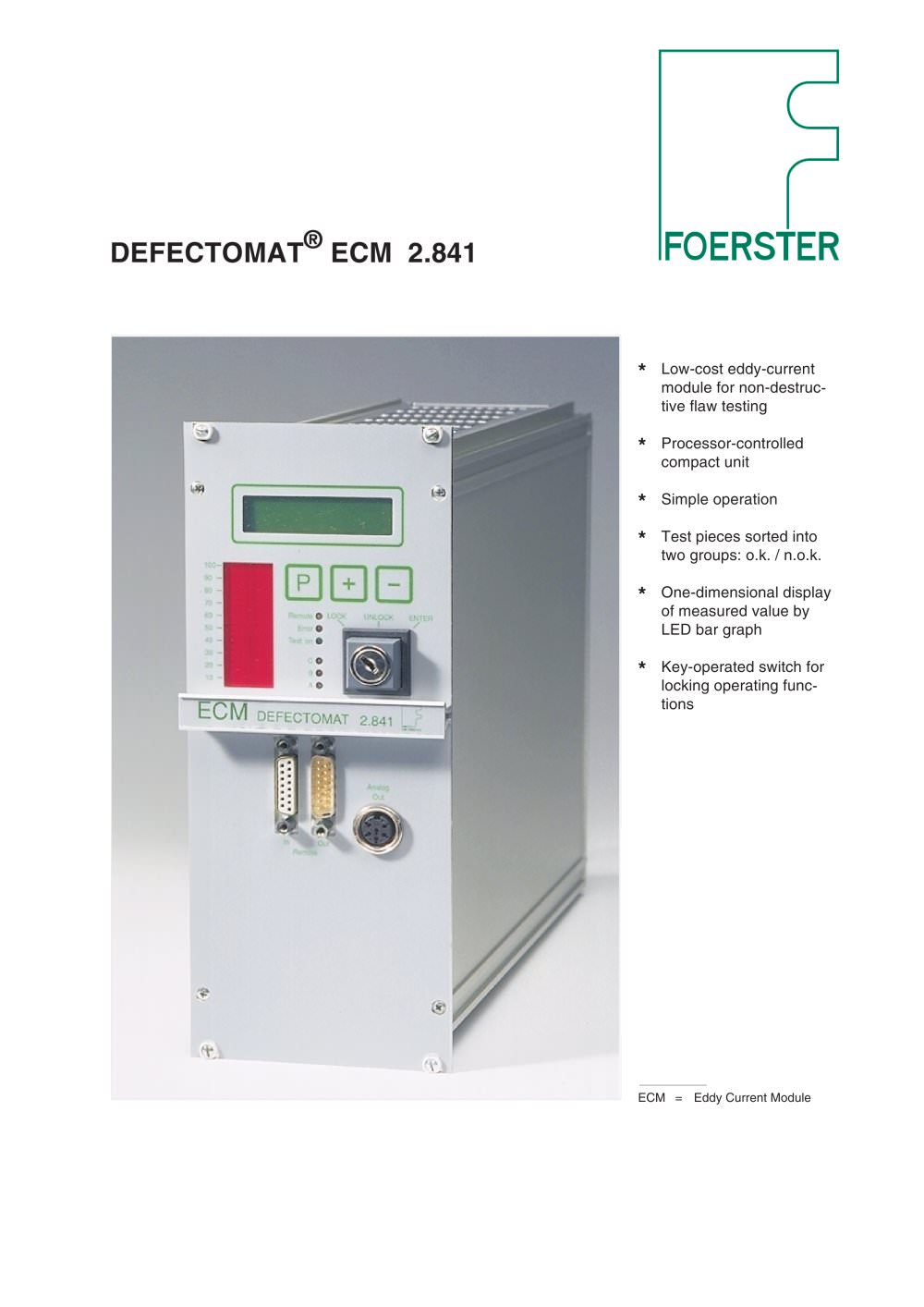

DEFECTOMAT® ECM 2.841 * Low-cost eddy-current module for non-destructive flaw testing * Processor-controlled compact unit * Simple operation * Test pieces sorted into two groups: o.k. / n.o.k. * One-dimensional display of measured value by LED bar graph * Key-operated switch for locking operating functions ECM = Eddy Current Module

Open the catalog to page 1

Features Test frequency selected by plug-in module Frequency range 1 kHz to 3 MHz Vector evaluation Phase-selective component evaluation (optional) Dynamic operation Absolute channel (optional) Drift compensation included Fine wire testing (optional) Drift compensation included Can be combined with additional DEFECTOMAT® ECM, MAGNATEST® ECM and/or STATOGRAPH ECM PC interface to evaluation program eddyWin running with MS WINDOWS® Simple integration into existing control cabinets Physically separated interface for the most important control signals for the testing line Mains failure protection...

Open the catalog to page 2

Construction In its standard configuration, the DEFECTOMAT ECM consists of the components: DEFECTOMAT ECM 2.841 Frequency module for one fixed frequency Mains cable, sensor cable, connecting cable Sensor system The system can be adapted in steps to the respective test situation by adding further components: Frequency module for up to 8 selectable frequencies Phase adjuster for phase-selective component evaluation Absolute channel, drift compensation included DEFECTOMAT ECM/LV power amplifier Housing 6 HU Configuration adapter Combination with additional DEFECTOMAT ECM, MAGNATEST ECM and/or STATOGRAPH...

Open the catalog to page 3

Phase adjuster option The DEFECTOMAT ECM can operate in „vector evaluation“ mode or optionally in „phase-selective component evaluation“ mode. The plug-in module PHASE ADJUSTER must be installed in the ECMfor this purpose. Please specify when ordering. Absolute channel option The DEFECTOMAT ECM can be equipped with an absolute channel for specific applications. Drift compensation of zero point signal is included (AUTOTRACK).Please specify when ordering. DEFECTOMAT ECM/LV Power amplifier for the DEFECTOMAT ECM 2.841 for specific LF applications with high power requirement Connection socket to...

Open the catalog to page 4

Technical data Test frequency 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz selectable by plug-in module or variable frequency module 8 F: 1...3000 KHz 4 F: 1, 2, 5, 10 MHz Sensor Difference or absolute coils High-pass filter, low-pass filter 1 Hz to 16 kHz, 25 steps Testing Dynamic operation Evaluation mode Vector evaluation Phase-selective component evaluation (optional) Absolute channel (optional) Microprocessor for sequence controller, operator prompting, self-test etc. Permitted supply voltage 115/230 V +10 %, -15 %, 50-60 Hz, 45 VA Operating temperature +5° to +40 °C Enclosure...

Open the catalog to page 5

Product information Leaflets ECM- SYSTEM and PC software eddyWin 107 593 4 MAGNATEST ECM 3.621 107 513 6 STATOGRAPH ECM 6.421 107 521 7 Sensor system S 2.869 136 057 4 LMD test coil 2.891.30 144 705 0 Weld-seam probe 2.895.01-0602 145 005 0 Application infos Eddy Current Crack Testing Vehicle-Motor Valve Tappet 137 125 8 Eddy Current Testing Schlitzrohr-Erkennung 137 935 6 Needle Bearings 139 394 4 Eddy Current Flaw Testing Weld-seam in Saw Belt 139 396 0 Copper Tube 146 739 5 Lamp Wire 158 509 6 Should you have any special problems please contact: INSTITUT DR. FOERSTER GmbH & Co. KG Postfach...

Open the catalog to page 6
