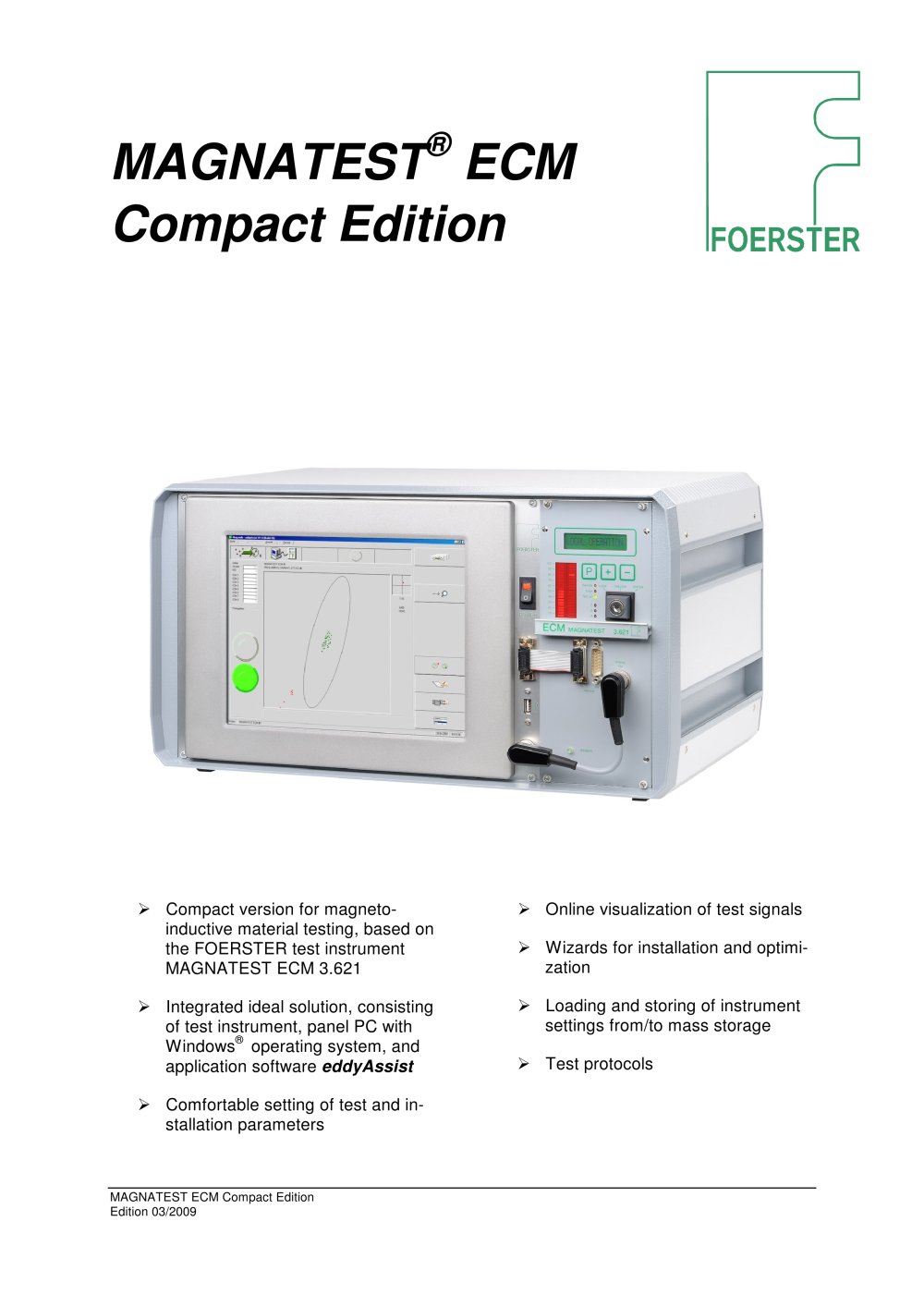

MAGNATEST ECM Compact Edition Edition 03/2009 MAGNATEST® ECM Compact Edition Compact version for magnetoinductive material testing, based on the FOERSTER test instrument MAGNATEST ECM 3.621 Integrated ideal solution, consisting of test instrument, panel PC with Windows® operating system, and application software eddyAssist Comfortable setting of test and installation parameters Online visualization of test signals Wizards for installation and optimization Loading and storing of instrument settings from/to mass storage Test protocols

2 MAGNATEST ECM Compact Edition Edition 03/2009 Application The MAGNATEST ECM Compact Edition is a very compact and attractivepriced solution for magneto-inductive materials testing. The system concentrates all necessary components in one single, industry-proven desktop housing: test instrument, panel PC with touch screen and Windows® operating system, application software eddyAssist, all required adapters and connection cables. The complete system is delivered readily installed and configured. Solely the test coil and test cable have to be ordered and connected separately. The PC software...

MAGNATEST ECM Compact Edition 3 Edition 03/2009 Windows Assistants For conducting more complex operations eddyAssist uses the concept of wizards, which is well-known from many other Windows applications. In a dialog the user is guided step-by-step through the individual stages and thereby intuitively led to his goal. A very special feature of eddyAssist in this context are the optimization wizards. They help the operator to optimize the instruments parameters to a given application by use of calibration specimen. In this way two essential goals are achieved: (a) simple, comfortable, and...

4 MAGNATEST ECM Compact Edition Edition 03/2009 Components The MAGNATEST ECM Compact Edition system consists of the following components: test instrument MAGNATEST ECM 3.621 panel PC with touch screen Windows® operating system application software eddyAssist all necessary adapters, interfaces, and connection cables desktop housing 6HU Coil(s) and coil cable(s) suitable for the particular application have to be ordered separately. The system offers two available USB ports (one each, on front and at the backside) which can be used to connect an external keyboard/mouse, a printer, a memory...

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } Product Information Leaflets MAGNATEST ECM 3.621 T07 513 6 MAGNATEST Transmitter System 3.625 137 992 5 PC-Software eddyAssis! | Ug 266 0 MAGNATEST ECM Compact Edition Edition 032009 5

6 MAGNATEST ECM Compact Edition Edition 03/2009 Should you have any special problems please contact: INSTITUT DR. FOERSTER GmbH & Co. KG Joseph-von-Fraunhofer-Straße 15 D-44227 Dortmund Phone +49 (231) 975049-0 Fax +49 (231) 975049-8 ct@foerstergroup.de http://www.foerstergroup.de Information and illustration may be subject to change Order no. 188 351 8 Edition 03/2009 b Author SIE/CT/IFR ® Registered trade-mark © Copyright Institut Dr. Foerster GmbH & Co. KG Ordering Instructions Designation Part No. Order No. MAGNATEST ECM EDDYASSIST, DESKTOP HOUSING 3.621.91 188 326 7 UPGRADE KIT PC AND...
