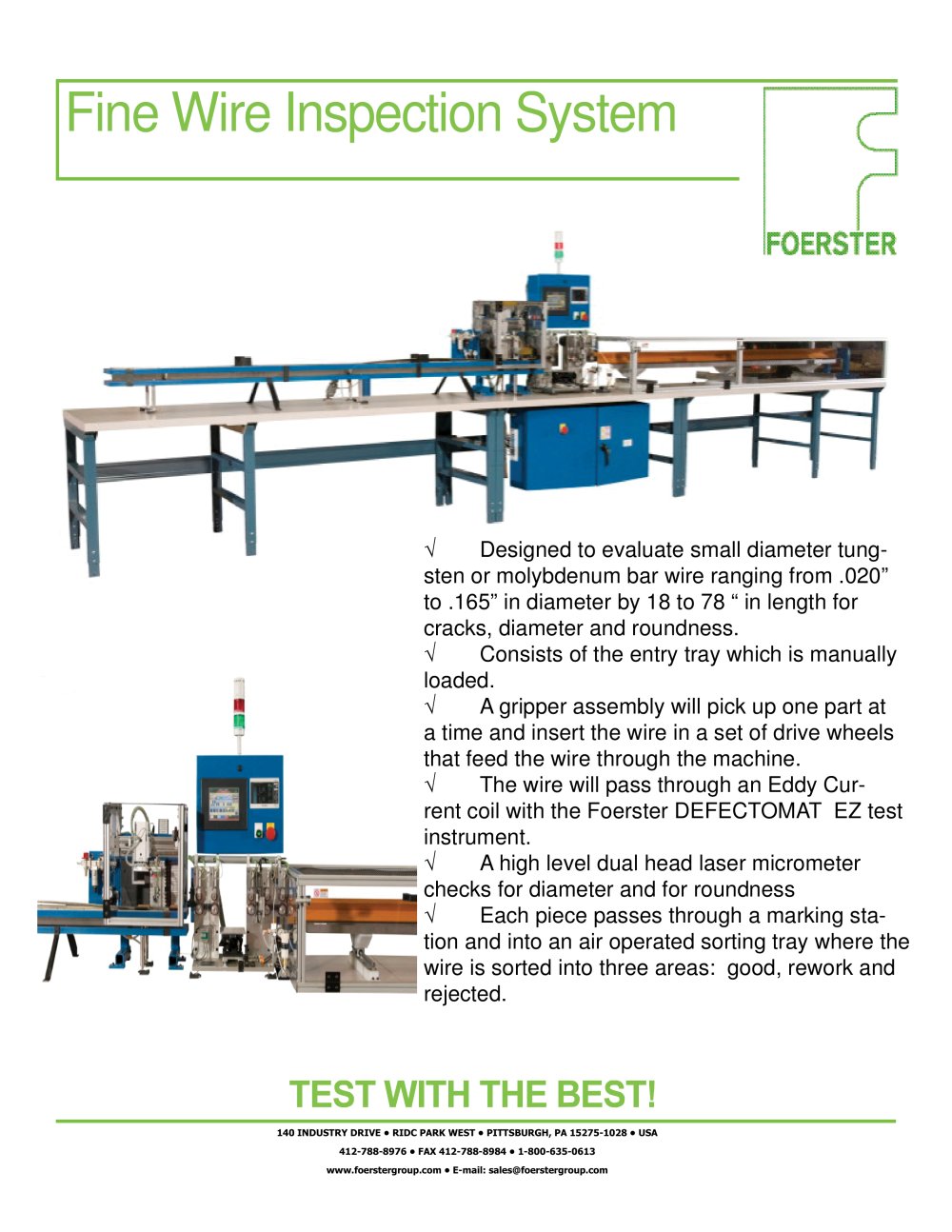

FineWire Inspection System 140 INDUSTRY DRIVE • RIDC PARK WEST • PITTSBURGH, PA 15275-1028 • USA 412-788-8976 • FAX 412-788-8984 • 1-800-635-0613 www.foerstergroup.com • E-mail: sales@foerstergroup.com Designed to evaluate small diameter tung- ã sten or molybdenum bar wire ranging from .020” to .165” in diameter by 18 to 78 “ in length for cracks, diameter and roundness. ã Consists of the entry tray which is manually loaded. ã A gripper assembly will pick up one part at a time and insert the wire in a set of drive wheels that feed the wire through the machine. ã The wire will pass through an Eddy Current coil with the Foerster DEFECTOMAT EZ test instrument. A high level dual head laser micrometer ã checks for diameter and for roundness Each piece passes through a marking sta- ã tion and into an air operated sorting tray where the wire is sorted into three areas: good, rework and rejected.
