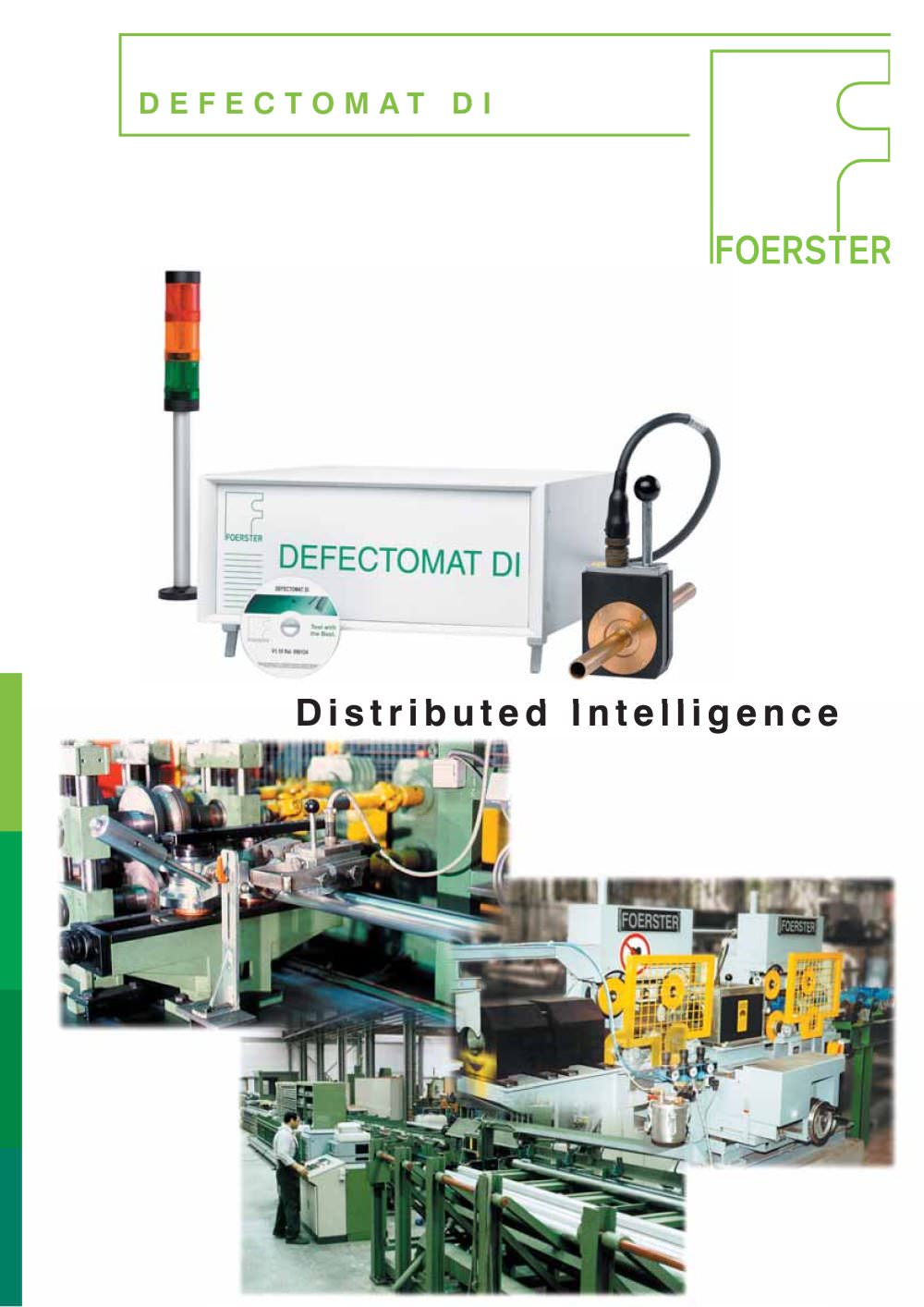

DEFECTOMAT DI brochure

DEFECTOMAT DI brochure
4Pages

Catalog excerpts

2 D E F E C T O M A T D I – M u l t i - l i n e s u p p o r t f o r e d d y - c u r r e n t te s t ing DEFECTOMAT DI based on the compact eddy-current tester DEFECTOMAT CI, which is worldwide successfully in use. New is the stringent separation of the test unit (electronics for eddy-current testing and interface to the testing line) and the operation unit (electronics for signal display and storage of test results). This action enables the functionality of multi-line support from a single operation unit. The field of application is diversified and varies from the 1-channel evaluation for...

Open the catalog to page 2

3 In tube welding lines, using the differential and absolute channels to monitor the weld quality with weld probes or segment coils. The optional absolute channel detects open seam tubes. In endless wire lines, e.g. drawing lines or rewinders, the section-specific evaluation of defect signals over selectable limit values produces three quality statements. For stainless steel wires with small diameter the sensor system Minicoil is recommended. The test coil guides itself on the wire and is therefore able to balance variation in the tensile strength and direction. In tube and bar stock...

Open the catalog to page 3

Institut Dr. Foerster GmbH & Co. KG Division TS Semi-finished Product Testing In Laisen 70 72766 REUTLINGEN GERMANY Phone +49 7121 140-270 Fax +49 7121 140-459 ts@foerstergroup.de www.foerstergroup.de Printed in Germany 09/2008 • Order No. 1916190 • Edition 09/2008 ® Registered Trademark • © Copyright Institut Dr. Foerster GmbH & Co. KG • Subject to modification
