Summary of Pitch and Belt Length Specifications

This document provides detailed specifications for various types of belts characterized by their pitch, belt length in millimeters, and the corresponding number of teeth. The data is organized primarily by belt type and pitch size, including single-sided and double-sided belts.

1. Belt Types and Pitch Categories

• T5 Pitch Belts: These belts have pitches of 5 mm and are listed with lengths ranging from 165 mm to 575 mm, with corresponding teeth counts from 33 to 115.
• T10 Pitch Belts: These belts have pitches of 10 mm, with lengths from 260 mm up to 4780 mm and teeth counts from 26 to 478.
• Double Sided Belts: These include DT5 and DT10 pitch belts, which are double-sided versions of the T5 and T10 belts respectively. Lengths and teeth counts vary accordingly, for example, DT5 belts range from 260 mm (52 teeth) to 1325 mm (265 teeth), and DT10 belts range from 260 mm (26 teeth) to 1880 mm (188 teeth).

2. Key Parameters

• Pitch: The distance between teeth, specified as 5 mm (T5) or 10 mm (T10).
• Belt Length: Provided in millimeters, indicating the total length of the belt.
• Number of Teeth: Corresponds to the belt length divided by the pitch, indicating the total count of teeth on the belt.

3. Data Organization and Usage

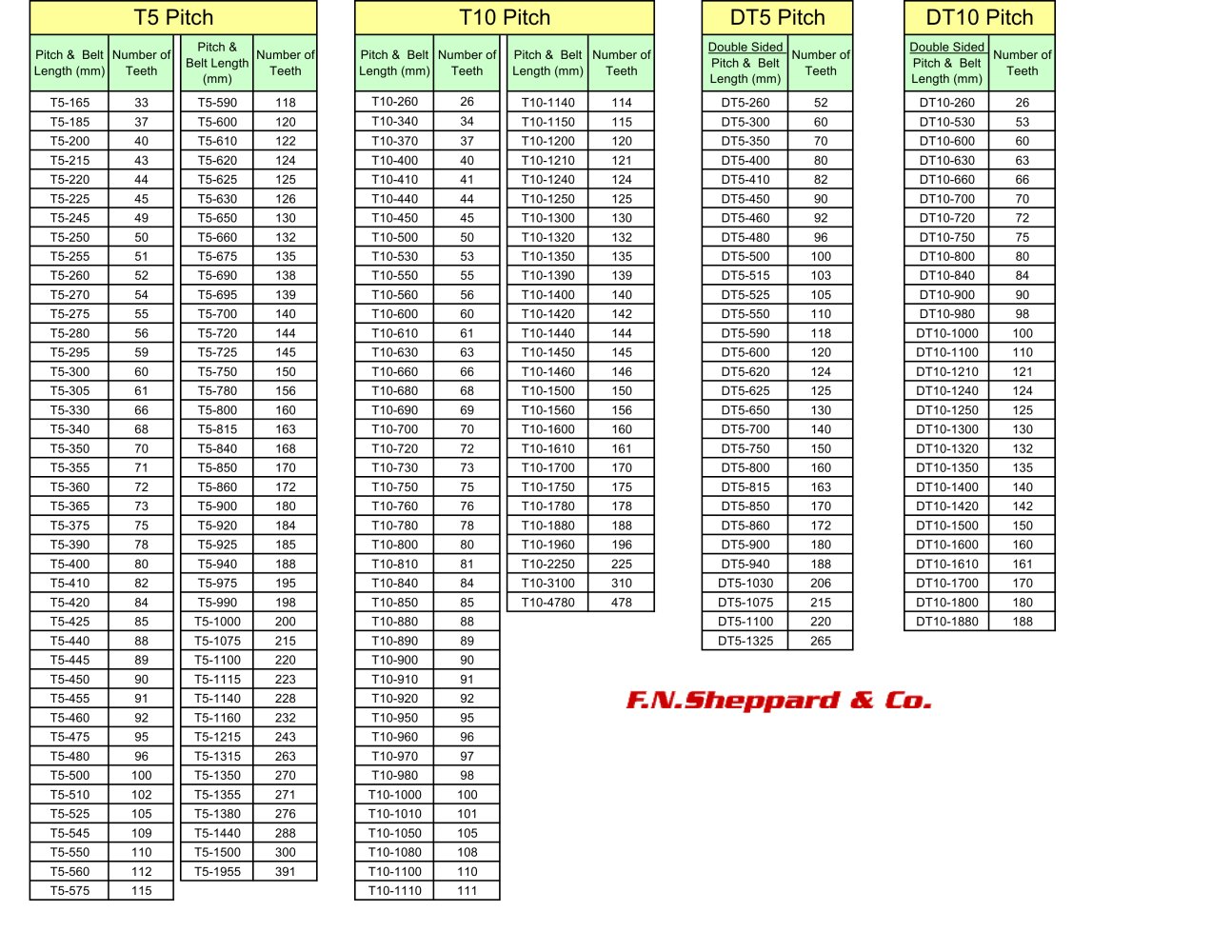

The data is tabulated to allow easy cross-reference between belt length and number of teeth for each pitch category. This facilitates selection of appropriate belts for mechanical systems requiring precise tooth engagement and length specifications.

4. Practical Recommendations

• Ensure selection of belt pitch matches the pulley system to maintain proper engagement and avoid slippage.
• Choose belt length and teeth count according to the mechanical design requirements, considering tension and load distribution.
• Double-sided belts (DT5, DT10) are suitable for applications requiring engagement on both sides, enhancing power transmission capabilities.

5. Limitations and Considerations

• The document does not specify material properties or maximum load ratings, which should be considered separately.
• Installation and maintenance procedures are not covered and should be referenced from manufacturer guidelines.

Overall, this specification table serves as a critical reference for engineers and technicians in selecting the correct belt size and type based on pitch and length requirements for power transmission systems.
