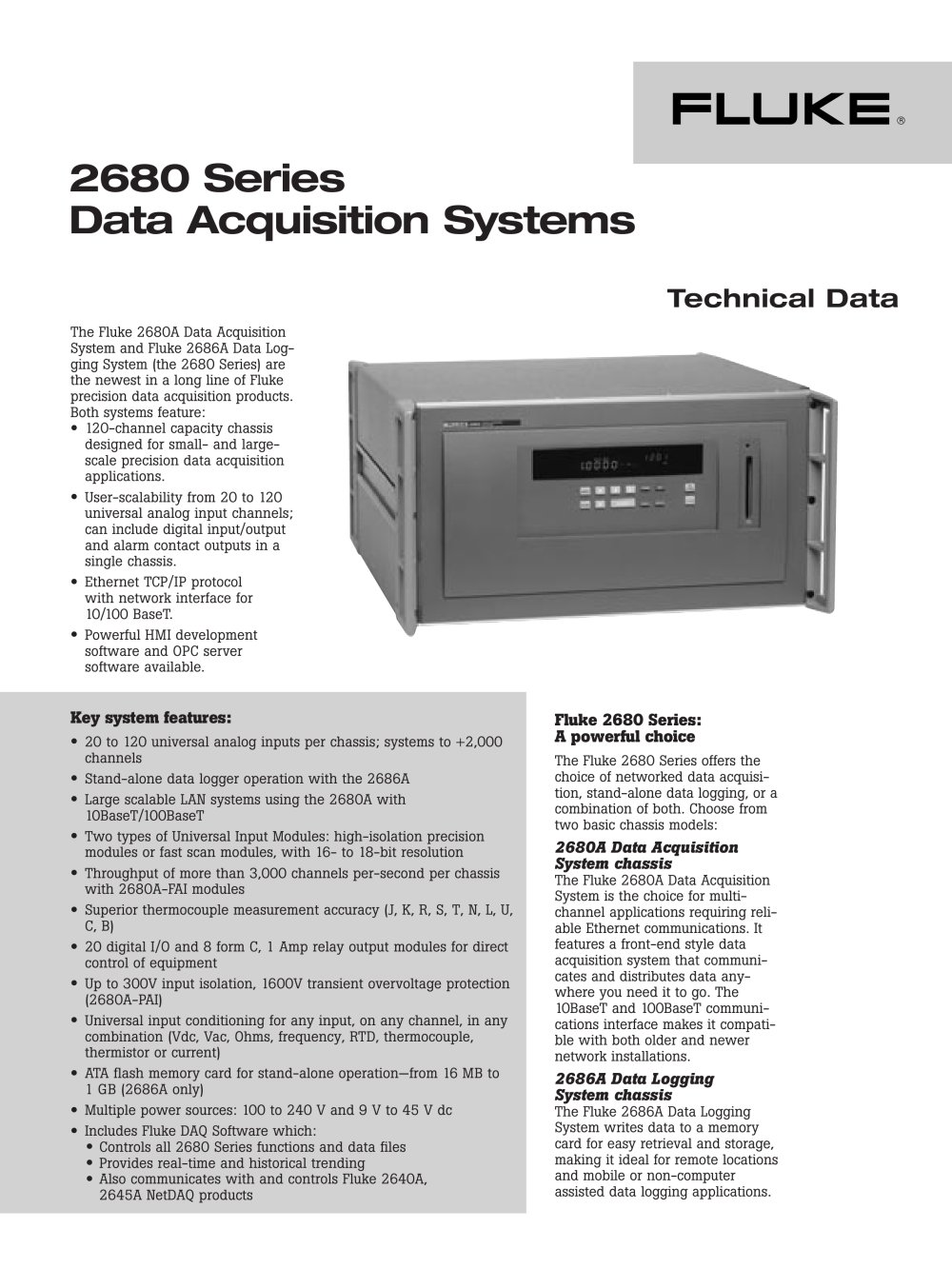

2680 Series Data Acquisition Systems Technical Data The Fluke 2680A Data Acquisition System and Fluke 2686A Data Logging System (the 2680 Series) are the newest in a long line of Fluke precision data acquisition products. Both systems feature: • 120-channel capacity chassis designed for small- and largescale precision data acquisition applications. • User-scalability from 20 to 120 universal analog input channels; can include digital input/output and alarm contact outputs in a single chassis. • Ethernet TCP/IP protocol with network interface for 10/100 BaseT. • Powerful HMI development software and OPC server software available. Key system features: • 20 to 120 universal analog inputs per chassis; systems to +2,000 channels • Stand-alone data logger operation with the 2686A • Large scalable LAN systems using the 2680A with 10BaseT/100BaseT • Two types of Universal Input Modules: high-isolation precision modules or fast scan modules, with 16- to 18-bit resolution • Throughput of more than 3,000 channels per-second per chassis with 2680A-FAI modules • Superior thermocouple measurement accuracy (J, K, R, S, T, N, L, U, C, B) • 20 digital I/O and 8 form C, 1 Amp relay output modules for direct control of equipment • Up to 300V input isolation, 1600V transient overvoltage protection (2680A-PAI) • Universal input conditioning for any input, on any channel, in any combination (Vdc, Vac, Ohms, frequency, RTD, thermocouple, thermistor or current) • ATA flash memory card for stand-alone operation—from 16 MB to 1 GB (2686A only) • Multiple power sources: 100 to 240 V and 9 V to 45 V dc • Includes Fluke DAQ Software which: • Controls all 2680 Series functions and data files • Provides real-time and historical trending • Also communicates with and controls Fluke 2640A, 2645A NetDAQ products Fluke 2680 Series: A powerful choice The Fluke 2680 Series offers the choice of networked data acquisition, stand-alone data logging, or a combination of both. Choose from two basic chassis models: 2680A Data Acquisition System chassis The Fluke 2680A Data Acquisition System is the choice for multichannel applications requiring reliable Ethernet communications. It features a front-end style data acquisition system that communicates and distributes data anywhere you need it to go. The 10BaseT and 100BaseT communications interface makes it compatible with both older and newer network installations. 2686A Data Logging System chassis The Fluke 2686A Data Logging System writes data to a memory card for easy retrieval and storage, making it ideal for remote locations and mobile or non-computer assisted data logging applications.

2686A Active Channels and Memory Card Capacity (Scans) Memory Card/ Active Channels 20 ch 40 ch 60 ch 80 ch 100 ch 120 ch 16 MB 100,548 66,765 50,074 40,059 33,382 28,613 128 MB 800,000 528,000 400,000 320,000 264,000 224,000 256 MB 1.6 M 1.056 M 800,000 640,000 528,000 448,000 512 MB 3.2 M 2.112 M 1.6 M 1.28 M 1.056 M 896,000 1 GB 6.2 M 4.224 M 3.2 M 2.56 M 2.112 M 1.792 M 2 Fluke Corporation 2680A Series Data Acquisition Systems 2680A-FAI: The speed to capture dynamic process changes The Fluke 2680A-FAI (Fast Analog Input) is a perfect choice when you need a lot of information in a hurry...

2680A Series Data Acquisition Systems Fluke Corporation 3 2680A-DIO: Digital I/O and relay outputs add control For data acquisition systems that also require control functionality, the Fluke 2680A-DIO digital I/O and relay output module provides 20 digital I/O and eight hard-contact 1 Amp form-C relays. This equips each chassis to respond to a wide range of alarm or control situations. The 2680A-DIO also includes an up/down counter with preset start count capability, so you don’t need to begin all counts at zero. 2680A-180: Universal Input Module requires no external signal conditioning...

4 Fluke Corporation Fluke 2680 Series Data Acquisition Systems Key features of this powerful development package include: • An extensive graphics library • Drag & drop programming • More than 140 device drivers • OPC client/server compliance • Support for DNA, OPC, DDE, OBDC, XML, SOAP and Active X Fluke 2680A-OPC: Create custom applications using OLE for Process Control Optional Fluke 2680A-OPC software gives you the freedom to integrate your 2680 Series into any OPC-compliant application. Create custom applications using 2680A-OPC software and just about any popular industrial software...

6 Fluke Corporation Fluke 2680 Series Data Acquisition Systems 1 Total instrument accuracy for the indicated time period and ambient temperature range. Includes A/D errors, linearization conformity, initial calibration error, isothermality errors, reference junction conformity and power line voltage effects within the range from 100VAC to 264VAC. 2 Sine wave inputs >2000 counts (slow), >200 counts (fast). Accuracies for crest factor 2.0. 3 For two-wire measurements add 5Ù to basic accuracy (does not include leadwire resistances). 4 For two-wire measurements add 700-1000Ù to basic accuracy...

Fluke 2680 Series Data Acquisition Systems Fluke Corporation 7 2680A-DIO Totalizing input Pre-settable starting count up/down counter DC coupled, non-isolated, max +30V, min -4V Max count: 4,294,967,295 Minimum signal: 2V peak Threshold: 1.4V Rate: 0-5 kHz (debounce off) Hysteresis: 500 mV Input debouncing: None or 1.66 ms Digital inputs/outputs: 20 Threshold: 1.4V Hysteresis: 500 mV Maximum input: +30V, min -4V; non-isolated Logical “zero” output: 0.8V max |out = -1.0 mA (1 LSTTL load equivalent) 1.8V max |out = -20 mA 3.25V max |out = -50 mA Logical “one” output: Output voltage depends on...
