8845A/8846A 6.5 Digit Precision Multimeters
1Pages

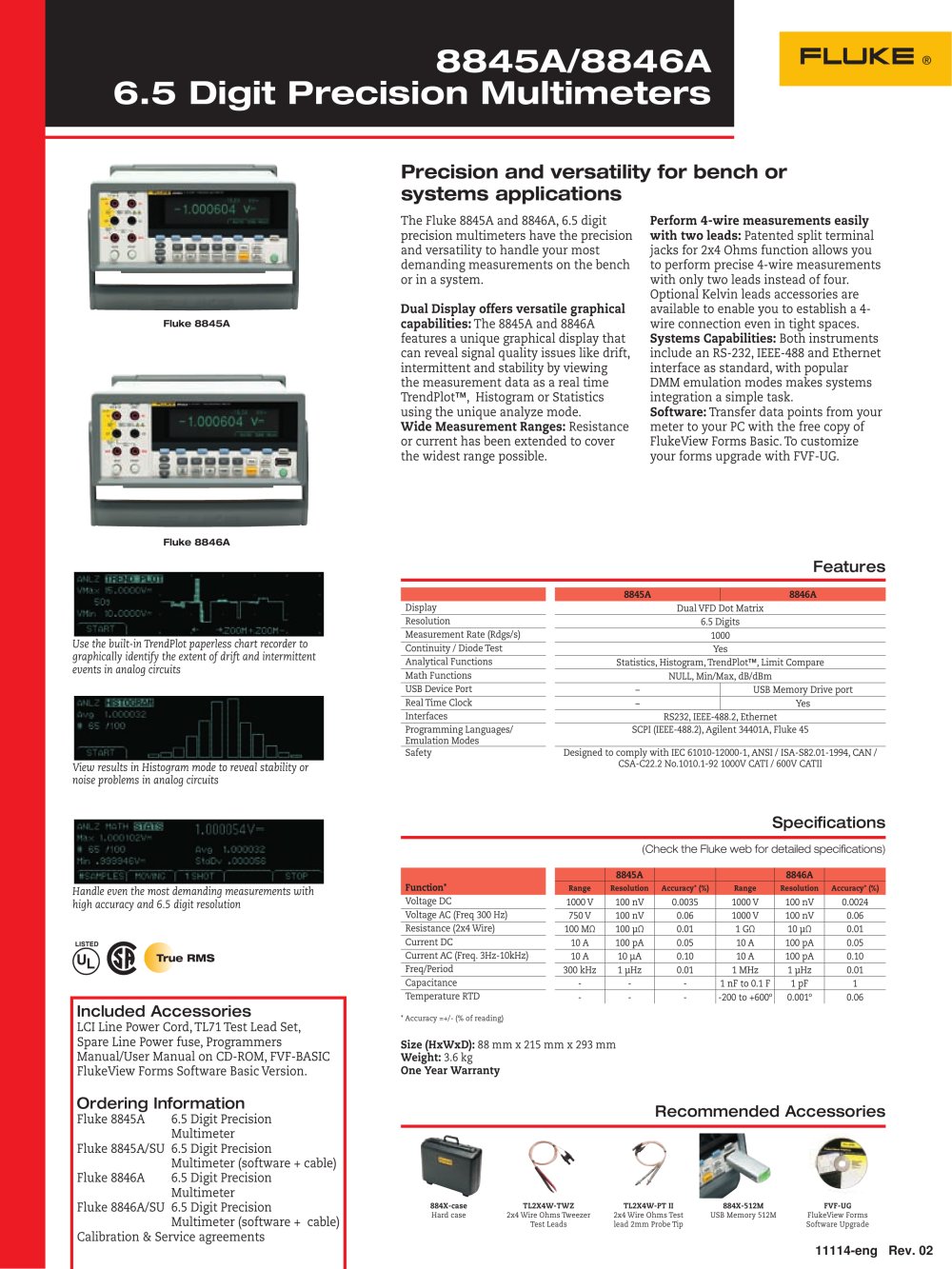

11114-eng Rev. 02 8845A/8846A 6.5 Digit Precision Multimeters Included Accessories LCI Line Power Cord, TL71 Test Lead Set, Spare Line Power fuse, Programmers Manual/User Manual on CD-ROM, FVF-BASIC FlukeView Forms Software Basic Version. Ordering Information Fluke 8845A 6.5 Digit Precision Multimeter Fluke 8845A/SU 6.5 Digit Precision Multimeter (software + cable) Fluke 8846A 6.5 Digit Precision Multimeter Fluke 8846A/SU 6.5 Digit Precision Multimeter (software + cable) Calibration & Service agreements The Fluke 8845A and 8846A, 6.5 digit precision multimeters have the precision and versatility to handle your most demanding measurements on the bench or in a system. Dual Display offers versatile graphical capabilities: The 8845A and 8846A features a unique graphical display that can reveal signal quality issues like drift, intermittent and stability by viewing the measurement data as a real time TrendPlot™, Histogram or Statistics using the unique analyze mode. Wide Measurement Ranges: Resistance or current has been extended to cover the widest range possible. Perform 4-wire measurements easily with two leads: Patented split terminal jacks for 2x4 Ohms function allows you to perform precise 4-wire measurements with only two leads instead of four. Optional Kelvin leads accessories are available to enable you to establish a 4- wire connection even in tight spaces. Systems Capabilities: Both instruments include an RS-232, IEEE-488 and Ethernet interface as standard, with popular DMM emulation modes makes systems integration a simple task. Software: Transfer data points from your meter to your PC with the free copy of FlukeView Forms Basic. To customize your forms upgrade with FVF-UG. * Accuracy =+/- (% of reading) 884X-case Hard case TL2X4W-TWZ 2x4 Wire Ohms Tweezer Test Leads TL2X4W-PT II 2x4 Wire Ohms Test lead 2mm Probe Tip 884X-512M USB Memory 512M FVF-UG FlukeView Forms Software Upgrade Size (HxWxD): 88 mm x 215 mm x 293 mm Weight: 3.6 kg One Year Warranty Features Specifications Fluke 8846A (Check the Fluke web for detailed specifications) Recommended Accessories Fluke 8845A 8845A 8846A Function* Range Resolution Accuracy* (%) Range Resolution Accuracy* (%) Voltage DC 1000 V 100 nV 0.0035 1000 V 100 nV 0.0024 Voltage AC (Freq 300 Hz) 750 V 100 nV 0.06 1000 V 100 nV 0.06 Resistance (2x4 Wire) 100 MÙ 100 ìÙ 0.01 1 GÙ 10 ìÙ 0.01 Current DC 10 A 100 pA 0.05 10 A 100 pA 0.05 Current AC (Freq. 3Hz-10kHz) 10 A 10 ìA 0.10 10 A 100 pA 0.10 Freq/Period 300 kHz 1 ìHz 0.01 1 MHz 1 ìHz 0.01 Capacitance - - - 1 nF to 0.1 F 1 pF 1 Temperature RTD - - - -200 to +600º 0.001º 0.06 True RMS 8845A 8846A Display Dual VFD Dot Matrix Resolution 6.5 Digits Measurement Rate (Rdgs/s) 1000 Continuity / Diode Test Yes Analytical Functions Statistics, Histogram, TrendPlot™, Limit Compare Math Functions NULL, Min/Max, dB/dBm USB Device Port – USB Memory Drive port Real Time Clock – Yes Interfaces RS232, IEEE-488.2, Ethernet Programming Languages/ Emulation Modes SCPI (IEEE-488.2), Agilent 34401A, Fluke 45 Safety Designed to comply with IEC 61010-12000-1, ANSI / ISA-S82.01-1994, CAN / CSA-C22.2 No.1010.1-92 1000V CATI / 600V CATII Precision and versatility for bench or systems applications Handle even the most demanding measurements with high accuracy and 6.5 digit resolution View results in Histogram mode to reveal stability or noise problems in analog circuits Use the built-in TrendPlot paperless chart recorder to graphically identify the extent of drift and intermittent events in analog circuits
