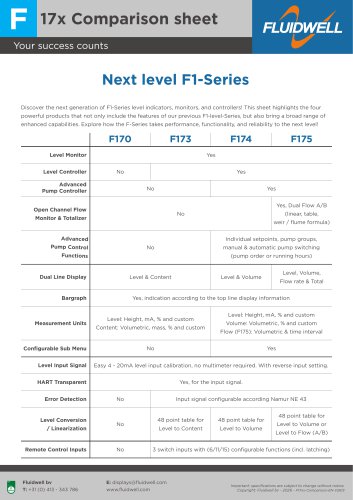

Next Level F1-Series Comparison sheet

Product catalog summary

Overview: The document provides a comparison of the next generation F1-Series level indicators, monitors, and controllers, highlighting four models: F170, F173, F174, and F175. These models offer enhanced capabilities over previous versions, focusing on performance, functionality, and reliability.

Specifications:

Level Monitor: Available in all models.
Level Controller: Available in F173, F174, and F175.
Advanced Pump Controller: Available in F173, F174, and F175 with individual setpoints and pump control functions.
Open Channel Flow Monitor & Totalizer: Available in F175 with dual flow A/B capabilities.
Display: Dual line display with bargraph indication.
Measurement Units: Configurable for level, content, volume, and flow.
Level Input Signal: Easy calibration with 4-20mA input, HART transparent.
Error Detection: Configurable according to Namur NE 43.
Remote Control Inputs: Available in F173, F174, and F175 with configurable functions.

Analog and Digital Outputs:

Analog Output Function: Retransmission according to level, content, or input signal.
Error Transmission: Configurable output signal.
Digital Output Function: Includes alarms and control inputs, with additional pump control in F173, F174, and F175.
Alarm Values: Configurable with delay and silence functions.
Hysteresis: Configurable for balanced, unbalanced, and absolute setpoints.

Power Supply and Communication:

Power Supply: Options for isolated power supply and mains supply with regulated sensor supply.
Communication: Modbus RS485, RS232, or USB-C port available for remote configuration.
Intrinsically Safe: Optional ATEX and IECEx certification available.

Important Note: Specifications are subject to change without notice.

Catalog excerpts

Important: specifications are subject to change without notice. Copyright: Fluidwell bv - 2026 - F17xx-Comparison-EN-V2613

Open the catalog to page 1

Important: specifications are subject to change without notice. Copyright: Fluidwell bv - 2026 - F17xx-Comparison-EN-V2616

Open the catalog to page 2
