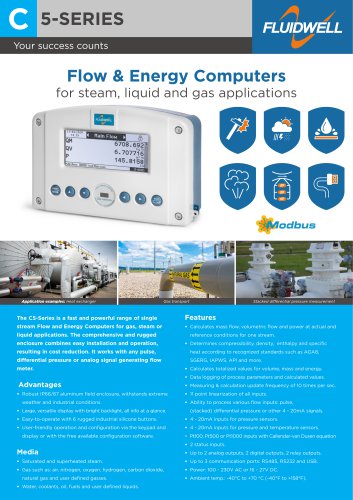

Application examples: Heat exchanger Stacked differential pressure measurement The C5-Series is a fast and powerful range of single stream Flow and Energy Computers for gas, steam or liquid applications. The comprehensive and rugged enclosure combines easy installation and operation, resulting in cost reduction. It works with any pulse, differential pressure or analog signal generating flow meter. • Robust IP66/67 aluminum field enclosure, withstands extreme weather and industrial conditions. • Large, versatile display with bright backlight, all info at a glance. • Easy-to-operate with 6 rugged industrial silicone buttons. • User-friendly operation and configuration via the keypad and display or with the free available configuration software. • Saturated and superheated steam. • Gas such as: air, nitrogen, oxygen, hydrogen, carbon dioxide, natural gas and user defined gasses. • Calculates mass flow, volumetric flow and power at actual and reference conditions for one stream. • Determines compressibility, density, enthalpy and specific heat according to recognized standards such as AGA8, SGERG, IAPWS, API and more. • Calculates totalized values for volume, mass and energy. • Data logging of process parameters and calculated values. • Measuring & calculation update frequency of 10 times per sec. • 11 point linearization of all inputs. • Ability to process various flow inputs: pulse, (stacked) differential pressure or other 4 - 20mA signals. • 4 - 20mA inputs for pressure sensors. • 4 - 20mA inputs for pressure and temperature sensors. • Pt100, Pt500 or Pt1000 inputs with Callendar-van Dusen equation • Up to 2 analog outputs, 2 digital outputs, 2 relay outputs. • Water, coolants, oil, fuels and

Application overview C5-Series Your success counts Pulse flowmeters Pulse flowmeter inputs Coolants, Water & Steam C581

Functional overview C5-Series Your success counts C5-Series Flow Computers Our proven experience with instrumentation, the international design and the focus on user-friendly operation are combined in the most robust, accurate and easy-to-use field mount Flow & Energy Computers on the market.

Status bar with actual stream indication Operational screen Robust aluminium enclosure Large graphical display with bright backlight Easy-to-operate keypad ■Ijp-l'wwri tCHIER fe»;o) Hw maim Status icons Mass flow Volumetric flow Energy consumption Customer ID number Display examples Main menu List of actual values All info Easy Easy Know one Reliable User-friendly at a glance to install to program know them all! Important: specifications are subject to change without notice. Copyright: Fluidwell bv - 2026 - C5SERIES-FOLDER-EN-V2617
