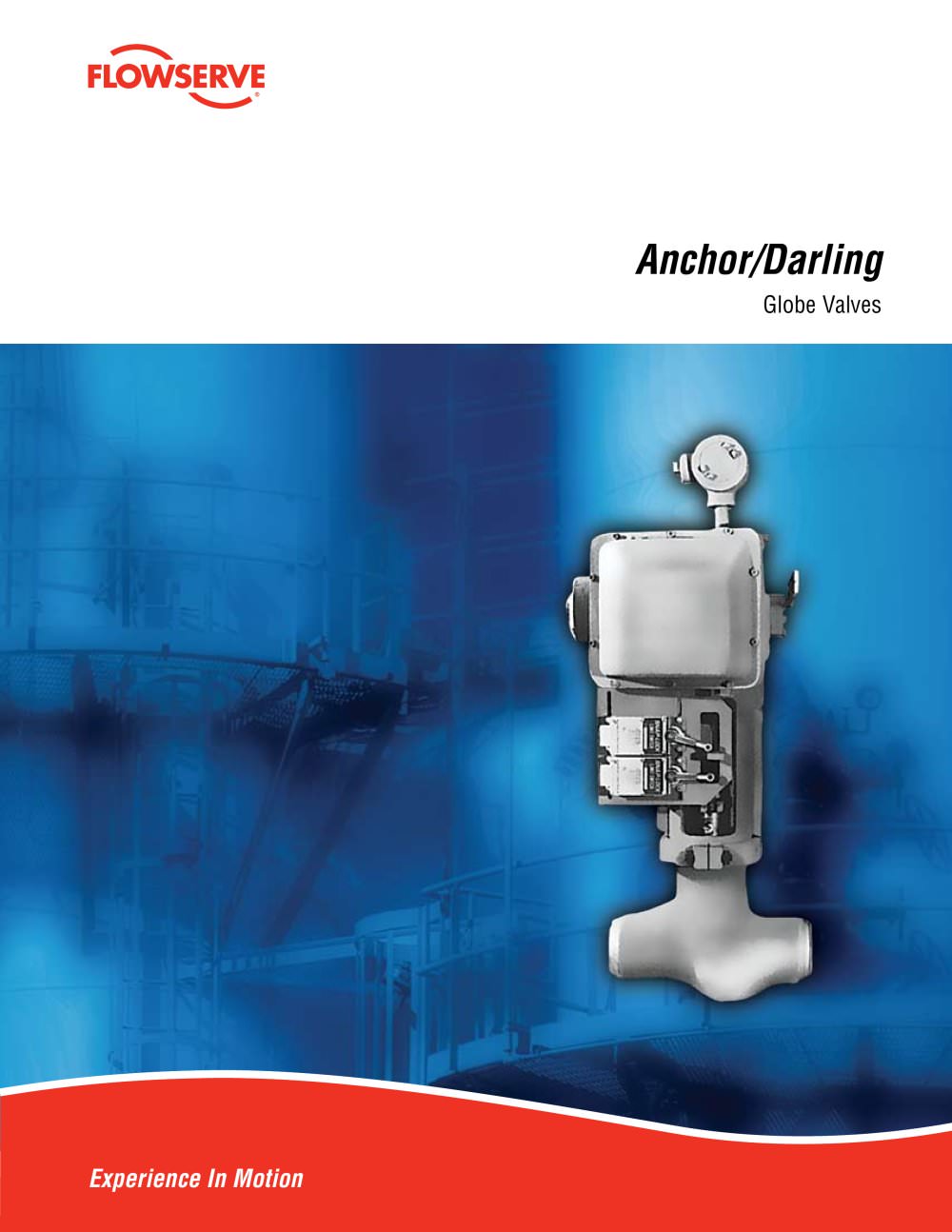

Globe Valves Experience In Motion >

Open the catalog to page 1

Various body types are offered to provide the piping designer greater flexibility. The YӔ globe and horizontal globe are normally used in horizontal pipelines. The angle globe is normally used in lieu of an elbow where flow control is necessary and when flow is upward in the vertical piping leg. The YӔ angle globe is normally used in lieu of an elbow where flow control is necessary and when flow is toward the valve in the horizontal piping leg. Custom-designed plugs can be furnished to provide various flow characteristics through globe valves. The plug profile is designed for the desired...

Open the catalog to page 2

Full body guides assure correct seat alignment.Օ Plug skirt prevents plug cocking even under turbulent flow conditions. Swivel plug assures proper seat alignment and tight seal.Օ Cast bodies permit the internal flow passage to be designed with large radius curves. This provides smooth transitions and reduces damaging turbulence, which is unavoidable in bodies of forged and fabricated designs. Differential mating angles between plug and seat ring assure tight seal with low seating force. > Flowserve Globe Valves are easily adapted to power actua-tion. Electric motor, pneumatic and hydraulic...

Open the catalog to page 3

United States Flowserve Flow Control 1900 South Saunders Street Raleigh, NC 27603 Telephone: 919 832 0525 Telefax: 919 831 3364 > FCD ADENBR0008-00 Printed in USA. To find your local Flowserve representative: For more information about Flowserve Corporation, visit www.flowserve.com or call USA 1 800 225 6989 > Flowserve Corporation has established industry leadership in the design and manufacture of its products. When properly selected, this Flowserve product is designed to perform its intended function safely during its useful life. However, the purchaser or user of Flowserve products...

Open the catalog to page 4
