Product catalog summary

Overview: This document outlines the specifications and features of the DataFlo P Positioner and DataFlo C Controller by Worcester Controls, a division of Flowserve Corporation, designed for precise process control in industrial applications.

DataFlo P Positioner:

Functionality: Operates via a 4-20 mA analog signal or digitally, offering calibration, monitoring, and diagnostics.
Key Features: Includes digital communication, diagnostics, selectable input signals, onboard and remote setup, fail position on signal loss, speed control, and power options.
Specifications: Features a Motorola microcontroller, push-button calibration, selectable fail positions, speed control, security code, and programmable response curves.
I/O Options: Supports various analog inputs and one digital RS485 input, with alarm output capability.
Diagnostics: Provides high and low alarms, position deviation alarm, and cycle count monitoring.

DataFlo C Controller:

Functionality: A PID controller with auto-tune capabilities for integration with control elements like valves and actuators.
Key Features: Includes push-button calibration, programmable PID controller, high resolution, and performance monitoring.
Specifications: Features a Motorola microcontroller, selectable actions on signal failure, and programmable operating parameters.
I/O Options: Supports various set-point and process inputs, including analog and RTD inputs.
Performance Monitoring: Includes alarms for process limits, invalid signals, and thermal warnings.

Actuator Series 75:

Specifications: Available in sizes with torque from 150 to 3000 in.-lbs., suitable for hazardous locations.
Features: Manual override, dual-feedback potentiometer, and various voltage options.
Options: Includes heater/thermostat, mechanical brake, and condensation drain plug.

Ordering Information: Provides instructions for ordering Series DFP17 Digital Positioners and Series 75 Electric Actuators, including options for set-point inputs, process inputs, and optional kits.

General Guidelines: Emphasizes that Flowserve provides general guidelines but not specific data or warnings for all applications. Users are responsible for proper sizing, selection, installation, operation, and maintenance. Reading and understanding the Installation Operation Maintenance (IOM) instructions is crucial.

Disclaimer: Information and specifications are for informative purposes only and are not certified or guaranteed. Specifications and information may change without notice due to product improvements.

Contact Information: Users are advised to contact Flowserve Corporation for questions or further information, with contact details provided for Flowserve's Flow Control Division in Cookeville, Tennessee.

Trademarks: Notes that Flowserve, Worcester Controls, DataFlo C, and DataFlo P are registered trademarks of Flowserve Corporation, and Motorola is a registered trademark of Motorola Corporation.

Catalog excerpts

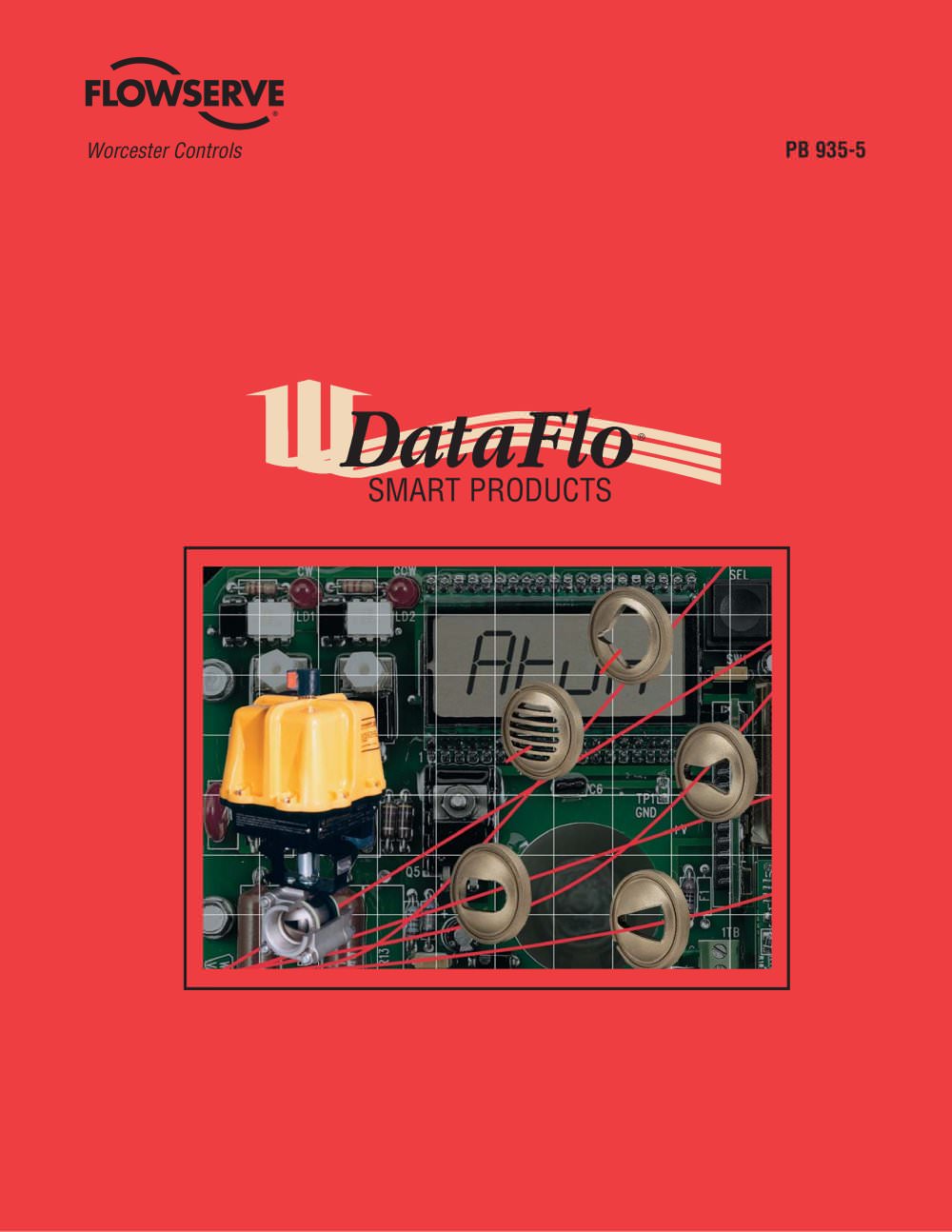

Worcester Controls PB 935-5 SMART PRODUCTS >

Open the catalog to page 1

Technical Data Supply Voltage120 VAC (10%)240 VAC (ѱ10%) 24 VDC (10%)Power Consumption (Circuit Board Only) . . . . . . . . . . . . . . .2.5 WattsMaximum Noise Level . . . . . . . . . . . . . .Approx. 3.5 mV at Maximum Sensitivity (16 microamps)Maximum Normal Starting orIn-rush Current . . . . . . . . . . . . . . . . . . .10 Amps for 1 SecondMaximum Stall Current . . . . . . . . . . . . . .8 Amps for 1 Minute Maximum Running Current Resistive Load - 90% Duty Cycle . . . . .5 AmpsMaximum Running Current Inductive Load - 90% Duty Cycle . . . . .3 AmpsMaximum Peak Voltage at Load Circuit(All 120...

Open the catalog to page 3
