Oscillating Pumps

section NINE | page 149 Osci l lating Pumps OSCILLATING PUMPS ITT Flojet oscillating pumps are designed for general consumer, commercial and industrial applications. All models are self-priming double insulated and built to draw low amps for cool operation and can run dry for extended periods of time without damage. MODEL ET508 Series (FNPT) MODEL ET200 Series Specifications Type of Pump ET508-HB ET508-FNPT ET200 Temperature Max. 160° F/71°C Max. 160° F/71°C Max. 176° F/80°C Open Flow Rate .40 GPM/90 LPH .40 GPM/90 LPH 3.8 GPH/240 cc/min. Length 5.54" (140.6mm) 4.53" (115.0mm) 2.75" (70mm) Width...

Sliding Vane Pumps

section TEN | page 152 SL IDING VANE Pumps section TEN | page 153 SL IDING VANE Pumps 81 JABSCO 176.5 163.5 ±2 SR060 Submersible Diesel Refuelling Pump With Intelligent Control FOR International & US MARKETS Flow rate: 13 gpm (60 lpm) A revolutionary vehicle mounted pumping system to enable construction plant to be refueled with diesel fuel independently, from an adjacent drum, bowser or tank and into the vehicle fuel tank, safely and efficiently. Suitable for plant with tank sizes from 26.4 (100) to 158.5 gallons (600 liters). Features • Faster refuelling – 16 gpm (60 lpm) • Compact easy to...

section TEN | page 154 SL IDING VANE Pumps section TEN | page 155 SL IDING VANE Pumps ROTA RY VANE PUMP | FOR International & US MARKETS The ITT Jabsco reversible rotary vane pump is ideal for transferring diesel fuel. It is self-priming to about three feet and can pump against a discharge head up to twenty feet. With its integral on-off reversing switch, it is ideal for moving fuel between port and starboard fuel tanks. Meets USCG 183.410 & ISO8846 Marine (Ignition Protection). Hydraulic Oil Transfer Pump | FOR international & US MARKETS Applications • General transfer duties • Pumping of hydraulic...

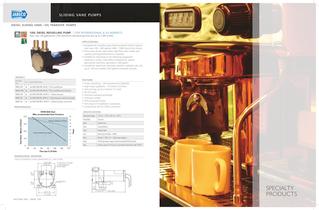

section TEN | page 156 SL IDING VANE Pumps section TEN | page 157 SL IDING VANE Pumps 35l Diesel Refuelling Pump | FOR international & US MARKETS Flow rate: 9 gallons/min (35 Liters/min). Self-priming from dry up to 2.4m (7.8ft) Features • High head capability - 19 feet (6 meters) • Self priming up to 9 feet (2.8 meters) • Vibration tested • IP55 protected motor • Full range of installation accessories • Customized kits for OE M customers • ISO8846 Marine (Ignition Protected) Applications • D esigned for refuelling small sizes diesel powered vehicles [typical tank sizes up to 50 gallons (200...

section TEN | page 158 SL IDING VANE Pumps 0 12.0 9.0 6.0 3.0 -2 1 13 25 22 19 16 10 7 4 80 Total Head - Meters of Diesel Flow lpm @ 24 Volts 95 105 VR100 QHA Chart (Max recommended head 10 meters) 85 90 100 110 Amps Amps relative to flow Flow relative to head 100l Diesel Refuelling Pump | FOR International & US MARKETS Flow rate: 28 gallons/min (105 liters/min) Self-priming from dry up to 7.8ft (2.4m) Features • Faster refuelling - 105 liters/minute (28GPM) • High head capability - 10 metres (33 feet) • Self priming up to 4 metres (12 feet) • 45 min duty • Thermal overload protected • Vibration...
