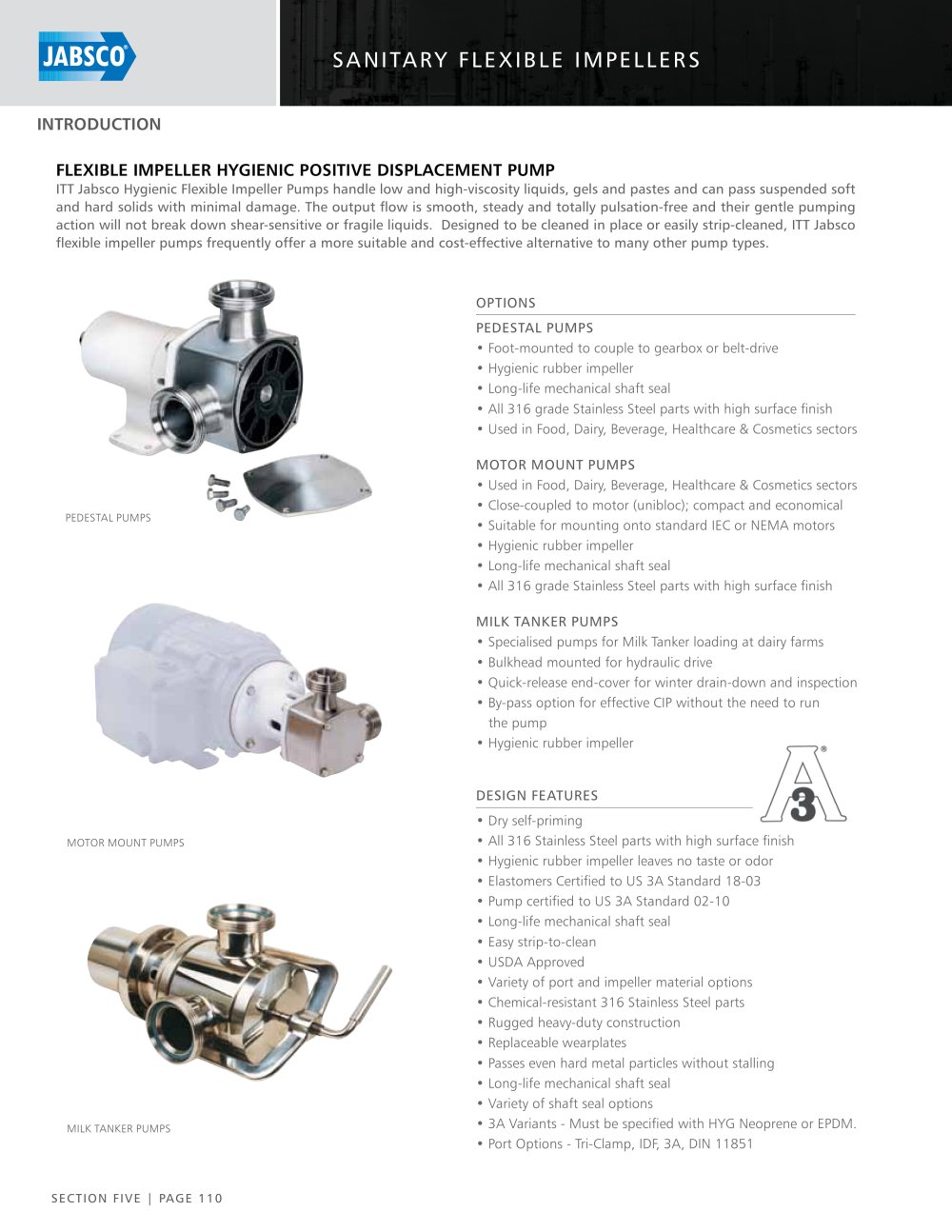

section Five | page 110 Sanitary Flexible Impel lers Flexible impeller Hygienic Positive Displacement Pump ITT Jabsco Hygienic Flexible Impeller Pumps handle low and high-viscosity liquids, gels and pastes and can pass suspended soft and hard solids with minimal damage. The output flow is smooth, steady and totally pulsation-free and their gentle pumping action will not break down shear-sensitive or fragile liquids. Designed to be cleaned in place or easily strip-cleaned, ITT Jabsco flexible impeller pumps frequently offer a more suitable and cost-effective alternative to many other pump types. Options Pedestal Pumps • Foot-mounted to couple to gearbox or belt-drive • Hygienic rubber impeller • Long-life mechanical shaft seal • All 316 grade Stainless Steel parts with high surface finish • Used in Food, Dairy, Beverage, Healthcare & Cosmetics sectors Motor Mount Pumps • Used in Food, Dairy, Beverage, Healthcare & Cosmetics sectors • Close-coupled to motor (unibloc); compact and economical • Suitable for mounting onto standard IEC or NEMA motors • Hygienic rubber impeller • Long-life mechanical shaft seal • All 316 grade Stainless Steel parts with high surface finish Milk Tanker Pumps • Specialised pumps for Milk Tanker loading at dairy farms • Bulkhead mounted for hydraulic drive • Quick-release end-cover for winter drain-down and inspection • By-pass option for effective CIP without the need to run the pump • Hygienic rubber impeller Design Features • Dry self-priming • All 316 Stainless Steel parts with high surface finish • Hygienic rubber impeller leaves no taste or odor • Elastomers Certified to US 3A Standard 18-03 • Pump certified to US 3A Standard 02-10 • Long-life mechanical shaft seal • Easy strip-to-clean • USDA Approved • Variety of port and impeller material options • Chemical-resistant 316 Stainless Steel parts • Rugged heavy-duty construction • Replaceable wearplates • Passes even hard metal particles without stalling • Long-life mechanical shaft seal • Variety of shaft seal options • 3A Variants - Must be specified with HYG Neoprene or EPDM. • Port Options - Tri-Clamp, IDF, 3A, DIN 11851 Introduction Pedestal Pumps Motor Mount pumps mil k tan ker pumps

section Five | page 112 Sanitary Flexible Impel lers 28300 Series Stainless Steel Pedestal Pump & 28320 head kit pump FOR International Markets 28200 Series Stainless Steel Pedestal Pump FOR International Markets specifications Seal Carbon / Ceramic mechanical face seal , Tungsten Carbide / Ceramic hard faced seal , Flushed options for crystallising fluids Seal Elastomer Food grade Nitrile Pump Head Stainless steel 316, machined interior and electropolished exterior finish End Cover Stainless steel 316 grade Shaft Stainless steel 316 grade (Model 28300) Shaft Stainless steel 316 grade shaft extension...

section Five | page 113 Sani tary Flexible Impel lers Stainless Steel Pumps 28400 Series Stainless Steel Pedestal Pump & 28420 head kit pump FOR International Markets Features • Self primes from dry up to 16.4 ft (5.0 m) • Flows up to 52.8 GPM (200 LPM) • Pressure up to 58 psi (4.0 bar) • Handles soft solids - max. .63 in (16 mm) diameter • Certified to US 3A Standard 02-10 • Clean-In-Place (CIP) or easy strip clean • Handles viscosities up to 50,000 centiPoise • Minimal shear to thixotropic fluids • Fits IEC standard motor B3/B14, frame 90 (model 28420) • Easy to service and maintain specifications...

section Five | page 114 Sanitary Flexible Impel lers 28500 Series Stainless Steel Pedestal Pump & 28520 head kit pump FOR International Markets Features • Self primes from dry up to 4.5 metres • Flows up to 365 liters per minute • Pressure up to 43.5 psi (3.0 bar) • Handles soft solids - max. .71 in (18 mm) dia • Certified to US 3A Standard 02-10 • Clean-In-Place (CIP) or easy strip clean • Handles viscosities up to 50,000 centiPoise • Minimal shear to thixotropic fluids • Fits IEC standard motor B3/B14, frame 80 (model 28520) • Easy to service and maintain specifications Seal Carbon / Ceramic...

section Five | page 115 Sani tary Flexible Impel lers Stainless Steel Pumps 28600 Series Stainless Steel Pedestal Pump & 28620 head kit pump FOR International Markets Features • Self primes from dry up to 16.4 ft (5.0 m) • Flows up to 137.4 GPM (520 LPM) • Pressure up to 58 psi (4.0 bar) • Handles soft solids - max. .71 in (18 mm) diameter • Certified to US 3A Standard 02-10 • Clean-In-Place (CIP) or easy strip clean • Handles viscosities up to 50,000 centiPoise • Minimal shear to thixotropic fluids • Fits IEC standard motor B3/B14, frame 90 (model 28420) • Easy to service and maintain specifications...

section Five | page 116 Sanitary Flexible Impel lers 30550 Series Sanitary Flexible Impeller Pump | FOR US Markets Features • Flow rate: Nominal 10.5 GPM (40 LPM) at 1750 rpm • Self-priming from dry up to 2.4m (7.8ft) • Pressure up to 58 psi (4 bar) • Handles soft solids - max. .31 (8mm) diameter • Certified to US 3A Standard 02-10 • Clean-In-Place (CIP) or easy strip clean • Handles viscosities up to 50,000 centiPoise • Minimal shear to thixotropic fluids • Easy to service and maintain specifications Pump Type Pedestal Pump, Pump Head, Close Coupled Body 316 Stainless Steel Impeller Neoprene...

section Five | page 117 Sani tary Flexible Impel lers Stainless Steel Pumps 30570 Series Sanitary Flexible Impeller Pumps | FOR US Markets Features • Flow rate: Nominal 51 GPM (193 LPM) at 1750 rpm • Self-priming from dry up to 2.4m (7.8ft) • Pressure up to 58 psi (4 bar) • Handles soft solids - max. .63 in (16mm) diameter • Certified to US 3A Standard 02-09 • Clean-In-Place (CIP) or easy strip clean • Handles viscosities up to 50,000 centiPoise • Minimal shear to thixotropic fluids • Easy to service and maintain specifications Pump Type Pedestal Pump, Pump Head, Close Coupled Body 316 Stainless...
