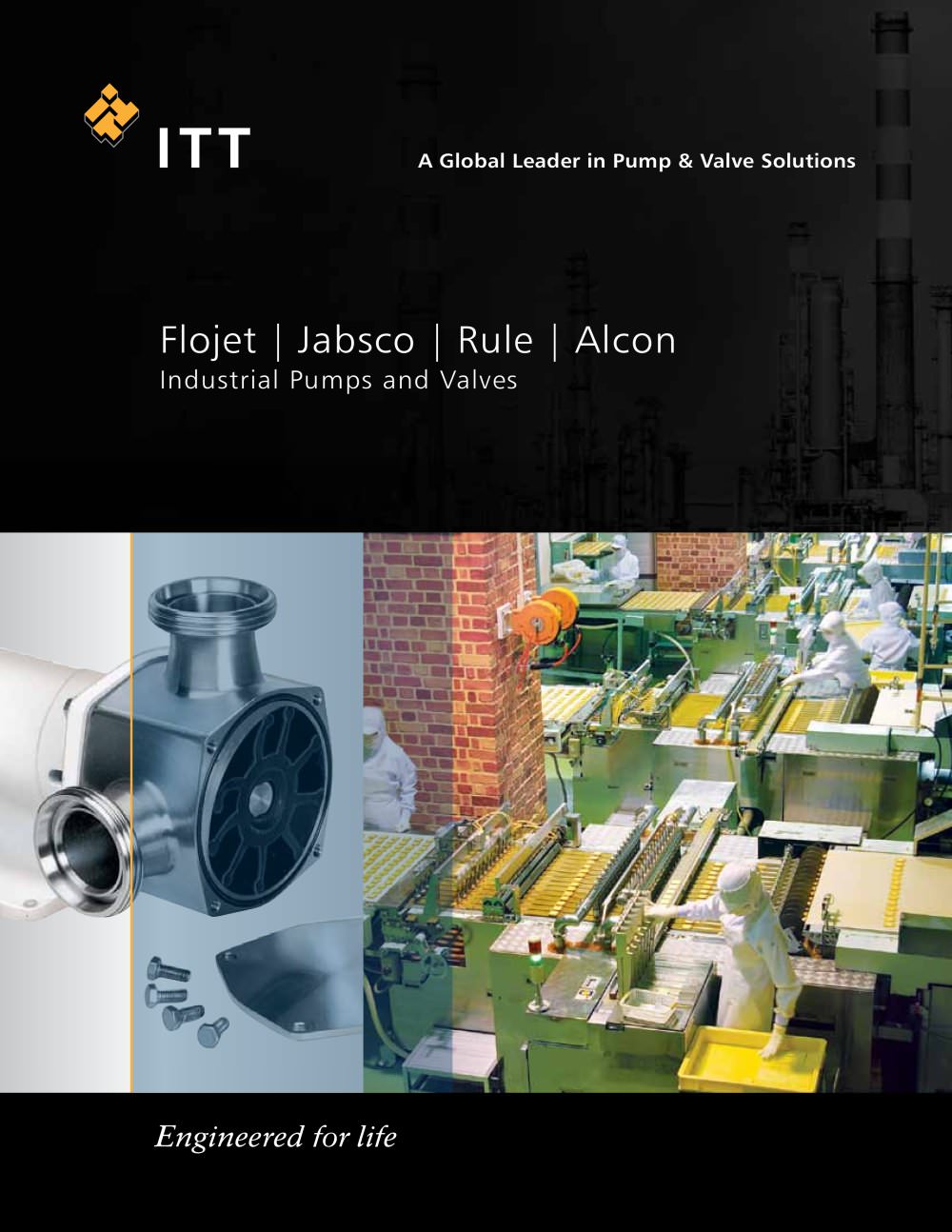

A Global Leader in Pump & Valve Solutions Flojet | Jabsco | Rule | Alcon Industrial Pumps and Valves

Welcome to our brands. Flojet. Jabsco. Rule. Alcon. The driving force throughout ITT is to provide innovative and quality products that fulfill the expressed needs of our customers. With four highly regarded brands— Alcon, Flojet, Jabsco and Rule — ITT is the leader in the small pump market offering the most versatile range of industrial pumps available. The pumps represented in this catalog are the result of ITT’s close collaboration with its customers to provide application-specific products. ITT creates a unified culture centered on doing essential things in extraordinary ways, uses...

secti on one | page 2 The first step toward selecting the right pump is to develop the specifications for the pump. This involves knowledge of the application and the chemical solution for pumping. The following tips will be helpful in determining the right pump for any specific application. Please refer to the Engineering Data and Tables at the end of this catalog to assist you in this process. Flow “Flow” is defined as the rate at which you want the liquid pumped. Several factors dictate the flow requirements in an application. Some of these are the size of the nozzle for spraying, cycle...

This table will help you to identify the products which are most commonly used in your sector. Don’t forget to look at the other pages too, as you may find something which meets your specific requirements. Industrial Flexible Impeller Pumps Bronze Flexible Impeller Pumps Drum Emptying Pumps Hygienic Flexible Impeller Pumps Rotary Lobe Pumps Sliding Vane Pumps Diaphragm Pumps Centrifugal Pumps Solenoid Valves 52 60 49 82 114 124 22 12 132 Chemical suppliers and users p p p p p p General industry, factory plant p p p p p p p Water treatment & utilities p p p p p p Food processing p p p...

secti on one | page 4 agricultural spraying Many applications around the farm that require spraying; from crop/tree spraying to teat spraying. Product groups with this icon are designed to have the pressure and flow required for such applications. automotiv e Pumps used in this application are perfect for the garage and also on for washing car brakes, transmission fluid transfer, brake fluid change out and windscreen washing. Carwash Pumps designed for car washes are ideally suited for pumping both water and chemicals. chemi cal transfer Products with this symbol are designed specifically...

! secti on one | page 5 Road Comp acti on Product in this category are particularly suited to road compaction vehicles where liquid spraying is required. food & Beverage Specific products in this group are designed for food grade materials and range in applications from dispensing beer to pumping food over large distances. ProceSS App licati ons RO BOTICS STEA M Cryogenics general purpose These products have a large range of attributes from high volume water transfer to pumping chemicals. HVAC HA ZARDOUS AREA EN VIRON MEN TS pharmaceuti cal Products with this symbol have options designed...

Mag Drive Centrifugal Centrifugal secti on one | page 6 Centrifugal pumps handle high volumes with a smooth and non-pulsating flow. The flow rate can be regulated from maximum output to no flow with no damage to the pump. An excellent pump for general transfer applications. Low Maintenance: Few moving parts mean that wear due to operation is minimal. Easy Installation: Compact size for flow rate. Option of port positions simplifies pipe runs. Versatility: Centrifugal pumps can be built in submersible form. Low Power Consumption: Electric centrifugal pumps consume less power than most other...

Flexible Impeller secti on one | page 7 The flexible impeller pump combines the priming features of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. The pump can be mounted at any angle and will pump in either direction with equal efficiency. Self-Priming: Pumps instantly with dry suction lifts up to 10ft (3m) and up to 25ft (8m) when wetted. Simplicity: One moving part - a tough, long-life, wear-resistant flexible impeller. Flexibility:...

Sliding Vane Rotary Lobe secti on one | page 8 ITT Jabsco lobe pumps use two counter-rotating rotors that creates a steady, positive pumping action. But, as the rotors never touch each other or the pump case, Jabsco hygienic lobe pumps will not contaminate or degrade the fluid. What comes out is what goes in; no more, no less. Features: Hygiene Standards: Crevice-free designs, external gears & bearings, together with all-stainless-steel contact parts & high surface finishes, surpass users’ hygiene and cleanability expectations. Reliability: Lobe pumps offer long-term dependability with...

Drum Pump Gear secti on one | page 9 Gear pumps are ideal for the transfer of hydraulic and light oils, water and diesel fuel. They are 12 or 24V DC powered making them suitable in automotive, bus and truck applications. How do they work? 1. One gear is driven by an external power source (the driver) and this meshes with the driver gear. The gears are enclosed in a close fitting casing and the radial and axial clearance is controlled. 2. As the gears rotate, a partial vacuum is created in the suction port allowing atmospheric pressure to push liquid into the pump. 3. Liquid is transferred...
