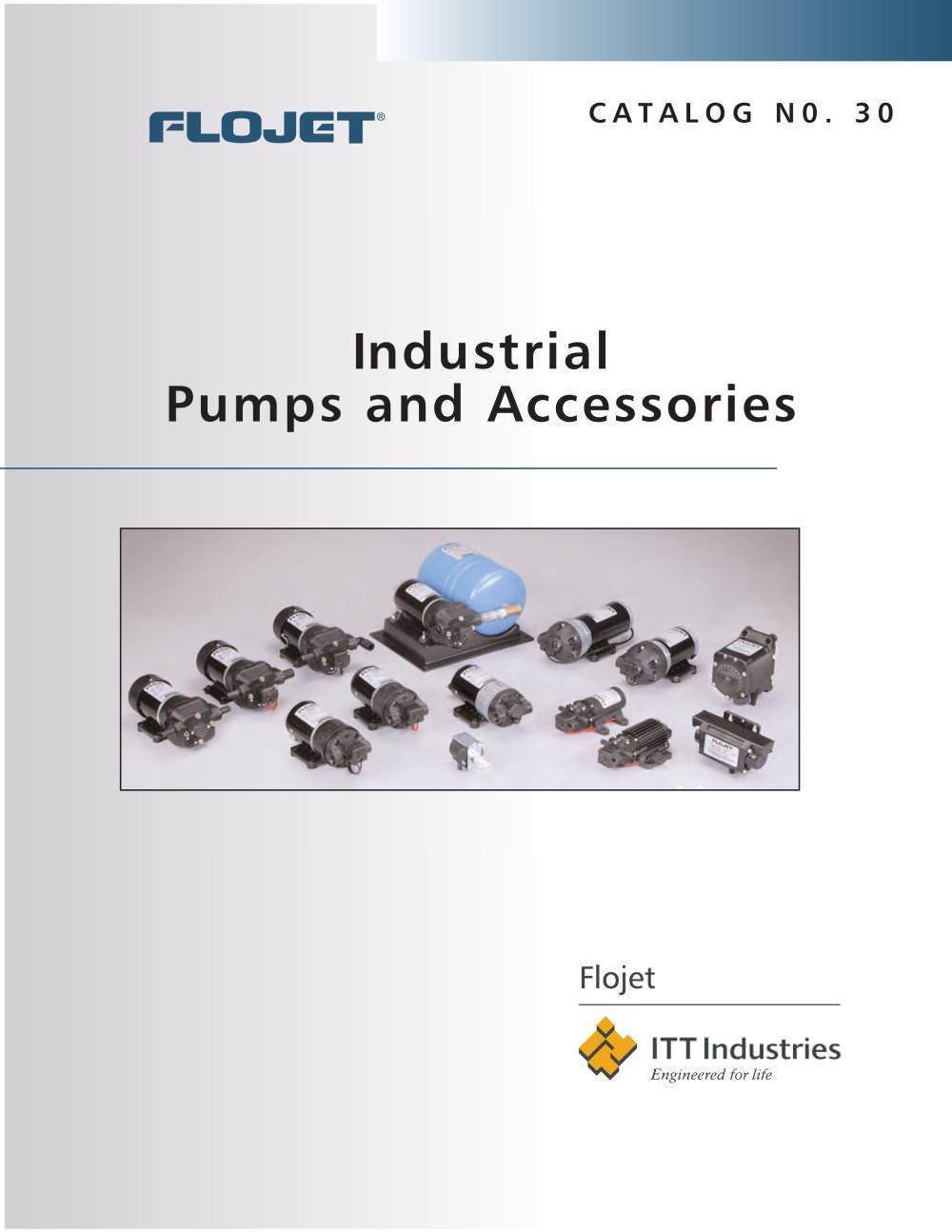

CATALOG N0. 30 Industrial Pumps and Accessories >

Our compact and lightweight air operated pumps The solenoid pumps are self-priming, double insulated and built to draw low ampsfor cool operation. These pumps deliver fluids from 0 to 0.4 GPM with pressures up to 230 PSI and are capable of handling a broad range of liquids. They are also avail- able in various port sizes and elastomer options. can deliver up to 5 GPM of flowand 100 PSI pressure. Due to the self-priming capacity of these pumps, they can be located above the liquid level. Flojet designs these pumps for general, commercial and industrial markets. They have the ability for quick adaptation...

T Control The decision to choose the right driving source is generally dictated by availability. If the pump is to be motor or solenoid driven, you will need to know the voltage and the frequency of the power source. AC or DC governs the kind of motor need- ed. The oscillating pumps that run on the cycling of the AC supply cannot work with DC voltages. If you have air available andchoose an air driven pump, you need to know the pressure and means of regulating the incoming air to the pumps. In flammable atmospheres, Flojet recommends using an air driven pump properly grounded to prevent the potential...

After establishing the specifications, you need to choose the right type of pump for your application. There are various stylesof small pumps, i.e., pump flows under 20 GPM. These are broadly categorized as centrifugal, metering and positive displacement pumps . Metering pumps Centrifugal They pump precise volumes of liquid in a specified time period to give accuracy and repeatability of + or - 2% or better. These work on the principles of positive displacement and could be piston, bellows or diaphragm pumps. Hence, after you have determined the specifications and decided that you do not need a centrifugal...

3.24(82.29) S PECIFICATIONS > 3.8 NPTPORTS Pump: Positive Displacement two piston design Flow Rate: 2.2 GPM (8.32 L/min) for high pressure models > 3.63(92.20) 1.6 GPM (6.05 L/min) for medium and low pressure models > 2.02(51.30) Pressures: Up to 100 PSI (6.89 bar) Ports: 3/8 NPT female Motor: Permanent Magnet with solid state rectiԯ́er Voltages: 12 & 24 V DC, 115 & 230 V AC Cycle: 50/60 hertz for AC models Dry Vacuum: Up to 8 feet (2.4 M) Pressure Switch Setting: 15, 30, 45, 60, 80, and 100 PSI Wetted Parts: Polypropylene, Viton > , Buna or EPDM Net Weight: 4 to 5 lbs. (2.28 kgs) Maximum Operating...

SPECIFICATIONS Pump: Air-operated positive displacement double diaphragm pump Flow Rate: Up to 2.0 GPM (7.57 L/min) > 120(8.3)100(6.9)80(5.5)60(4.1)40(2.8)20(1.4)0 Pressure: 20 to 75 PSI (1.38 to 5.51 bar)Ports: Liquid 3/8 Air 1/4ԔWetted Parts: Buna, Santoprene, Geolastή or Viton for diaphragms and valves Acetal copolymer for housing Self-Priming: 28 ft. (8.5 mm) Dry, 32 ft. (9.8 mm) Wet > 80* Gas/Air Consumption: Air Supply must be oil-free and dry 40 PSI at 1 GPM - 0.45 C.F.M. > 60* 60 PSI at 1 GPM - 0.58 C.F.M. > Pressure PSI (BAR) 80 PSI at 1 GPM - 0.77 C.F.M. > 40* 0.5(1.9)01.0(3.8)1.5(5.7)2.0(7.6)2.5(9.5)3.0(11.4)...

Flojet manufactures a wide range of 3 diameter permanentmagnet motors. These are designed as a more cost-effective alternative to larger series wound or induction type motors. They also offer ԯ̂exibility of speed in the range of 1000 to 5000 rpm. Low heat rise and high efficiency ensures long and reliable service life. The ease with which these motors can be adapted to any application is enhanced by the availability of various motor lengths and shaft configurations. The fact that the motors are bi- directional increases their versatility. Most of our motors have the appropriate agency approvals...

Part Number Part Number > Straight Elbow Description 91010-03291010-0333/8 NPT Male x 1/4Ԕ Barb91010-00491010-0031/4 NPT Male x 3/8Ԕ Barb 91010-00291010-0013/8 NPT Male x 3/8Ԕ Barb 91010-03491010-0251/4 NPT Male x 3/8Ԕ Barb 91010-00691010-0053/8 NPT Male x 1/2Ԕ Barb 91010-05391010-0521/4 NPT Male x 1/4Ԕ Barb > Part Number Part Number Straight Elbow Description > 20381-000 20381-008Quad Port x 1/2Ԕ-14 Male Straight 20381-00220381-009Quad Port x 1/2 Hose Barb 20381-00620381-010Quad Port x 3/4Ԕ Hose Barb 20381-007Quad Port x Garden Hose Adapter* Other Elastomers Available* * Packaged 2 per bag....

Company:Date: Address: City:State:Country: Phone:Fax:E-mail: Contact:Title:Annual Unit Sales: Samples Requested:Agency Approvals Required: > Flow Rate:Point (A) Operating Pressure:Point (A) Point (B) Point (B) Point (C) Point (C) Fluid Being Pumped:Concentration: PH Rating:Temperature Range:Viscosity: Specify Gravity:Suspended Solids:Size: Horizontal Mounting Position:Vertical, Pump Head Down: Suction Plumbing Type:Size:Length: Vertical Distance:Horizontal Distance: Fittings/Elbows:Quick Disconnects:Size: Discharge Plumbing Type:Size:Length: Vertical Distance:Horizontal Distance: Fittings/Elbows:Quick...

This Chemical Resistance Guide is offered to assist in selectingpump materials that are most resistant to the chemicals that may be used with a FLOJET pump.The information is based on FLOJET laboratory tests, field testingprograms and general data from industry sources. It should be used only as a guide in the selection of pump materials. Suitability for the application should be determined by actual use and is the full responsibility of the customer. No warranty, expressed or implied, can be extended by FLOJET where failure is caused by chemical attack on pump materials. Temperature, aeration,...

POLYPROPYLENENYLONPOLYETHYLENE ACETAL COPOLYMERVITONBUNASILICONEEPDM SANTOPRENE316 STAINLESS STEELHASTELLOY POLYPROPYLENENYLONPOLYETHYLENEACETAL COPOLYMERVITON BUNASILICONEEPDMSANTOPRENE316 STAINLESS STEEL HASTELLOY AcetaldehydeAADCDABAA Ammonium Flouride, 25%A AcetamideAAABABAA Ammonium HydroxideAAACBCAAAB Acetate Solvents (crude)DAADDCVA Ammonium MetaphosphateAAAAA Acetate Solvents (pure) DABDDCBA Ammonium NitrateABAAAAAD Acetic Acid, GlacialADADCBBAA Ammonium OxalateBAA Acetic Acid, 10%ACACBBA Ammonium PersulfateACABCBAD Acetic Acid, 20%ABACBBB A Ammonium Phosphate, DibasicACAAAAAC Ammonium...
