Product catalog summary

Introduction
ITT is a leader in the small pump market, offering a range of beverage products through its brands Flojet, Alcon, and Totton. The catalog emphasizes innovation, quality, and customer-centric solutions.

Table of Contents Overview
The catalog is organized into sections covering various types of pumps and accessories, including beverage/beer pumps, water booster systems, chilling pumps, and valves, with detailed specifications and model numbers.

Beverage/Beer Pumps - Gas (CO2)/Air Driven

N5000/T5000 Series: Designed for dispensing syrups, juice concentrates, teas, wines, and liquor with features like a 40,000-gallon service life and automatic shutoff.
G55 Series: Offers high flow rate and extended service life, suitable for long runs with high CO2 inlet pressure.
G58 Series: Suitable for juice concentrates and condiments with particulates, featuring enlarged check valves and quiet operation.
G56 BeerJet: Designed for dispensing beer from kegs, capable of long runs, and supports multiple faucets from a single keg.

Water Booster Pumps & Systems

G60/K56 Series: Gas/air-driven systems for boosting water pressure.
2820/2840 Series: Electric automatic water booster systems.
2830 Series: Triplex water booster system for high-pressure applications.

Chilling Pumps - Centrifugal
Includes various series designed for beer and soda chilling, each with specific flow rates and pressure capabilities.

Accessories and Fittings
Includes water pressure regulators, accumulator tanks, and various fittings for gas and electric pumps.

Valves
Features beverage solenoid valves with technical data and specifications for different series.

Conclusion
The catalog provides comprehensive information on ITT's range of pumps and accessories, highlighting their application-specific designs and innovative features.

Beer & Wine Bag-in-Box Pumps

Design: Positive displacement double diaphragm.
Voltage: 230VAC, 50/60Hz.
Features: Built-in vacuum switch, pressure switch, self-priming, runs dry without damage.
Applications: Ideal for mobile carts and vending applications where CO2 is not available.
Specifications: IPX4 rated, NSF listed, CE approved, maximum liquid temperature of 43˚C.

Electric Bag-in-Box Pump

Applications: Dispensing wine, juice, teas, or liquor from Bag-in-Box.
Features: Quick installation, compact size, safety timer, self-priming, quiet operation.
Specifications: Available in 115 VAC, 230 VAC, and 12 VDC models, maximum flow of 1.0 GPM, maximum pressure of 40 PSI.

Bottled Water Systems

Applications: Designed for dispensing bottled water to coffee machines, beverage dispensers, vending machines, and carts.
Features: Float switch for automatic shut-off, built-in check valve, universal seal cap, easy mounting.
Specifications: Includes dual inlet suction kits and appliance controller interface kits.

Appliance Controller

Applications: Works with water systems to control devices like coffee machines and carbonator pumps.
Features: Protects appliances, audible alarms for various conditions, daisy chain capability.
Specifications: 115 VAC, 50/60 Hz, UL recognized, RoHS compliant.

Demand & Manual Single Fixture Pumps

Applications: Low-flow, low-pressure beverage dispensing and transfer.
Features: Compact, self-priming, run-dry capability, low amp draw.
Specifications: Flow rate of 0.15 GPM to 1 GPM, pressure up to 40 PSI.

Water Booster/Water Delivery Pumps

Design: Positive displacement two-piston design.
Applications: Water booster, water purification, espresso brewing, carbonation.
Features: Self-priming, chemical resistant, internal bypass, built-in backflow preventer.
Specifications: Pressures up to 150 PSI, flow rate of 1.4 GPM, available in various voltages.

Triplex Series High Pressure Pump

Applications: Transfer, delivery, spraying, cooling, filtration, dispensing, and pressure boosting.
Features: Self-priming, run-dry capability, corrosion-resistant materials, bypass system.
Specifications: Pressures up to 150 PSI, flow rate of 1.4 GPM, available in various voltages.

Specifications
The document outlines the specifications for a pump system operating at 115 V and 60 Hz with an open flow rate of 5.0 GPM (19 LPM). It is recommended for intermittent duty cycles and has dimensions of 3.75" H x 6.30" W x 9.00" L. The system is UL listed with NSF approval pending and comes with a 1-year warranty. A water pressure regulator is required if the inlet exceeds 30 PSI (2.1 bar).

General Information
The AC Variable Speed Drive pump system adjusts motor speed to match system demand, maintaining constant pressure and reducing amp draw. It operates without a pressure switch and eliminates the need for an accumulator tank, making it energy-efficient and quiet.

Special Features
The pump system maintains steady fluid pressure, automatically adjusts motor speed, and improves overall system performance. It is designed for limited space requirements by eliminating bulky components.

Valves
ITT Alcon manufactures solenoid valves for water and beverage markets, offering precise and reliable performance. The valves are available in various materials and configurations, suitable for beverage dispense equipment and factory process systems. They are certified to NSF/ANSI 61 standards.

Flow Data
The document provides detailed flow data for water and air through various nominal orifice diameters at different pressures, highlighting maximum flow rates in GPM and SCFM.

Modes of Operation
Solenoid valves are available in normally closed, normally open, and universal configurations, with direct acting and pilot operated options. The document explains the operational principles and temperature considerations for these valves.

Quality Assurance
ITT’s manufacturing facility is ISO 9000:2004 certified, ensuring high process control and customer focus. Each valve is pressure tested for positive shut-off and no-leak assurance.

Accessories
The document lists various mounting brackets and accessories for pumps and valves, designed for easy installation and maintenance. These accessories are intended to enhance system performance and reduce equipment downtime.

G56 Beer Pump Specifications and Features

The G56 Beer Pump is available in stainless steel and polypropylene. It features a flow reversal valve for cleaning draught beer systems in both directions and can clean multiple lines simultaneously. The valve is easy to switch between 'Dispense' and 'Reverse Flow' modes. It complies with NSF Standard 18.

Accessories

Various part numbers are listed for different configurations, including regular and high-altitude automatic switching valves, syrup sold-out switches, and auto shutoff valves. These components are designed to enhance the functionality of the beer pump system.

Fittings

A comprehensive list of fittings is provided, including hose barbs and NPT male connectors in various sizes. These fittings are compatible with different series of pumps, facilitating the connection of CO2 lines and product inlets/outlets.

Technical Information

Conversion data is provided for temperature, volume, and pressure measurements, aiding in the accurate setup and operation of the pump system.

Warranty and Return Policy

ITT Corporation offers a warranty ensuring products are free from defects in material and workmanship. The warranty is valid with proof of purchase from an authorized dealer. A return policy is outlined for warranty claims, including obtaining a return material authorization (RMA) number and the process for repair or replacement.

Brand Website Features

The document highlights the availability of detailed technical data and trade catalogs in PDF format on the brand's websites. It also mentions the comprehensive search facility and exploded diagrams to assist in product identification.

Catalog excerpts

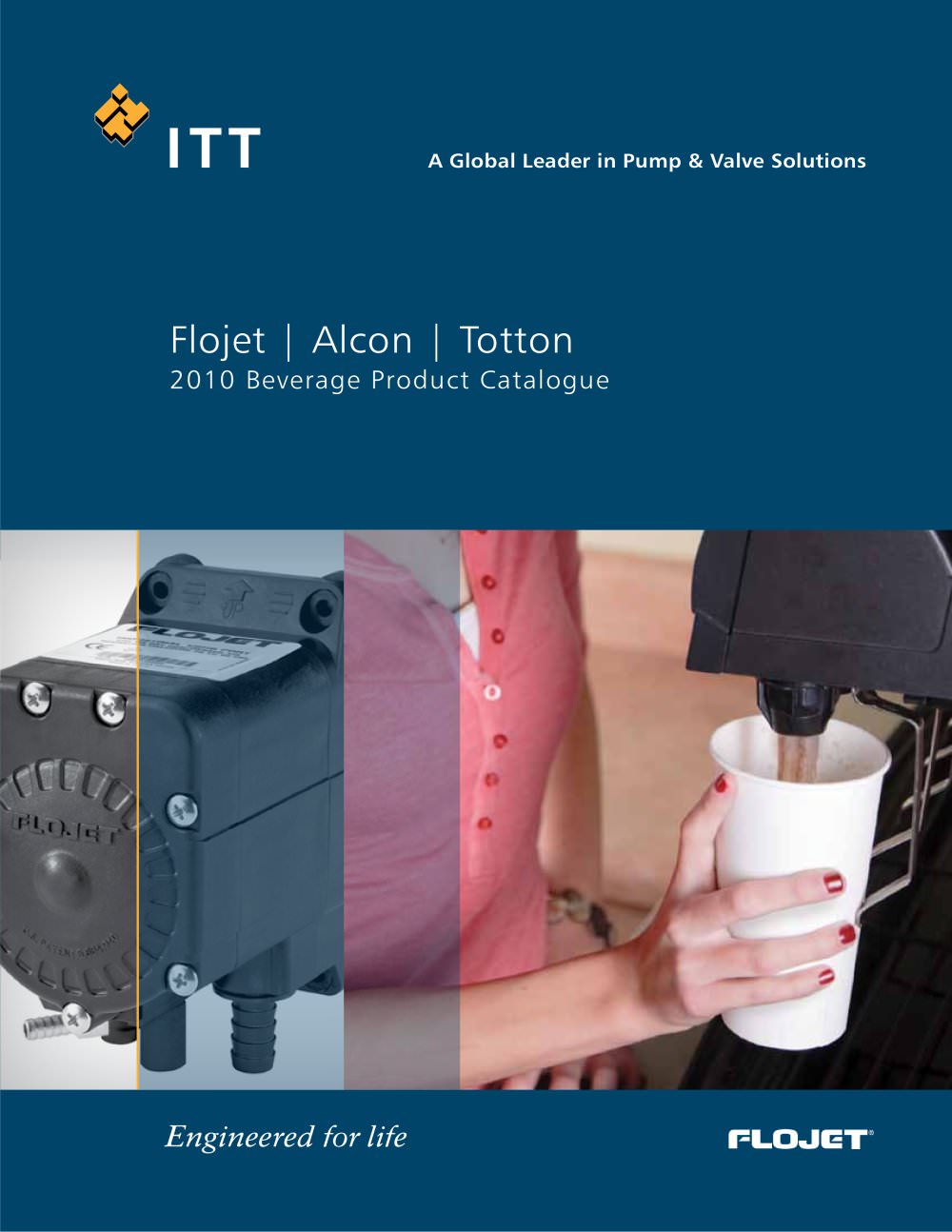

A Global Leader in Pump & Valve Solutions Flojet | Alcon | Totton 2010 Beverage Product Catalogue

Open the catalog to page 1

SPECIAL APPLICATION PUMPS FOR ALL PURPOSES Welcome to our brands Flojet. Alcon. Totton. The driving force throughout ITT is to provide innovative and quality products that fulfill the expressed needs of our customers. With three highly regarded brands—Flojet, Alcon and Totton — ITT is the leader in the small pump market offering the most versatile range of beverage products available. The pumps represented in this catalog are the result of ITT’s close collaboration with its customers to provide application-specific products. ITT creates a unified culture centered on doing essential things in...

Open the catalog to page 2

3 Pump Design: Positive Displacement, Double Diaphragm Power Source: CO2 Gas, Nitrogen or Compressed Filtered Air Materials of N5000: Celcon M90, Santoprene®, EPDM, 302 or Construction 304 Stainless Steel Spring (wetted parts): T5000: Polypropylene, Santoprene®, EPDM, 302 or 304 Stainless Steel Spring Temperature Limits: 34¢ª - 120¢ª F (1.1¢ª - 49¢ª C) Weight: 1.19 lbs. (0.54 kg.) Dimensions: 5.17" H x 6.18" W x 2.42" D (131.3 mm x 156.8 mm x 61.5 mm) Displacement: 2.5 oz. per cycle Self Priming: Up to 10 ft. (3.05 m) Operating Pressure: 20 psi (1.4 bar) min. / 80 psi (5.5 bar) max. Liquid Inlet...

Open the catalog to page 5

4 Standard Model Numbers SPECIFICATIONS Pump Design: Positive Displacement, Double Diaphragm Power Source: CO2 Gas, Nitrogen or Compressed Dry Filtered Air Materials of Polypropylene, Santoprene®, EPDM, AISI Construction 303 & 304 Stainless Steel (wetted parts): Temperature Limits: 34¢ª - 120¢ª F (1.1¢ª - 49¢ª C) Weight: 1.24 lbs. (0.56 kg.) Dimensions: 5.27" H x 3.21" W x 4.58" D (133.8 mm x 81.5 mm x 116.3 mm) Displacement: 3.2 oz. per cycle Self Priming: Up to 10 ft. (3.05 m) Operating Pressure: 20 psi (1.4 bar) min. / 90 psi (6.2 bar) max. Liquid Inlet Pressure: 30 PSI (2.1 bar) (2.1 bar)...

Open the catalog to page 6

5 Pump Design: Positive Displacement, Double Diaphragm Power Source: CO2 Gas, Nitrogen or Compressed Dry Filtered Air Materials of Polypropylene, Santoprene®, EPDM, AISI 303 & Construction 304 Stainless Steel (wetted parts): Temperature Limits: 34¢ª - 120¢ª F (1.1¢ª - 49¢ª C) Weight: 1.24 lbs. (0.56 kg.) Dimensions: 5.27" H x 3.21" W x 4.58" D (133.8 mm x 81.5 mm x 116.3 mm) Displacement: 3.2 oz. per cycle Self Priming: Up to 6 ft. (1.83 m) Operating Pressure: 20 psi (1.4 bar) min. / 90 psi (6.2 bar) max. Liquid Inlet Pressure: 30 PSI (2.1 bar) (2.1 bar) max. Flow Rate: 6.0 oz. (177.4 ml) /sec....

Open the catalog to page 7

6 Beverage / Bee r Pumps Gas (C02)/Air Driven Pump Design: Positive Displacement, Double Diaphragm Power Source: CO2, Nitrogen or Compressed Dry Filtered Air Materials of Polypropylene, Santoprene®, EPDM, AISI Construction 304 Stainless Steel (wetted parts): Fluid Temperature 30¢ª - 120¢ª F (1.1¢ª - 49¢ª C) Limits: Weight: 1.24 lbs. (0.56 kg.) Dimensions: 5.27" H x 3.21" W x 4.58" D (133.8 mm x 81.5 mm x 116.3 mm) Displacement: 3.2 oz. (91 ml) per cycle Self Priming: Up to 10 ft. (3.05 m) Operating Pressure: 10 psi (0.7 bar) min. / 90 psi (6.2 bar) max. Liquid Inlet Pressure: 30 PSI (2.1 bar)...

Open the catalog to page 8

Beverage / Bee r Pumps Gas (C02)/Air Driven 7 • The beer pump increases the pressure in the product dispense line, which ensures that the inherent gas in the solution (beer) cannot break out. • • Smaller I.D. tubing can be used in some installations, which reduces the amount of beer wasted when cleaning lines. • • Feeding up to three faucets through a single line. • Capable of traversing up to 800 feet, horizontally through a single line. Pump can also be utilized to aid in beer line cleaning through wall mounted cleaning sockets. The required applied keg pressure need not exceed the natural...

Open the catalog to page 9

8 Beverage / Bee r Pumps Gas (C02)/Air Driven Pump Design Positive Displacement, Double Diaphragm Check Valve Duckbill Valve Patent Pending Power Source CO2 Gas, Nitrogen or Compressed Dry Filtered Air Materials Polypropylene, Santoprene®, EPDM, AISI 303 & 304 of Construction Stainless Steel (wetted parts) Temperature Limits 34° - 120° F (1.1° - 49° C) Weight 1.24 lbs. (0.56 kg.) Dimensions 5.27” H x 3.21”W x 4.58” D (133.8 mm x 81.5 mm x 116.3 mm) Displacement 3.2 oz. per cycle Self Priming Up to 6 ft. (1.83 m) Operating Pressure 20 psi (1.4 bar) min. / 80 psi (5.5 bar) max. Liquid Inlet Pressure...

Open the catalog to page 10

9 Wate r Booste r Pumps & Syste ms Gas (CO2)/Air Driven Standard Model Numbers Standard Model Numbers Water Supply Water Regulator 30 PSI (2.1 bar) max. Fast Flow Valve 2.5 oz./sec. (74ml/sec.) on the water side CO2 Supply Dispenser G56 Series Pump Water Supply Water Regulator 30 PSI (2.1 bar) max. Fast Flow Valve 2.5 oz./sec. (74ml/sec.) on the water CO2 Supply Dispenser K56 Series System Pump Design: Positive Displacement, Double Diaphragm Power Source: CO2 Gas, Nitrogen or Compressed Dry Filtered Air Materials of Polypropylene, Santoprene®, EPDM, Construction AISI 303 & 304 Stainless Steel...

Open the catalog to page 11

10 Auto mat ic wate r booste r syste ms - Elect ric Standard Model Numbers 15 (0.7) 0.5 (1.9) 1.0 (3.5) 1.5 (5.7) 2.0 (7.8) 2.5 (9.5) 30 (2.1) 45 (3.1) 60 (4.1) 75 (5.2) Pressure/Head psi (bar) Flow in GPM (LPM) 0 0 Inlet and Outlet Ports: 3/8" (10mm) Female NPT Motor: Permanent Magnet TENV Amp Draw: 115 Volt AC: 0.55 amps max., 230 Volt AC: 0.25 amps max. Accumulator Tank: Diaphragm: Butyl Total Volume: 0.77 gal. (3 liters) Oper. Volume: 0.16 gal. (0.6 liters) Warranty: 1 Year Inlet and Outlet Ports: 1/2" (13 mm) OD or 3/4" (19 mm) OD hose barb Motor: Permanent Magnet TENV Amp Draw: 115 Volt...

Open the catalog to page 12

11 Triple x Wate r Booste r Syste m Pressure/Head psi (bar) Time (sec) 2 oz 6 oz 8 oz 4 oz Pump Design: Motor operated 3 chamber diaphragm Motor Design: Corded AC, Rectified (PMDC) AC Wetted Parts: Diaphragm: Santoprene Check Valve: EPDM Pump Housing: Nylon Accumulator Tank Housing: 304 Stainless Steel Accumulator Tank Bladder: Butyl (food grade) Weight: 17.1 lbs (7.8 Kg) Performance Specifications – Pump Max. Amp Draw: 115V AC: 0.95 amp 230V AC: 0.50 amp Cycle: 50/60 Hz Liquid Temperature: Min. 40°F (5°C) Max. 120°F (49°C) Priming: Dry: 6 feet (1.8m) Wet: 10 feet (3.1m) Max. Flow: 1.4 GPM (5.3...

Open the catalog to page 13
