Thermiculite 715 Coreless Sheet

Thermiculite 715 Coreless Sheet

Product catalog summary

Overview
This document provides detailed information on Thermiculite® gasket materials developed by Flexitallic. These materials are designed to withstand extreme temperatures, aggressive chemicals, and challenging environments, making them suitable for critical service seals in various industrial applications.

Product Specifications

THERMICULITE® 815 Tanged Sheet: Reinforced with a 316 stainless steel tanged core, available in various thicknesses and sizes. Suitable for temperatures from cryogenics to 1800°F (980°C) and pressure classes 150 to 300.
THERMICULITE® 835 Spiral Wound Filler: Used in spiral wound gaskets, compatible with a wide range of metals. Operates under the same temperature range as the 815 and supports pressure classes 150 to 2500.
THERMICULITE® 845 Flexpro™ Facing: Designed for kammprofile gaskets with various metallic core materials, supporting similar temperature and pressure ranges as the 835.

Thermiculite 715 Features
Thermiculite 715 is a coreless gasket material offering superior temperature and chemical resistance, fire safety, and non-contaminating properties. It is a cost-effective alternative to traditional materials like fiber, graphite, and PTFE.

Performance Comparison
Thermiculite 715 outperforms conventional gasket materials in chemical resistance, fire safety, oxidation resistance, purity, gasket integrity at temperatures above 500°F, and saturated steam compatibility.

Physical and Design Properties

Density: 1.8 g/cm³ (112 lbs/ft³)
Compressibility: 10%
Recovery: >45%
Tensile Strength: 11 MPa (1595 psi)
Gas Permeability: <1.0 mL/min
Creep Relaxation: 21%
Residual Stress: 25 MPa (3630 psi)
Maximum Temperature: 850°F (454°C)
Maximum Pressure: 2030 psig (140 bar)

Chemical Compatibility
Thermiculite 715 is compatible with a wide range of chemicals, including acids, caustics, cryogenics, halogens, monomers, and hydrocarbons, with some exceptions like fluorine.

Contact Information
Flexitallic provides contact details for their offices in the USA, UK, and China, along with their websites for further information.

Catalog excerpts

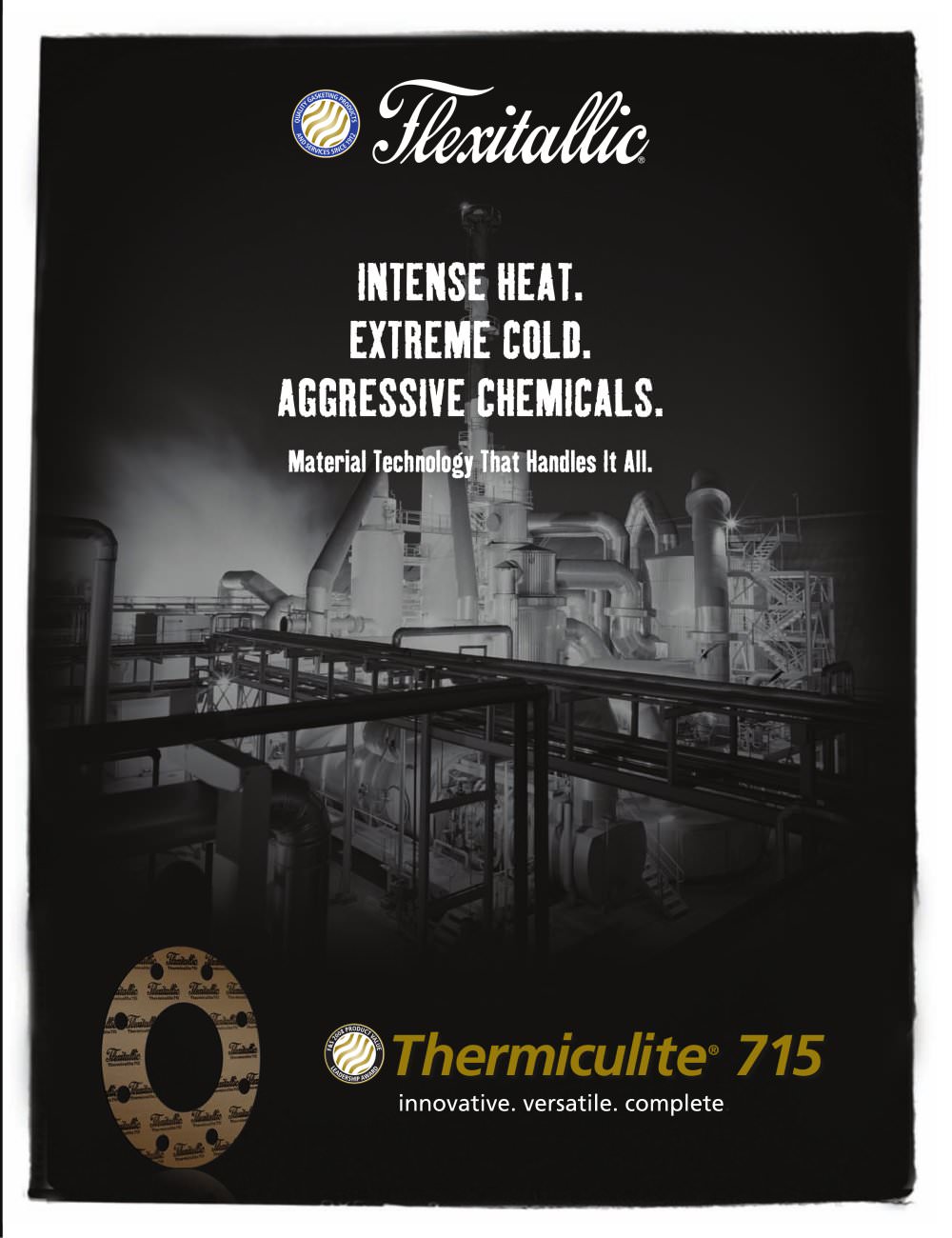

Class 150 to 300 Critical service seals, problem applications, high temperatures, aggressive chemicals, oxidizing environments. Thermiculite sheet reinforced with a 0.004” 316 stainless steel tanged core. Available in thicknesses of 1/32”, 1/16”, and 1/8” in meter by meter (standard) and 60” x 60” sheet. Cut gaskets also available in all shapes and sizes. Cryogenics to 1800°F / 980°C Class 150 to 2500 Thermiculite filler material for spiral wound gaskets. Wide range of metals available. THERMICULITE® 845 Flexpro™ (kammprofile) Facing Cryogenics to 1800°F / 980°C Class 150 to 2500 QUAL ITY 19 12 D CE SKETING PR GA SE S UCT OD QUAL ITY CE Critical service seals, problem applications, high temperatures, aggressive chemicals, oxidizing environments. D AN E S SI N E S SI N INTENSE HEAT. EXTREME COLD. AGGRESSIVE CHEMICALS. Critical service seals, problem applications, high temperatures, aggressive chemicals, oxidizing environments. AN S UCT OD SKETING PR GA R V IC R V IC Material Technology That Handles It All. Thermiculite facing material for kammprofile gaskets. Wide range of metallic core materials available. SE SE RV IC 19 12 THERMICULITE® 835 Spiral Wound Filler SKETING PR GA 19 12 Cryogenics to 1800°F / 980°C QUAL ITY TYPICAL USE S UCT OD PRESSURE RANGE D TEMPERATURE RANGE AN PRODUCT TYPE THERMICULITE® 815 Tanged Sheet Thermiculite 800 Critical Service Series ES SIN CE Contact your local Allied Distributor: Flexitallic, Ltd. Flexitallic Ltd. Scandinavia Mill Hunsworth Lane Cleckheaton BD19 4LN United Kingdom phone: +44 1274 851273 www.flexitallic.eu www.flexitallic.com Flexitallic China Flexitallic Sealing Technology Co., Ltd. Building 3 South Wujiang Export Processing Zone, 688 Pangjin Road Wujiang, Jiangsu 215200 P.R. China phone: +86 512 6303 2839 KW208-5K Flexitallic L.P. 6915 Highway 225 Deer Park, TX 77536 USA phone: +1 281.604.2400 ® Flexitallic® Thermiculite, Flexpro™ are registered trademarks of The Flexitallic Group, Inc. , © 2009 The Flexitallic Group, Inc. All rights reserved worldwide. Thermiculite 715 ®
