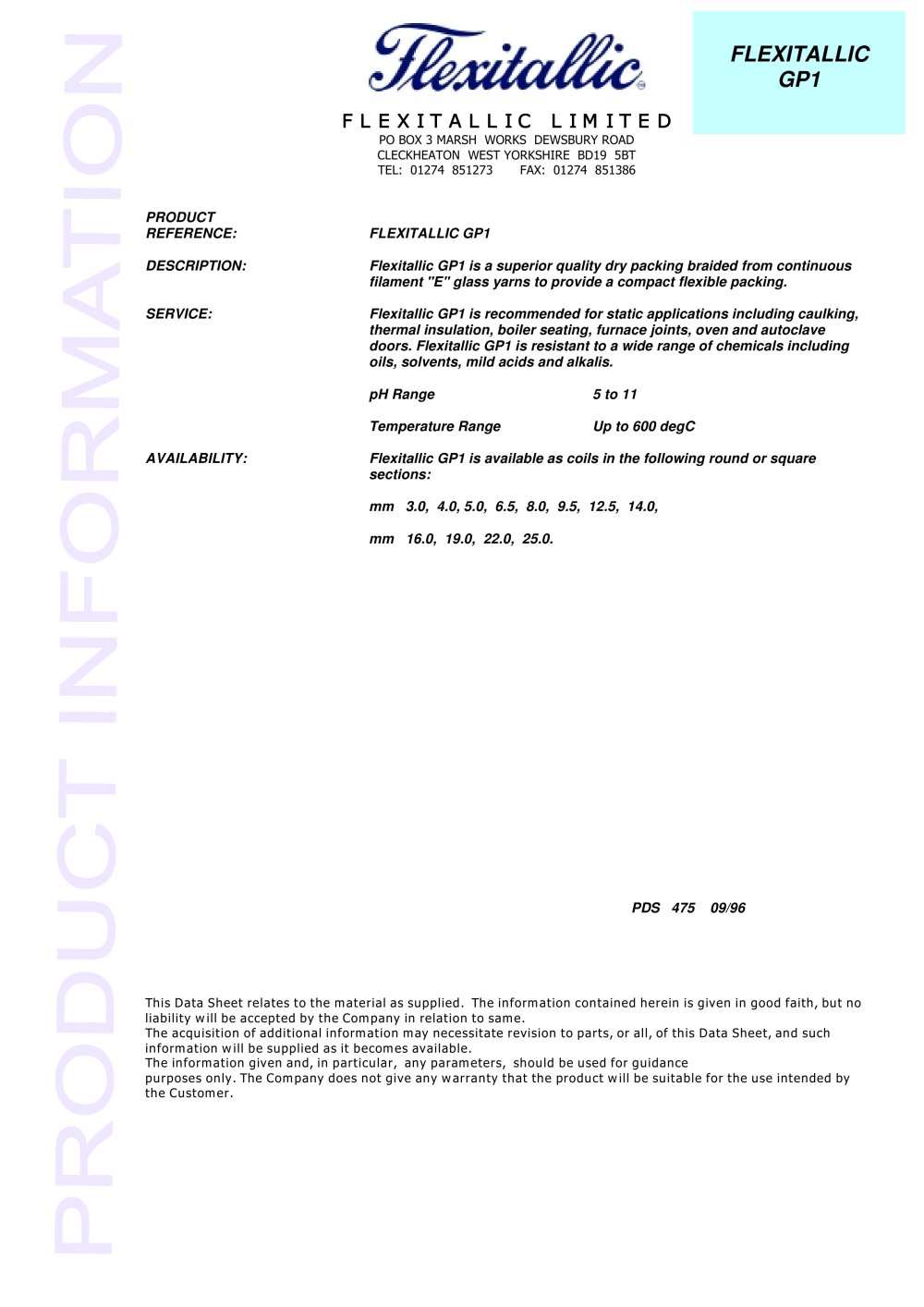

FLEXITALLIC GP1 FLEXITALLIC LIMITED PO BOX 3 MARSH WORKS DEWSBURY ROAD CLECKHEATON WEST YORKSHIRE BD19 5BT TEL: 01274 851273 FAX: 01274 851386 PRODUCT REFERENCE: FLEXITALLIC GP1 DESCRIPTION: Flexitallic GP1 is a superior quality dry packing braided from continuous filament "E" glass yarns to provide a compact flexible packing. SERVICE: Flexitallic GP1 is recommended for static applications including caulking, thermal insulation, boiler seating, furnace joints, oven and autoclave doors. Flexitallic GP1 is resistant to a wide range of chemicals including oils, solvents, mild acids and alkalis. pH Range Temperature Range AVAILABILITY: 5 to 11 Up to 600 degC Flexitallic GP1 is available as coils in the following round or square sections: mm 3.0, 4.0, 5.0, 6.5, 8.0, 9.5, 12.5, 14.0, mm 16.0, 19.0, 22.0, 25.0. PDS 475 09/96 This Data Sheet relates to the material as supplied. The information contained herein is given in good faith, but no liability will be accepted by the Company in relation to same. The acquisition of additional information may necessitate revision to parts, or all, of this Data Sheet, and such information will be supplied as it becomes available. The information given and, in particular, any parameters, should be used for guidance purposes only. The Company does not give any warranty that the product will be suitable for the use intended by the Customer.
Open the catalog to page 1
HEALTH AND SAFETY Because of the processes which take place during manufacture, the product is believed to present no health and safety hazard and, under normal handling and use it is unlikely that the product will give rise to significant levels of exposure to constituents materials. FLEXITALLIC GP1 contains glass fibre. Under harsh mechanical treatment (e.g. abrasion) the constituents may give rise to irritant dust which, in extreme cases of exposure, could lead to more serious respiratory problems. Occupational exposure to such dusts should therefore be minimised and kept below relevant...
