FLEXITALLIC ENVIROFLEX 500

FLEXITALLIC ENVIROFLEX 500
2Pages

Catalog excerpts

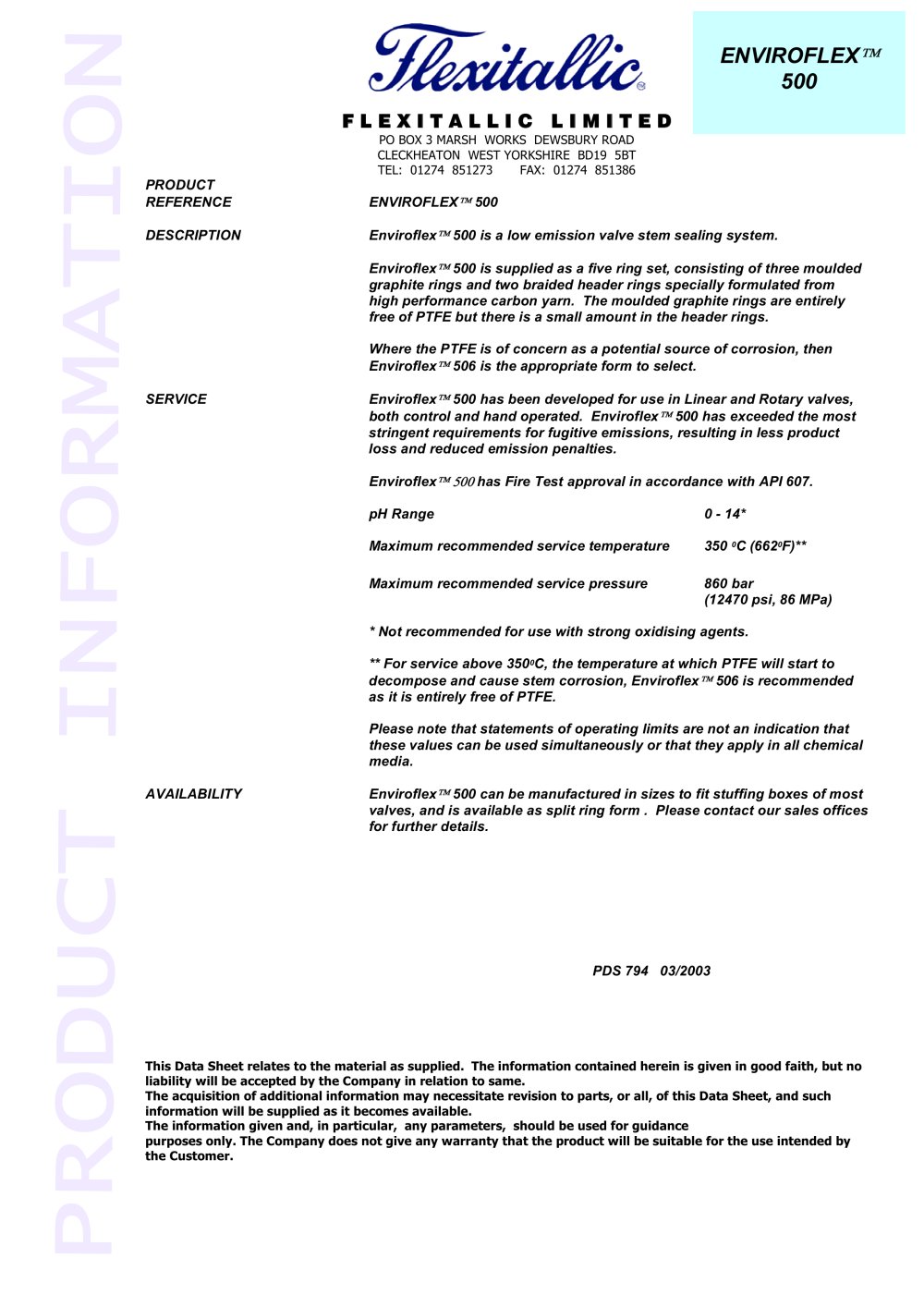

FLEXITALLIC LIMITED PO BOX 3 MARSH WORKS DEWSBURY ROAD CLECKHEATON WEST YORKSHIRE BD19 5BT Enviroflex™500 is a low emission valve stem sealing system. Enviroflex™500 is supplied as a five ring set, consisting of three moulded graphite rings and two braided header rings specially formulated from high performance carbon yarn. The moulded graphite rings are entirely free ofPTFE but there is a small amount in the header rings. Where the PTFE is of concern as a potential source of corrosion, then Enviroflex™506 is the appropriate form to select. Enviroflex™500 has been developed for use in Linear and Rotary valves, both control and hand operated. Enviroflex™500 has exceeded the most stringent requirements for fugitive emissions, resulting in less product loss and reduced emission penalties. Enviroflex™500has Fire Test approval in accordance with API 607. Maximum recommended service temperature 350 °C (662°F)** Maximum recommended service pressure * Not recommended for use with strong oxidising agents. ** For service above 350°C, the temperature at which PTFE will start to decompose and cause stem corrosion, Enviroflex™506 is recommended as it is entirely free of PTFE. Please note that statements of operating limits are not an indication that these values can be used simultaneously or that they apply in all chemical Enviroflex™500 can be manufactured in sizes to fit stuffing boxes of most valves, and is available as split ring form. Please contact our sales offices This Data Sheet relates to the material as supplied. The information contained herein is given in good faith, but no liability will be accepted by the Company in relation to same. The acquisition of additional information may necessitate revision to parts, or all, of this Data Sheet, and such information will be supplied as it becomes available. The information given and, in particular, any parameters, should be used for guidance purposes only. The Company does not give any warranty that the product will be suitable for the use intended by

Open the catalog to page 1

HEALTH AND SAFETY Because of the processes which take place during manufacture, the product is believed to present no health and safety hazard and, under normal handling and use it is unlikely that the product will give rise to significant levels of exposure to constituent materials. ENVIROFLEXÔ 500 contains graphite, carbon yarn, PTFE and a lubricant. Under harsh mechanical treatment (e.g. abrasion) the constituents may give rise to irritant dust which, in extreme cases of exposure, could lead to more serious respiratory problems. Occupational exposure to such dusts should therefore be...

Open the catalog to page 2
