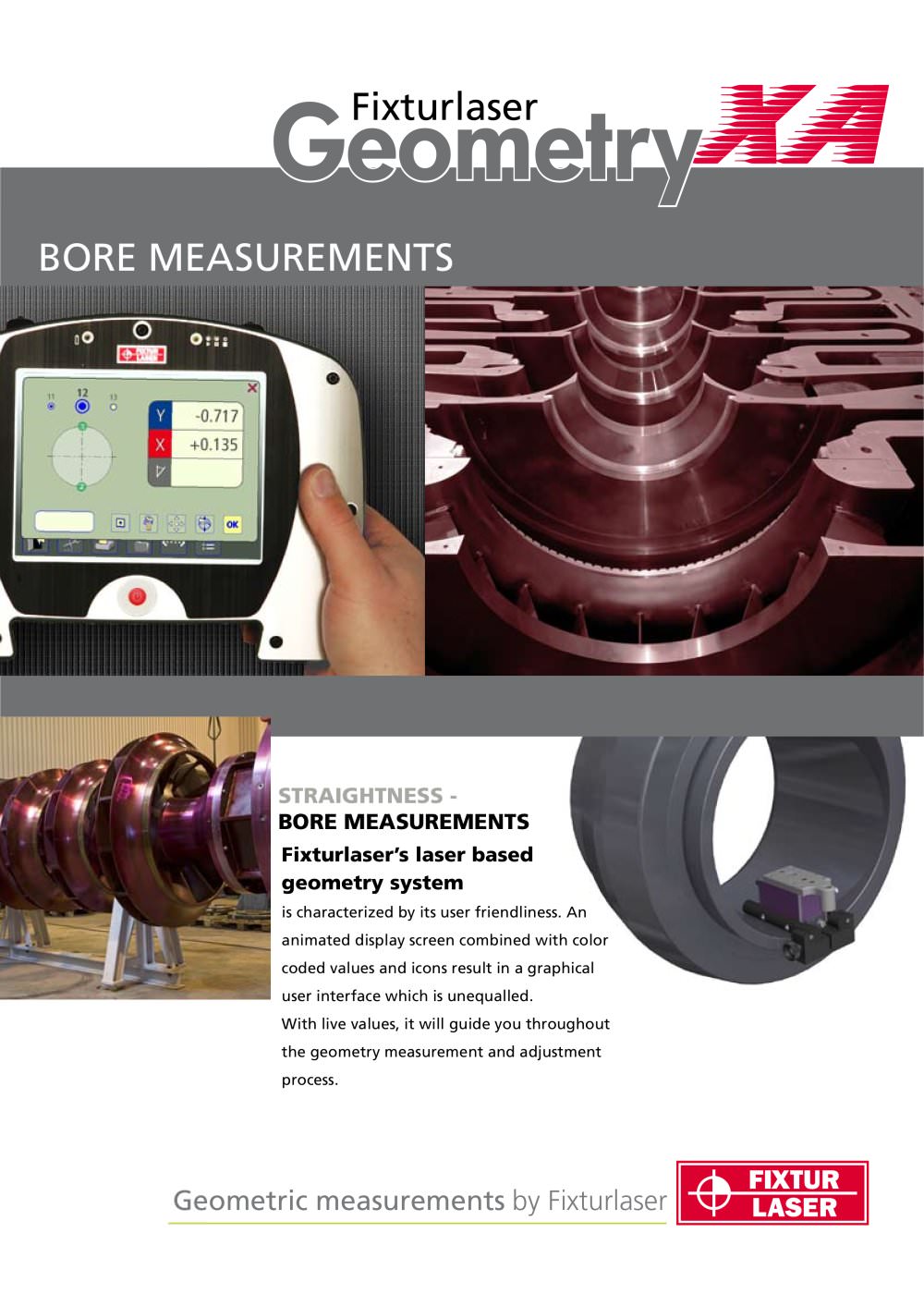

Fixturlaser Geometry BORE MEASUREMENTS STRAIGHTNESS - BORE MEASUREMENTS Fixturlaser’s laser based geometry system is characterized by its user friendliness. An animated display screen combined with color coded values and icons result in a graphical user interface which is unequalled. With live values, it will guide you throughout the geometry measurement and adjustment process. Geometric measurements by Fixturlaser

FIXTURLASER XA GEOMETRY The Fixturlaser XA Geometry package shares many of the advanced technology components and functions with the much appreciated Fixturlaser XA shaft alignment system. The graphical user interface is icon based facilitating interpretation. It has the same animated color screen with color coded values and results, and the green arrows showing in which direction to move the machine or the measurement object. The system is wireless for express data transfer; i.e. no cables between transmitters, detectors and the display box, so that you can move around in full freedom when...

Bore Measurement Straightness with the Clock Method 1. express Configuration Quick and easy to configure Pre-defined configuration 2. express Measurement Distinct overall view of the measurement Instant display of measurement object’s position Color coded measurement points Measurement points can be registered in any order you prefer 3. express Adjustment Live values during the adjustment phase The angle guide displays the accepted (green) measurement point registration area Green arrows show you in which direction to adjust towards zero. Color coded measurement values Straightness with the...

Technical specification Fixturlaser XA Geometry 1-0832 Receiver Movable / 1-0833 Fixturlaser Receiver Stationary Housing Material: Anodized aluminium Operating Temp: 0 to 50°C (32 to 122°F) Storage Temp: -20 to 70°C (-4 to 158°F) Relative humidity: 10 – 90% Weight: 110 g (3.9 oz) Dimensions: 57 x 50 x 40 mm (2.2 x 2.0 x 1.6 in) (with cable attached) Dimensions: 124 x 50 x 40 mm (4.9 x 2.0 x 1.6 in) (with wireless transmitter 1-0835 attached) Environmental protection: IP 65 Detector: 2-axis PSD Detector size: 20 x 20 mm (0.8 x 0.8 in) Detector resolution: 1 ìm Measurement accuracy: 1% ± 3 ìm...
