Fixturlaser GO Basic
2Pages

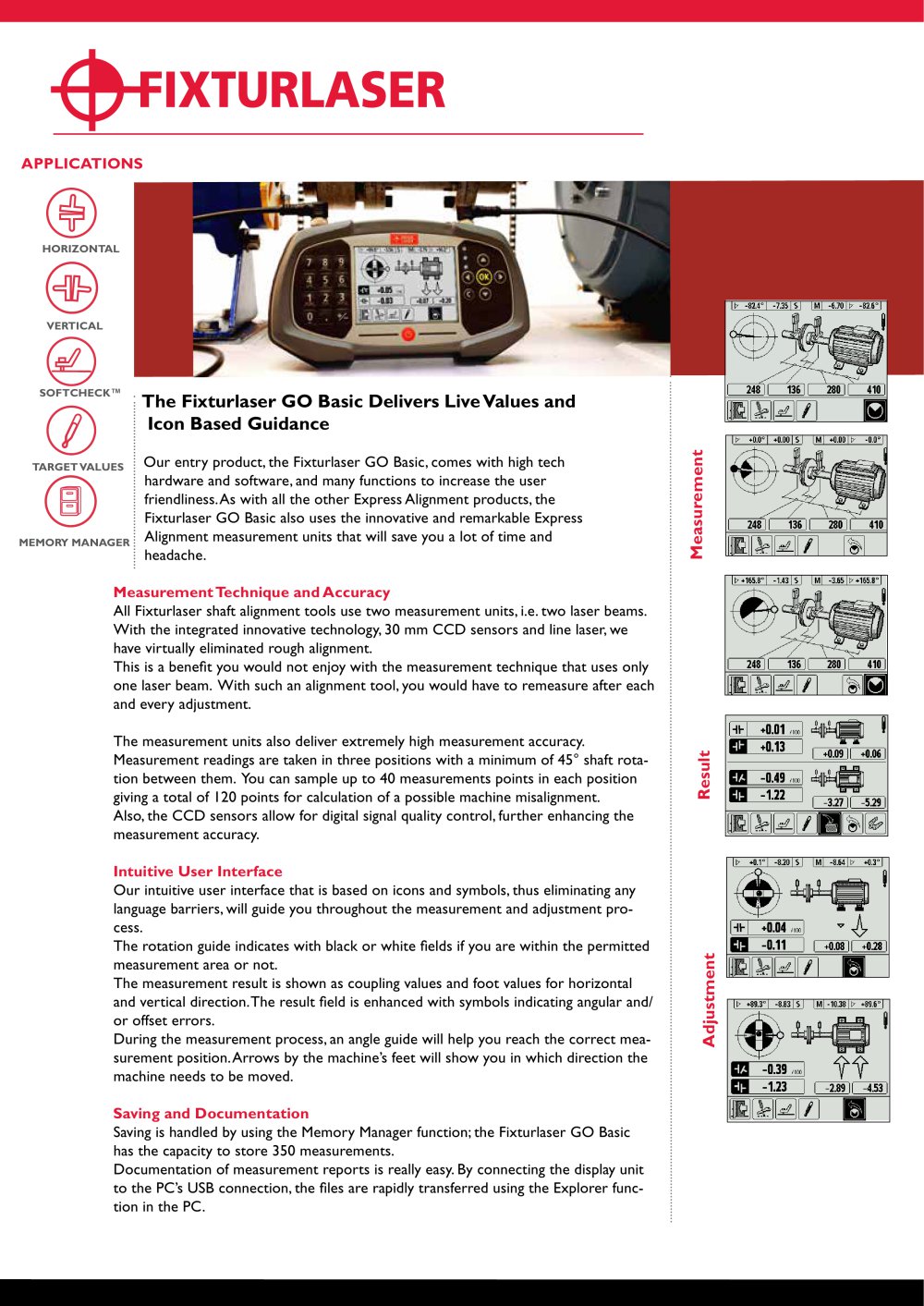

MEMORY MANAGER The Fixturlaser GO Basic Delivers Live Values and Icon Based Guidance Our entry product, the Fixturlaser GO Basic, comes with high tech hardware and software, and many functions to increase the user friendliness. As with all the other Express Alignment products, the Fixturlaser GO Basic also uses the innovative and remarkable Express Alignment measurement units that will save you a lot of time and Measurement Technique and Accuracy All Fixturlaser shaft alignment tools use two measurement units, i.e. two laser beams. With the integrated innovative technology, 30 mm CCD sensors and line laser, we have virtually eliminated rough alignment. This is a benefit you would not enjoy with the measurement technique that uses only one laser beam. With such an alignment tool, you would have to remeasure after each The measurement units also deliver extremely high measurement accuracy. Measurement readings are taken in three positions with a minimum of 45° shaft rota- tion between them. You can sample up to 40 measurements points in each position giving a total of 120 points for calculation of a possible machine misalignment. Also, the CCD sensors allow for digital signal quality control, further enhancing the measurement accuracy. Intuitive User Interface Our intuitive user interface that is based on icons and symbols, thus eliminating any language barriers, will guide you throughout the measurement and adjustment pro- The rotation guide indicates with black or white fields if you are within the permitted The measurement result is shown as coupling values and foot values for horizontal and vertical direction.The result field is enhanced with symbols indicating angular and/ During the measurement process, an angle guide will help you reach the correct mea- surement position. Arrows by the machine's feet will show you in which direction the machine needs to be moved. Saving is handled by using the Memory Manager function; the Fixturlaser GO Basic has the capacity to store 350 measurements. Documentation of measurement reports is really easy. By connecting the display unit to the PC's USB connection, the files are rapidly transferred using the Explorer func-

TRUE POSITION SENSING • BOTH SHAFTS’ POSITIONS MONITORED SIMULTANEOUSLY FIXTURLASER go bASIC - COMPLETE SYSTEm • LIVE MEASUREMENT VALUES DURING ADJUSTMENT Weight (incl. all standard parts): 6.8 kg (15 lbs) Storage Temperature: CASE Material: High Impact ABS Plastic Dust, water (5m/16 feet), and air tight with air pressure compensation valve ALIGNMENT INTELLIGENCE GRAPHIC USER INTERFACE • 30 MM CCD DETECTOR + LINE LASER = • ICON BASED Drop Test: 3 m (10 feet) on to concrete floor VIRTUALLY ELIMINATE ROUGH ALIGNMENT • DIGITAL SIGNAL QUALITY CONTROL è DISPLAY UNIT EDGE DETECTION, SIDE SPOT...
