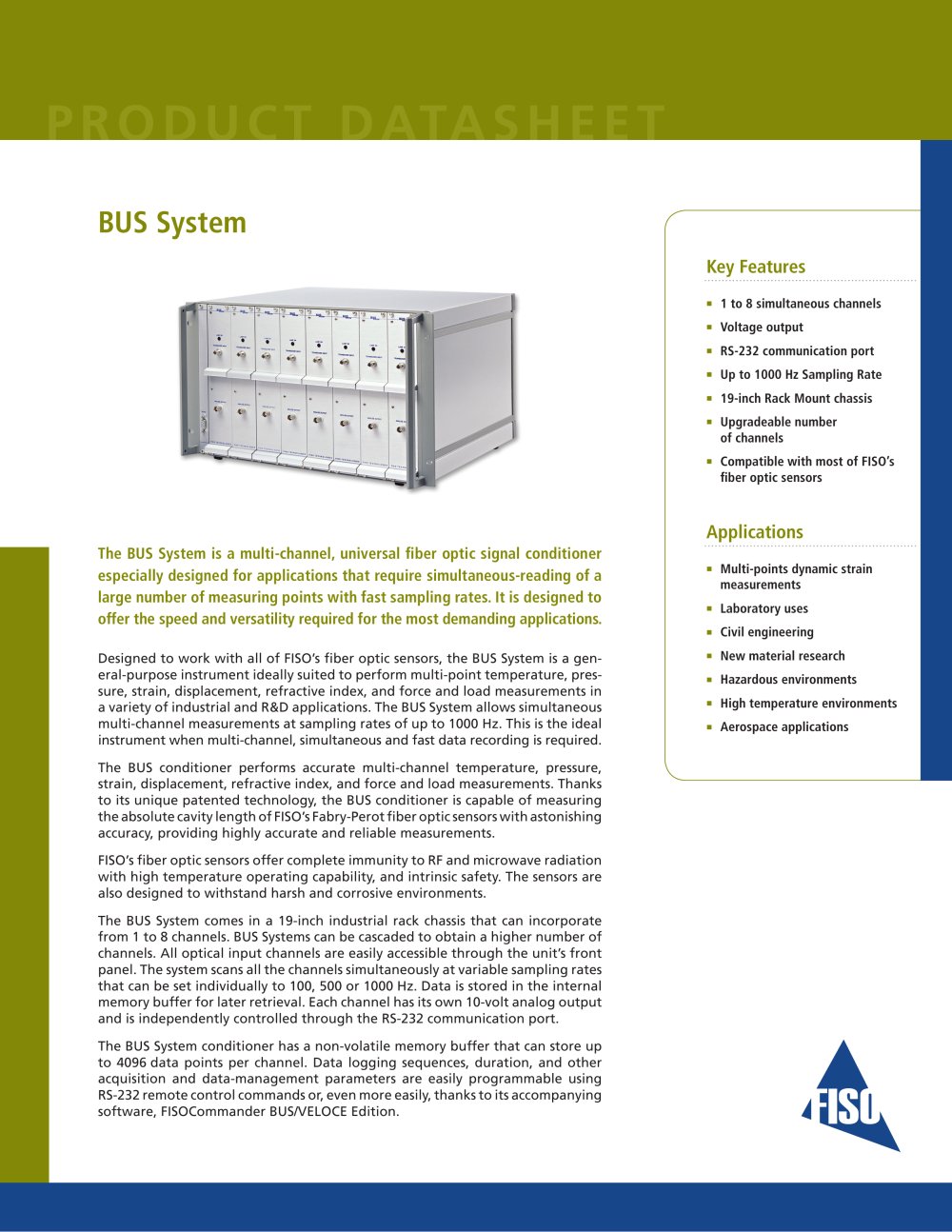

Signal Conditioners – Multichannel- Parallel BUS (universal; 1kHz) - 1

1 to 8 simultaneous channels Voltage output RS-232 communication port Up to 1000 Hz Sampling Rate 19-inch Rack Mount chassis Upgradeable number of channels Compatible with most of FISOs fi ber optic sensors > Multi-points dynamic strain measurements Laboratory uses Civil engineering > New material research Hazardous environments High temperature environments Aerospace applications >

Open the catalog to page 1

Signal Conditioners – Multichannel- Parallel BUS (universal; 1kHz) - 2

Number of channels 1 to 8 Sampling rate 100 Hz, 500 Hz, 1000 Hz Averaging 1 to 500 samples Precision > 1 0.05% of full scale Resolution > 1 0.01% of full scale Dynamic range 15 000 : 1 Data logging 4096 data points Analog outputs 10 V with BNC connector Communication RS-232 Upgradeability Flash ROM fi rmware Lamp life > 2 3000 hours of continuous use Weight Chassis 6.3 kg (13.9 lb) Module 1.2 kg (2.6 lb) Dimensions 19-inch rackmount Power requirements Chassis 28 W Module 15 W Operating temperature ѢȒ20C to 40аC (−4F to 104аF) > 1. Sensor specifi cation not included.2. Lamp is replaceable....

Open the catalog to page 2
