HERO/EED/EMC Solution – Temperature/Current Veloce 100 (conditioner; 200 kHz)

Product catalog summary

Overview: The VELOCE 100 Fiber Optic Temperature Monitor is an advanced, upgradeable multi-channel signal conditioner designed for electromagnetic interference (EMI) characterization on electronic explosive devices (EEDs). It offers simultaneous readings from multiple measuring points with fast sampling rates, specifically catering to bridge wire type EEDs.

Design and Functionality: The monitor is used with the FOT-HERO fiber optic temperature sensor, featuring a miniature probe for precise positioning and minimal heat sink effect. It provides a temperature resolution of 0.025°C at a 200 KHz sampling rate. The system's patented technology ensures accurate and reliable measurements with a linear response, allowing for sensor calibration with minimal reference points.

Physical Specifications: The VELOCE 100 is housed in a 19-inch industrial rack chassis, accommodating up to eight optical modules. Each module offers BNC ±5 volts analog output and can be independently controlled and upgraded via RS-232 or the FISOCommander BUS/VELOCE Edition software.

Key Features:

Temperature resolution down to 0.025°C
1 to 8 simultaneous channels
200 KHz sampling rate
Upgradeable number of channels

Applications: The monitor is suitable for EED applications, HERO testing, point measurement applications, airbag igniters, and EMI compatibility testing of sensitive parts.

Technical Specifications:

Number of channels: 1 to 8
Sampling rate: 200 KHz
Averaging: 0.005 to 100 ms
Precision: 0.3°C
Resolution: 0.03°C
Dynamic range: 150°C (302°F)
Analog outputs: ±5 V with BNC connector
Communication: RS-232
Upgradeability: Flash ROM firmware
Weight: Chassis 4.8 kg, Module 0.5 kg
Dimensions: 448.8 × 326 × 132.5 mm
Power requirements: Chassis 29 W, Module 4 W
Operating temperature: 15°C to 35°C

Contact Information: FISO Technologies Inc., 500 St-Jean-Baptiste Ave., suite 195, Québec, QC, Canada G2E 5R9. Phone: (418) 688-8065, Fax: (418) 688-8067, Email: [email protected], Web: www.fiso.com

Note: FISO Technologies Inc. reserves the right to change product specifications without prior notice.

Catalog excerpts

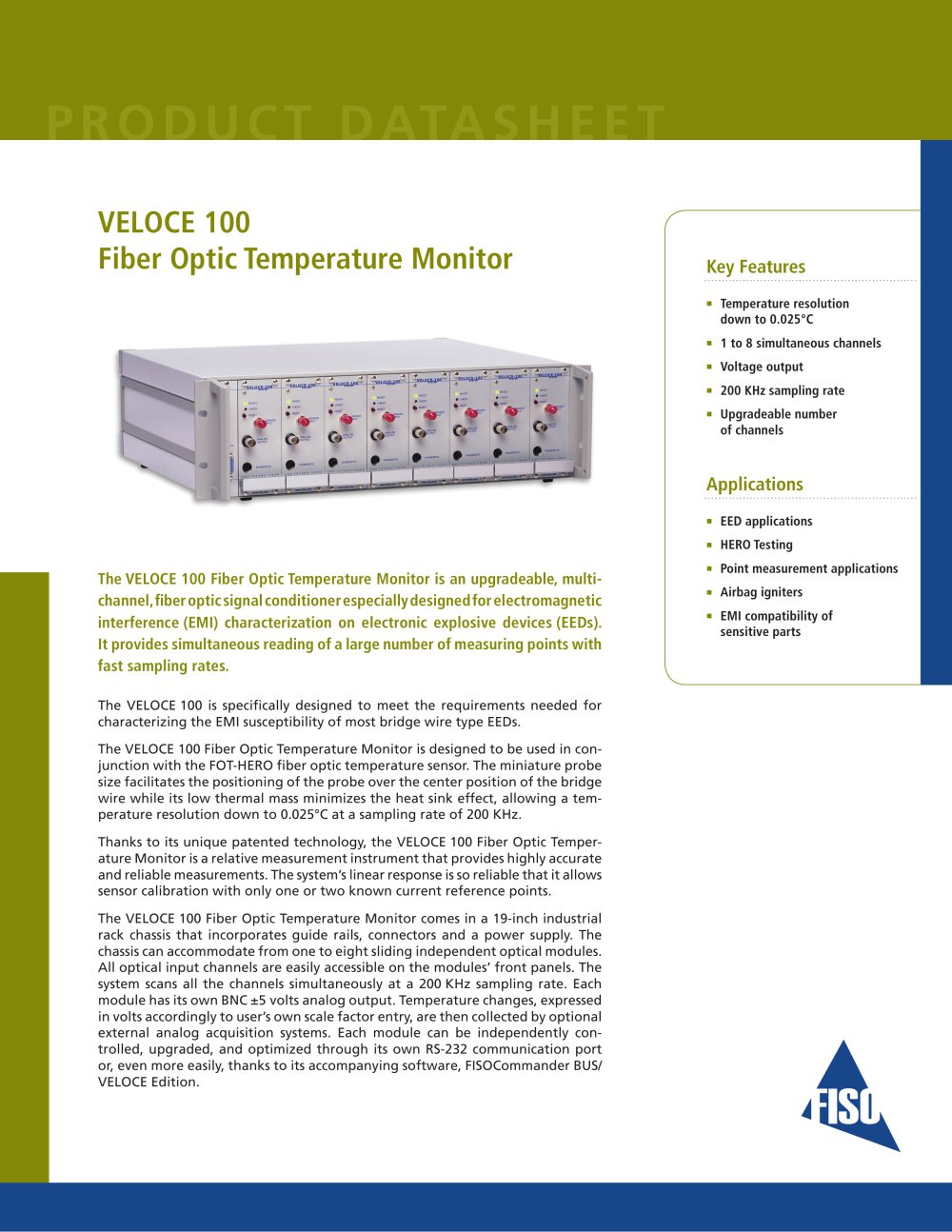

HERO/EED/EMC Solution – Temperature/Current Veloce 100 (conditioner; 200 kHz)-1

Temperature resolution down to 0.025C 1 to 8 simultaneous channels Voltage output 200 KHz sampling rate Upgradeable number of channels > EED applications HERO Testing > Point measurement applications Airbag igniters EMI compatibility of sensitive parts >

Open the catalog to page 1

HERO/EED/EMC Solution – Temperature/Current Veloce 100 (conditioner; 200 kHz)-2

Number of channels 1 to 8 Sampling rate 200 KHz Averaging 0.005 to 100 ms Precision 0.3C Resolution 0.03аC Dynamic range 150C (302аF) Analog outputs 5 V with BNC connector Communication RS-232 Upgradeability Flash ROM fi rmware Weight Chassis 4.8 kg (10.6 lb) Module 0.5 kg (1.1 lb) Dimensions (W ї D H) 448.8 ח 326 132.5 mm (17.7 ח 12.8 5.2 in) Power requirements Chassis 29 W Module 4 W Operating temperature 15װC to 35C (59аF to 95F) > Drawing Number SCH-00501 Phone (418) 688-8065 Email info@fi so.com Fax (418) 688-8067 Web www.fi so.com FISO Technologies Inc. 500 St-Jean-Baptiste Ave., suite...

Open the catalog to page 2
