Fiber Optic Strain Sensors FOS-N (standard)

Product catalog summary

Overview: The FOS-N is a fiber optic strain sensor designed for composite material engineering and civil engineering applications, such as structural health monitoring of buildings, bridges, and tunnels. It offers high accuracy, immunity to EMI/RFI, and resistance to corrosive environments.

Key Features:

Immune to EMI/RFI and lightning
Intrinsically safe with static/dynamic response
High sensitivity and resolution (0.01% full scale)
Signal transmission over long distances without interference from cable bending
Absolute measurements in engineering units

Applications: The sensor is suitable for torque measurement, new material research and development, civil engineering, tunnel linings, nuclear power plants, structural health monitoring, and environments with high EMI/RFI or corrosive conditions.

Specifications:

Strain range: ±1000 με, ±2500 με, ±5000 με
Resolution: 0.01% of full scale
Transverse sensitivity: <0.1% of full scale
Connector type: ST connector
Operating temperature: −40°C to 250°C (−40°F to 482°F)
Glass tube dimensions: ±1000 με: 10 mm; ±2500 or ±5000 με: 8.5 mm

Technology: Based on Fabry-Perot interferometer technology, the FOS-N sensor provides reliable strain measurements over long distances without affecting accuracy. It is not sensitive to fiber manipulation, making it ideal for embedding in composite materials.

Contact Information: FISO Technologies Inc., 500 St-Jean-Baptiste Ave., suite 195, Québec, QC, Canada G2E 5R9. Phone: (418) 688-8065, Fax: (418) 688-8067, Email: [email protected], Web: www.fiso.com

Catalog excerpts

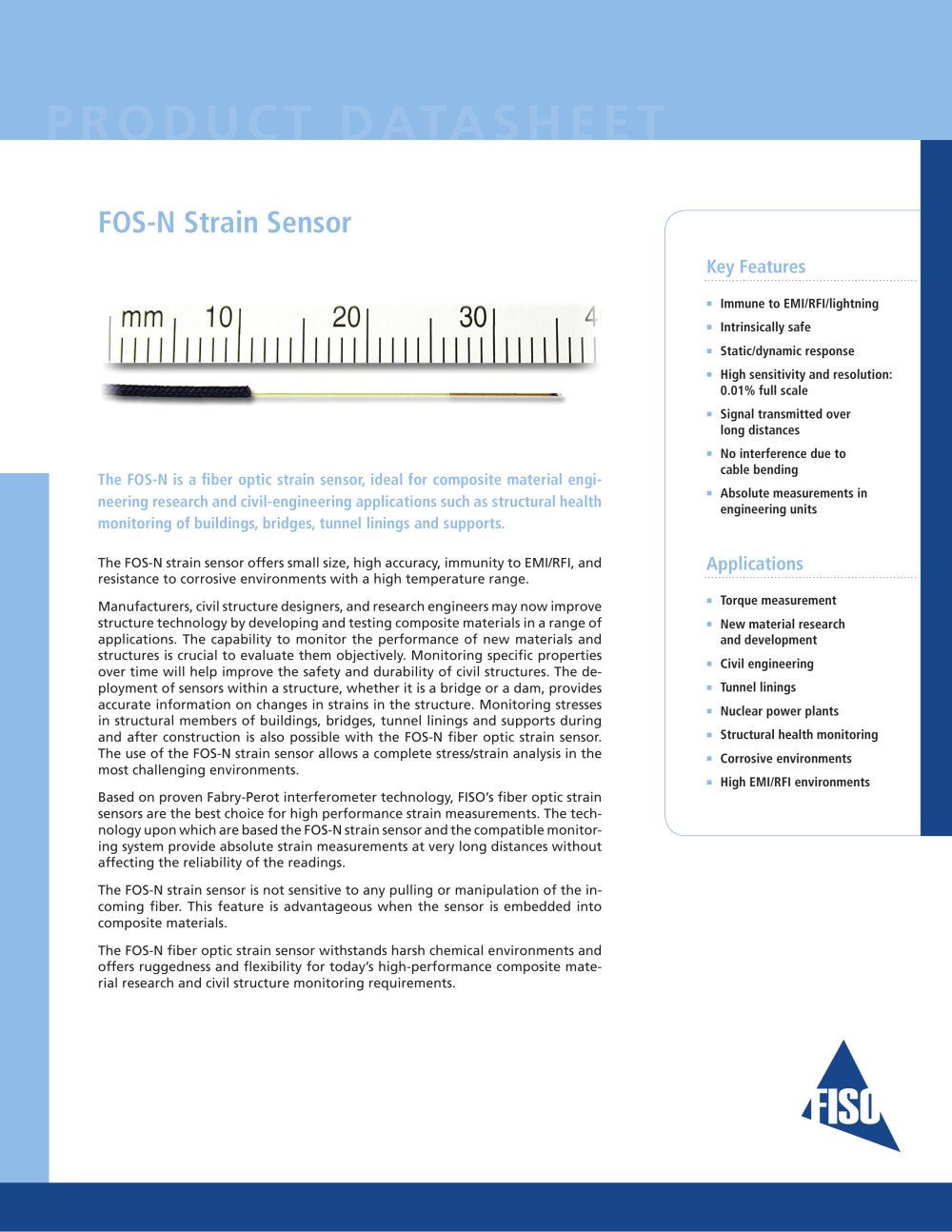

Fiber Optic Strain Sensors FOS-N (standard)-1

Immune to EMI/RFI/lightning Intrinsically safe Static/dynamic response High sensitivity and resolution: 0.01% full scale Signal transmitted over long distances No interference due to cable bending > Absolute measurements in engineering units > Torque measurement New material research and development Civil engineering Tunnel linings Nuclear power plants Structural health monitoring Corrosive environments High EMI/RFI environments >

Open the catalog to page 1

Fiber Optic Strain Sensors FOS-N (standard)-2

Strain range 1000 ѵ , 2500 ѵ , 5000 ѵ Resolution > 1 0.01% of full scale Transverse sensitivity <0.1% of full scale Connector type ST connector Operating temperature > 2 −40C to 250аC (−40F to 482аF) Glass tube dimensions 1000 ѵ : 10 mm ; 2500 or ѱ5000 : 8.5 mm > 1. Signal conditioner dependent.2. Adhesive dependent. Installation over 200հC (392F) susceptible to creeping. Drawing Number SCH-00506 Phone (418) 688-8065 Email info@fi so.com Fax (418) 688-8067 Web www.fi so.com FISO Technologies Inc. 500 St-Jean-Baptiste Ave., suite 195QuЩbec, QC Canada G2E 5R9 FISO Technologies Inc. reserves the...

Open the catalog to page 2
