Fiber Optic Refractive Sensor
Product catalog summary
Overview: The FRI is a fiber optic refractive index sensor designed for measuring the refractive index of fluids in industrial, chemical, and food processing applications. It is particularly useful for measuring oil concentration ratios and provides continuous in-situ monitoring, eliminating the need for manual sampling.
Design and Functionality: The sensor operates using a liquid-filled Fabry-Perot optical cavity, where the cavity length varies with the refractive index of the liquid. This variation is measured using white light interferometer technology, allowing precise refractive index determination.
Key Features: The FRI sensor is intrinsically safe, immune to EMI/RFI, and offers a resolution of 0.0001 RI or 0.036% oil concentration ratio. It is suitable for harsh environments and supports in-situ process monitoring.
Specifications: The sensor covers a refractive index range from 1.0000 to 1.7000 RI with an accuracy of ±0.0005 RI. It operates within a temperature range of 0°C to 100°C and uses an ST connector.
Applications: The FRI sensor is applicable in industrial environments, chemical applications, research and development, and quality control, especially under harsh and hazardous conditions.
Models: Available in two models: the miniature FRI-BA and the rugged stainless steel FRI-NP, both suitable for industrial applications.
Contact Information: FISO Technologies Inc., 500 St-Jean-Baptiste Ave., suite 195, Québec, QC G2E 5R9, CANADA. Phone: 418-688-8065, Email: [email protected], Web: www.fiso.com.
See more
Catalog excerpts
From 1.0000 to 1.7000 RI range Intrinsically safe Immune to EMI/RFI Resolution of 0.0001 RI or 0.036% of Oil Concentration Ratio in refrigerant In-situ measurement > In-situ process monitoring Chemical applications Harsh and hazardous environments Research and development >

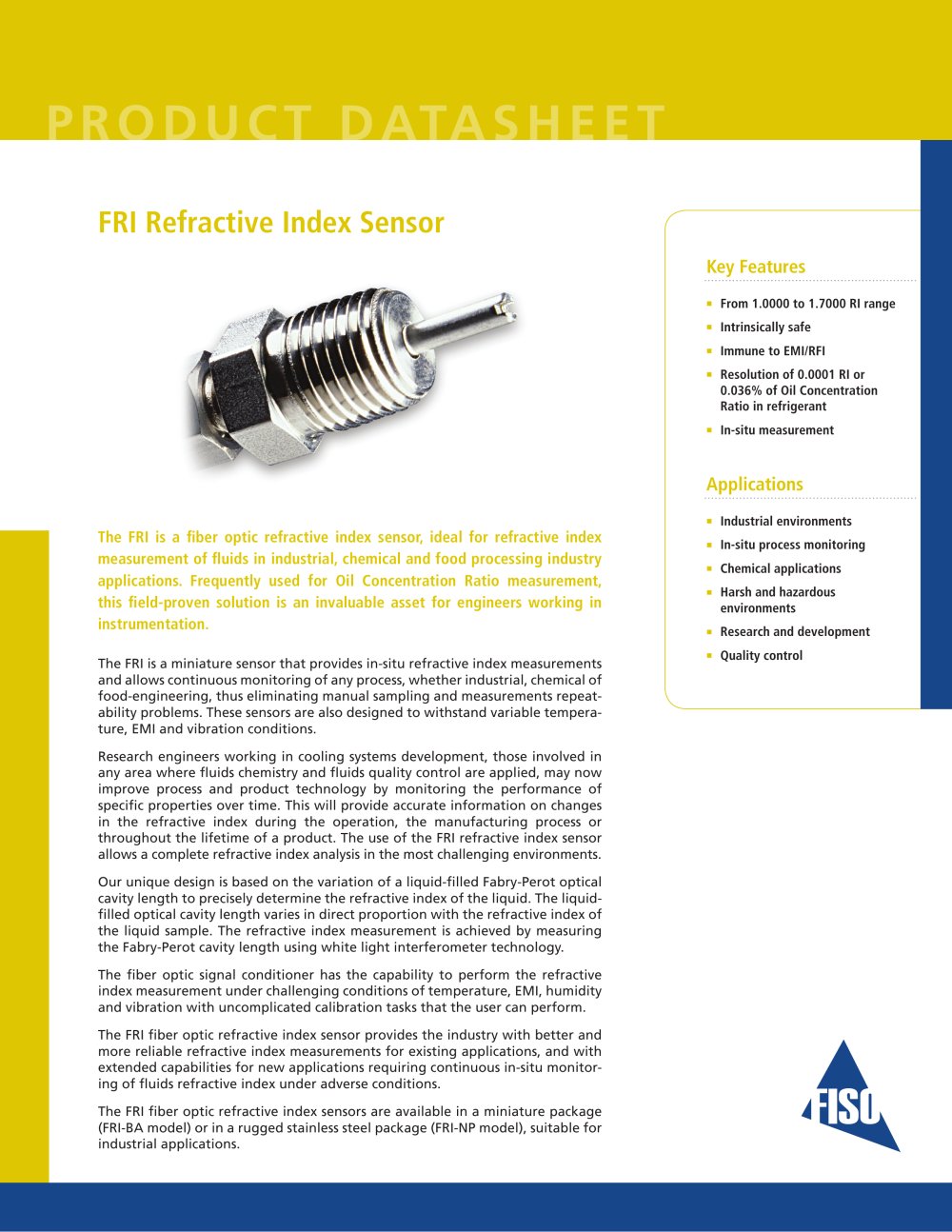

Open the catalog to page 1
1. Signal conditioner dependent. > Drawing Numbers SCH-00508 Ж SCH-00509 Phone 418-688-8065 Email info@fi so.com Fax 418-688-8067 Web www.fi so.com FISO Technologies Inc. 500 St-Jean-Baptiste Ave., suite 195Qubec, QC G2E 5R9 CANADA > FISO Technologies Inc. reserves the right to make any changes in the specifi cations of their products without prior notice. 2008 FISO Technologies Inc.Imprim驩 au Canada / Printed in CanadaDOC: MC-00006R10 size="-1">
