Fiber Optic Displacement Sensor

Product catalog summary

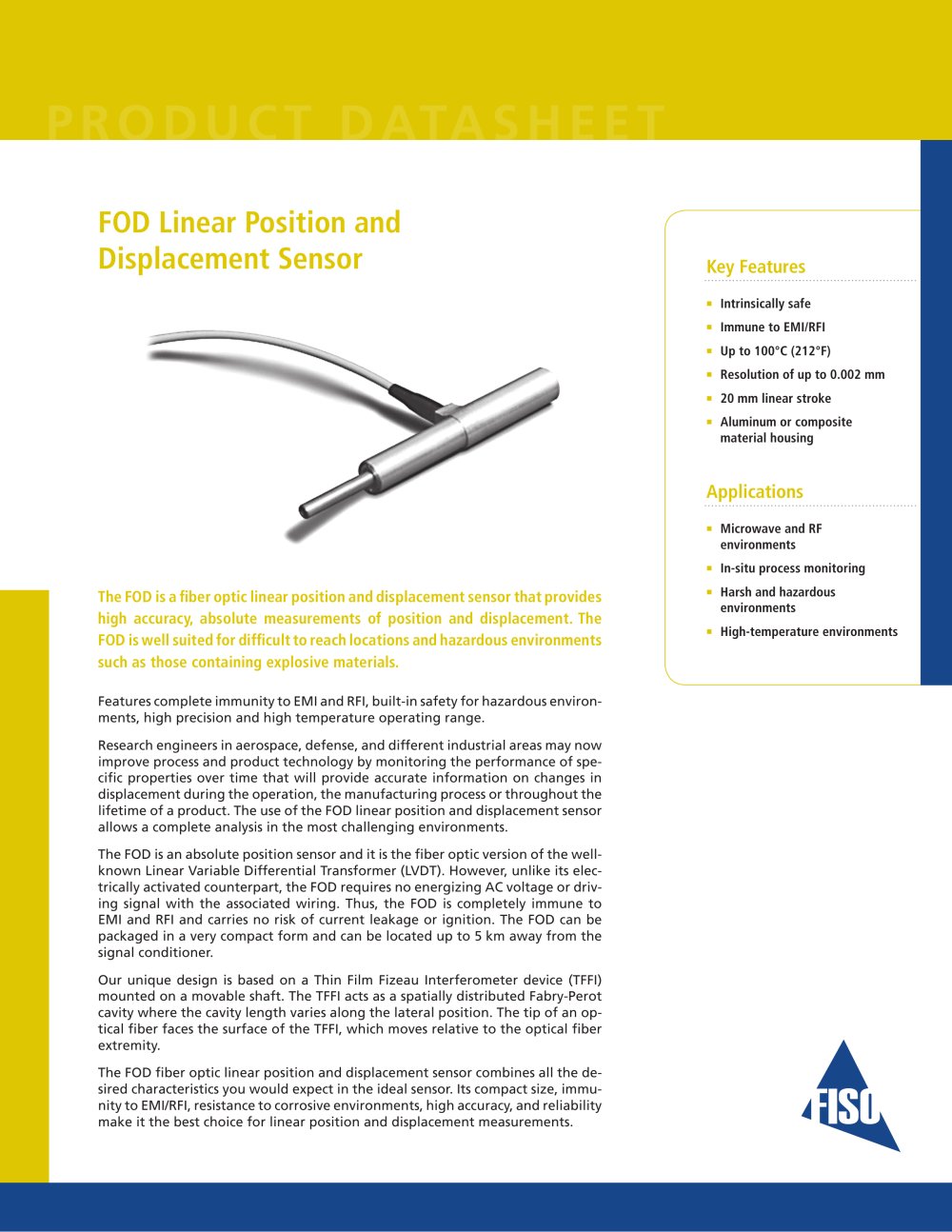

Overview: The FOD is a fiber optic linear position and displacement sensor designed for high accuracy and absolute measurements in challenging environments, including those with explosive materials. It is immune to EMI and RFI, making it safe for hazardous conditions.

Key Features: The sensor is intrinsically safe, operates up to 100°C (212°F), and offers a resolution of up to 0.002 mm with a 20 mm linear stroke. It is housed in aluminum or composite materials.

Applications: Suitable for microwave and RF environments, in-situ process monitoring, and harsh and hazardous environments, including high-temperature conditions.

Specifications: The FOD has a linear stroke of 20 mm (0.8 in), a resolution of 0.002 mm (0.00008 in), and an accuracy of ±0.02 mm (0.0008 in). It uses an ST connector and operates within a temperature range of −20°C to 100°C (−4°F to 212°F), with options for other temperature ranges upon request.

Design and Functionality: The sensor is based on a Thin Film Fizeau Interferometer device (TFFI) mounted on a movable shaft, acting as a Fabry-Perot cavity. It does not require energizing AC voltage, making it immune to EMI/RFI and safe from current leakage or ignition.

Contact Information: FISO Technologies Inc., 500 St-Jean-Baptiste Ave., suite 195, Québec, QC, Canada G2E 5R9. Phone: (418) 688-8065, Fax: (418) 688-8067, Email: [email protected], Web: www.fiso.com.

Note: FISO Technologies Inc. reserves the right to change product specifications without notice.
