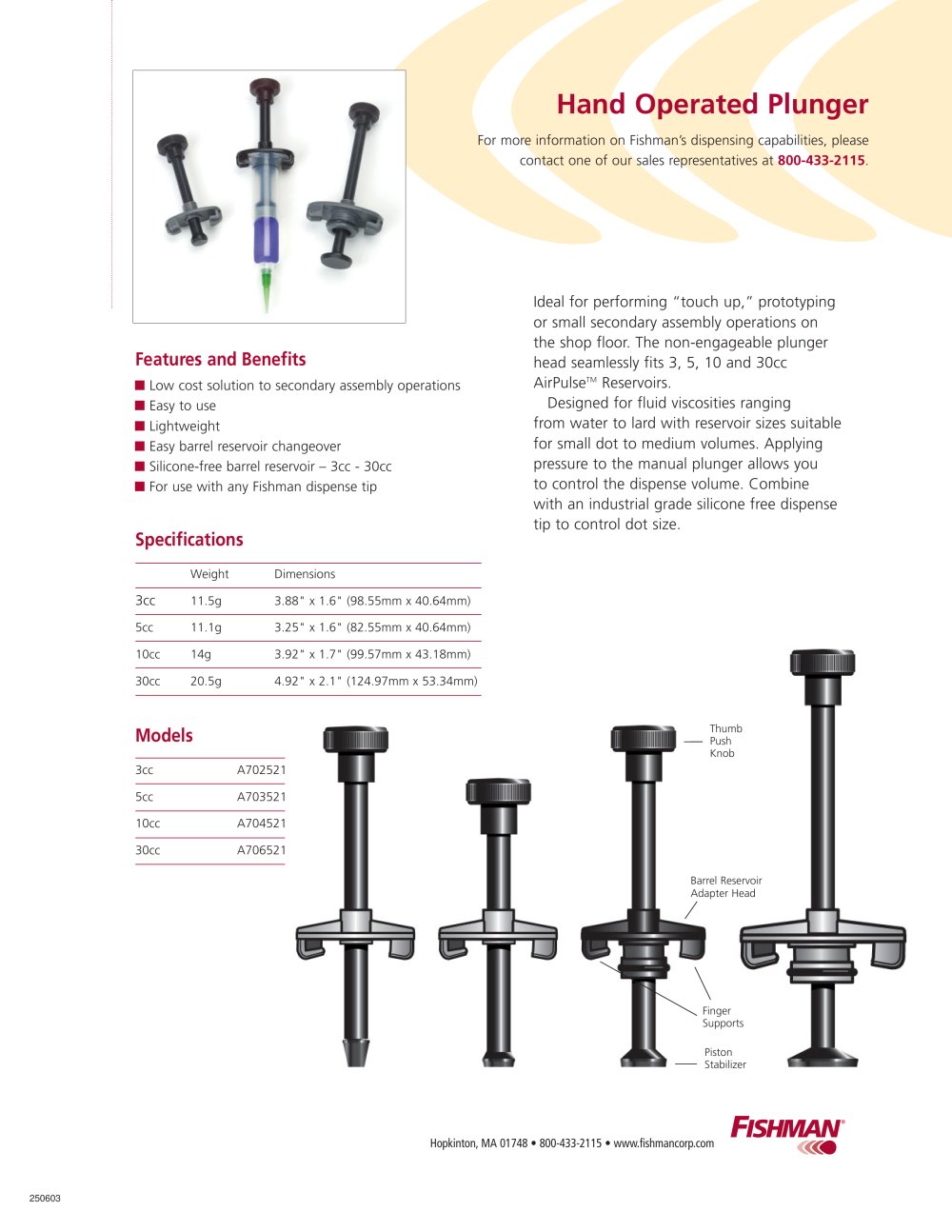

Hand Operated Plunger

Product catalog summary
Features and Benefits
  • Cost-effective solution for secondary assembly operations.
  • User-friendly and lightweight design.
  • Easy changeover of barrel reservoirs.
  • Silicone-free barrel reservoirs available in sizes from 3cc to 30cc.
  • Compatible with any Fishman dispense tip.
Specifications
CapacityWeightDimensions
3cc11.5g3.88" x 1.6" (98.55mm x 40.64mm)
5cc11.1g3.25" x 1.6" (82.55mm x 40.64mm)
10cc14g3.92" x 1.7" (99.57mm x 43.18mm)
30cc20.5g4.92" x 2.1" (124.97mm x 53.34mm)
Models
  • 3cc: A702521
  • 5cc: A703521
  • 10cc: A704521
  • 30cc: A706521
Applications

Ideal for touch-up, prototyping, or small secondary assembly operations on the shop floor. The plunger head fits seamlessly with 3, 5, 10, and 30cc AirPulseTM Reservoirs.

Design and Usage

Designed for fluid viscosities ranging from water to lard, with reservoir sizes suitable for small dot to medium volumes. Manual plunger pressure allows control over dispense volume. Use with an industrial-grade silicone-free dispense tip to control dot size.

Components
  • Thumb Push Knob
  • Barrel Reservoir
  • Adapter Head
  • Piston Stabilizer
  • Finger Supports
