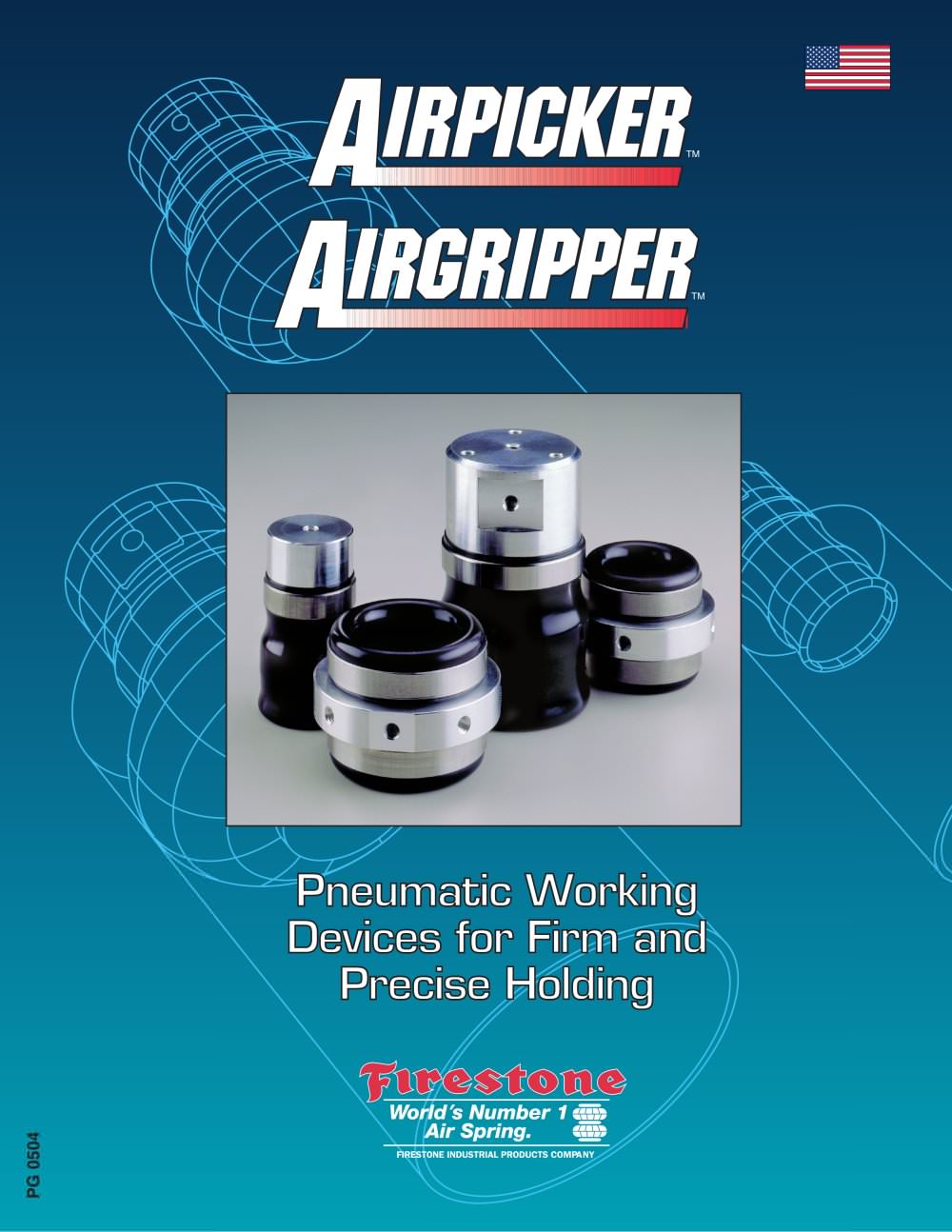

Overview: The document provides technical specifications and guidelines for Firestone's AirPicker™ and AirGripper™ pneumatic devices, designed for firm and precise holding of objects. These devices are suitable for handling various shapes and sizes, including delicate items like photosensitive copier drums and bottles.

Specifications:

• AirPicker™ and AirGripper™ are available in neoprene and silicone rubber materials.
• Deflated air pressure is 0 psi, with fully inflated pressures ranging from 10 psi to 35 psi depending on the model.
• Imperial AirPickers come with threaded nose cone holes, and Firestone provides nose cones as per the selection guide.

Advantages:

• Conform to any shape and handle multiple sizes with one gripper.
• Delicate handling with non-marring contact.
• High load capacity and long life in dusty environments.
• No lubrication required and low cost.

Precautions:

• Do not exceed maximum recommended working pressure.
• Use air or nitrogen to inflate to reduce oxidation and permeation.
• Maintain recommended temperature ranges: 0ºF to 125ºF for neoprene, -22ºF to 320ºF for silicone.
• Ensure contact surfaces are smooth and dry to avoid damage.
• Adhere to specified working diameter ranges to prevent premature damage.

Preconditioning:

• Fabric reinforced rubber bladders require preconditioning by inflating unrestricted at maximum pressure for 30 cycles to break pick cords.

Storage:

• Store in a dark, dry area at normal room temperature.

Selection Guide:

• Detailed tables provide dimensions, pressure ratings, and load capabilities for various models.
