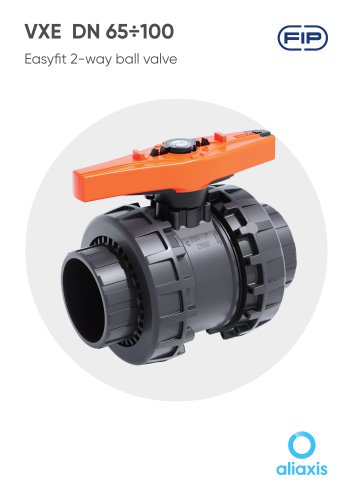

VXE DN 65÷100 Easyfit 2-way ball valve

FIP and Giugiaro Design designed and developed VXE Easyfit, the innovative True Union ball valve with union nut tightening control system that permits simple and safe installation for reliable ervice in time. This valve is also equipped with the customisable Labelling System. EASYFIT 2-WAY BALL VALVE • Patented Easyfit system: innovative mechanism based on the multifunctional handle quick release mechanism that permits union nut rotation during valve installation and ball carrier adjustment • Connection system for solvent weld and threaded joints • Valve material compatibility (PVC-U) and elastomer...

Innovative Easyfit quick release handle made up of a central hub firmly coupled with the stem valve and dual spoke grip that can be released from the hub with a simple operation and used as a ball seat adjustment tool and as a union nut tightening tool thanks to the hooked insert that, perfectly adapting to their external profile, allows the handle to transform into a wrench to control union nut rotation Customisable Labelling System: built-in LCE module in the hub made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation...

For water and harmless fluids to which the material is classified as CHEMICALLY RESISTANT. In other cases, a reduction of the nominal PN pressure is required (25 years with safety factor). TECHNICAL DATA PRESSURE VARIATION ACCORDING TO TEMPERATURE PRESSURE DROP GRAPH The K100 flow coefficient is the Q flow rate of litres per minute of water at a temperature of 20°C that will generate Ap= 1 bar pressure drop at a certain valve position. The Kv100 values shown in the table are calculated with the valve completely open.

OPERATING TORQUE AT MAXIMUM WORKING RPESSURE The information in this leaflet is provided in good faith. No liability will be accepted concerning technical data that is not directly covered by recognised international standards. FIP reserves the right to carry out any modification. Products must be installed and maintained by qualified personnel.

z_TVXEIV H_Easyfit 2-way ball valve with female ends for solvent welding, metric series

Z_TVXEAVH_Easyfit 2-way ball valve with female ends, ASTM series d VXEBEVEasyfit 2-way ball valve with PE100 SDR 11 male connectors for butt welding or electrofusion (CVDE) d

CVDE Long spigot PE100 end connectors for joints with electrofusion fittings or for butt welding LCE Transparent protection plug with tag holder

LSE Customisation and label printing set for Easyfit handle made up of precut adhesive sheets and software for guided label creation. Power Quick Easyfit The valve can be equipped with pneumatic or electric standard actuators and gearboxfor heavy-duty operations, using the PP-GR module reproducing the drilling pattern foreseen by ISO 5211.

The VXE DN 65÷100 Easyfit valve is equipped with the customisable Labelling System. This system lets you create special labels to insert in the handle. This makes it extremely easy to apply company logos, identification serial numbers or service indications such as, for example, the valve function in the system, the transported fluid, but also specific information for customer service, such as the customer name or installation date or location on the valves. The specific LCE module is a standard supply and is made up of a rigid transparent water-resistant PVC plug (A) and white tag holder (B)...

1 Hooked Easyfit multifunctional handle insert (PP-GR - 1) 2 Easyfit multifunctional handle (HIPVC - 1) 5 Ball seat (PTFE, PE1 - 2)2 8 Ball seat O-Ring (FKM, EPDM1 -2)2 9 Radial seal O-Ring (FKM, EPDM1 - 1)2 10 Socket seal O-Ring (EPDM-FKM - 2)2 11 Ball seat carrier (PVC-U - 1) 14 Transparent protection plug (PVC - 1) 14a Grey protection plug for VXE-PE version (PVC - 1) 18 Locking device plate (HIPVC - 1) 19 Self-tapping screw (STAINLESS steel - 2) For the VXE-PE version: EPDM O-ring (3, 8, 9, 10), PE ball seat (5) The component material and quantity supplied are indicated in the parentheses....

1) Isolate the valve from the line (release the pressure and empty the pipeline). 2) Extract the Easyfit multifunctional handle from the central hub pressing on the centre of the hub hinges (fig. 5) and use it as a wrench to fully unscrew the union nuts (13) from the valve body and slide the body out sideways (fig. 5). 3) Reposition the handle on the central hub. 4) Before dismounting, hold the valve in a vertical position and open it 45° to drain any liquid that might remain. 6) Remove the ball seat carrier (11) using the Easyfit quick release handle. Insert the two protrusions at the top of...

Before proceeding with installation. please follow these instructions carefully: 1) Check that the pipes to be connected to the valve are aligned in order to avoid mechanical stress on the threaded joints. 2) Unscrew the union nuts (13) from the body (7) and insert them in the pipe segments. 3) Solvent weld or screw the end connectors (12) onto the pipe segments. 4) Position the valve body between the end connectors. Warning: if a high pressure test is required, always position the body with the "REGULAR" label upstream from the fluid direction. 5) Place the union nuts on the valve body and start...
