Overview

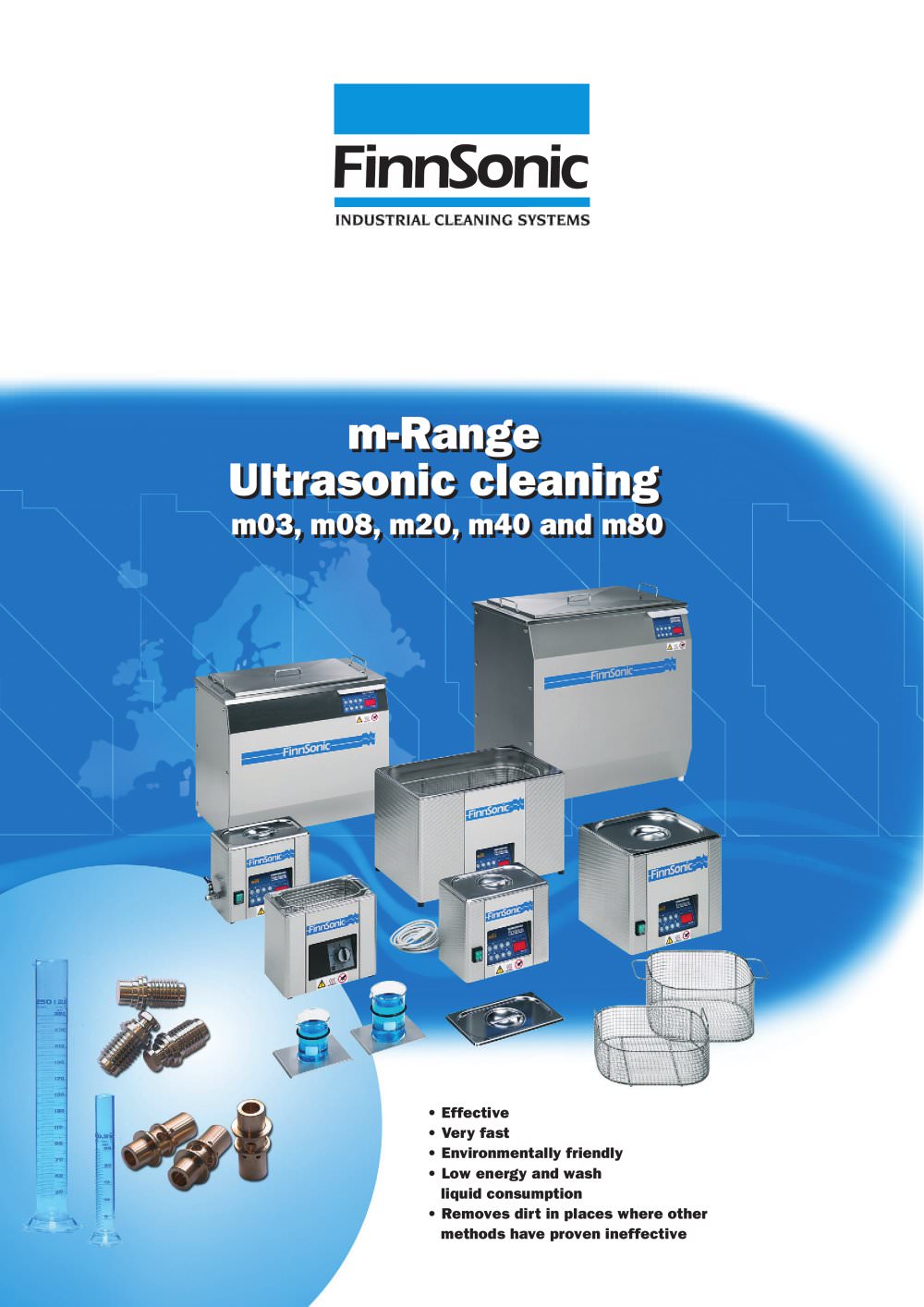

The document provides technical specifications and features of the Finnsonic m-Range ultrasonic cleaning devices, highlighting their effectiveness, speed, and environmental friendliness. These devices are designed for precision cleaning across various industries, including laboratories, optical, pharmaceutical, graphics, jewelry, precision mechanics, electronics, and food industries.

Specifications
The m-Range includes models m03, m08, m20, m40, and m80, each with varying tank volumes, dimensions, ultrasonic power, and heating power. All models operate at an ultrasonic frequency of 30 or 40 kHz and require a 230V/50Hz electric connection.

Key Features

• High-frequency sound vibrations cause cavitation, effectively removing contaminants.
• Stainless steel construction with rounded corners for easy maintenance.
• Models m40 and m80 have dry run protection, automatically switching off heating and ultrasonic functions if the liquid level is too low.
• Model m80 includes additional features like Booster and Sweep for enhanced cleaning.

Usage Recommendations

• Ensure the liquid volume in the tank is at least three times the weight of the workpieces.
• Use a small percentage of detergent to enhance cavitation and dirt removal.
• Heating the wash liquid significantly improves cleaning efficiency.
• Typical cleaning times range from 30 seconds to 5 minutes.

Additional Information
Finnsonic is recognized for its quality and reliable after-sales service, offering fast delivery times. The document notes that specifications are subject to change.
