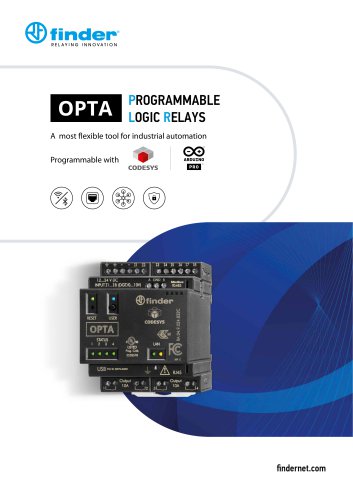

PROGRAMMABLE LOGIC RELAYS A most flexible tool for industrial automation Programmable with

ABOUT US Finder was founded in Italy in 1954. Since then it has been designing and manufacturing a wide range of electromechanical and electronic components for both the residential and industrial sectors. Today, thanks to its global vision, Finder now distributes its products around the world through a network of 29 company-owned subsidiaries and more than 80 trade partnerships. Finder is an international family made up of more than 2000 individuals, all united by the same values and passion for our products. 14,000+ different products to satisfy a myriad of applications. From products at the...

PROGRAMMABLE LOGIC RELAYS 8A Series Easily create industrial, OEM and building automation programs with OPTA PLRs using traditional IEC 61131-3 languages (LADDER, FBD, etc.) with either CODESYS or ARDUINO PLC IDE. CODESYS is the most widely used platform for hardware-independent PLC programming. A manufacturer independent language offering a versatile, robust, and powerful solution with support for IEC 61131-3 languages (such as LADDER and FDB). It benefits from the wide availability of ready-to-use software libraries and sketches from Arduino. Real-time remote monitoring through intuitive dashboards...

PROGRAMMABLE LOGIC RELAYS THE UNIQUE NEW PROGRAMMABLE LOGIC RELAY POWERFUL The powerful dual-core Cortex® M7+M4 chip allows a large number of computing operations in real time. Ideal for predictive maintenance applications and updates OTA (Over-The-Air). Thanks to the RJ45 port, the USB (type C port), RS485 and Wi-Fi/BLE integrated module. Enhanced IoT security thanks to onboard secure element chip to manage encryption and data keys in all kinds of applications. Designed to simplify the interaction between electronic devices and the physical world, empowering all your projects. Significantly...

PROGRAMMABLE LOGIC RELAYS 8A Series OPTA FEATURES RESET Supply MODBUS RS485 Input terminals terminals terminals Programmable USER button Ethernet port status LEDs Auxiliary port for connecting EXPANSION MODULES to the CPU For Type 060.48 marker tags

PROGRAMMABLE LOGIC RELAYS 8A Series Supply 12...24 V DC 8 Digital/Analog (0-10 V) inputs 4 NO relay output contacts, rated 10 A Each individual PLR can manage up to 5 expansion modules USB (type C) High Speed port for: - Power during programming RJ45 for Ethernet connections or MODBUS TCP/IP RS485 Port for MODBUS RTU connection ua!- • 4 NO relay output contacts, rated 10 A • Each individual PLR can manage up to 5 expansion modules • USB (type C) High Speed port for: - Programming - Power during programming - Data logging (via memory stick)

[] EXPANSION MODULESp The OPTA expansions are designed to add inputs / outputs to the system, with a maximum of five expansion modules per OPTA. Connection is via the OPTA AUX auxiliary port. A maximum of 80 with the digital version Up to 40 for the digital version and 30 for the analog version and 30 for the analog version Supply Output terminals terminals Supply terminals Output Programmable LEDs Auxiliary port for connecting EXPANSION MODULES to the CPU

6 analog (0…10 V, 4…20 mA, PT 100 2-3 wires) inputs programmable up to 8 2 analog (0…10 V, 4…20 mA) outputs programmable up to 8 Nominal voltage 12…24 V DC Nominal voltage 12…24 V DC Nominal voltage 12…24 V DC

PROGRAMMABLE LOGIC RELAYS 8A Series Low profile switch mode power supplies with DC output Up to 1 OPTA and 5 expansion modules Up to 2 groups of 1 OPTA and 5 expansion modules • Designed for SELV systems (EN 60950) • Thermal protection: internal, with Vout shutdown - power OFF to reset • Short circuit protection: auto-recovery • Overvoltage protection: Varistor • Low stand-by power consumption

PROGRAMMABLE LOGIC RELAYS 8A Series - CASE STUDIES The possibilities for OPTA are practically endless due to its processing power, connectivity options, programming versatility and expansion modules. PROJECTS APPLICATIONS AUTOMATION

PROGRAMMABLE LOGIC RELAYS 8A Series - CASE STUDIES ADVANCED RENEWABLE ENERGY MANAGEMENT A company specializing in energy and photovoltaic solutions has optimized the management of its plants, improving data analysis and integration with existing systems. THE NEED Analyzing and optimizing energy consumption and resources by collecting data from inverters and data loggers distributed across multiple sites and sending this data into proprietary systems for display on HMIs or monitors providing customers with a clear, real-time overview of the plant’s dynamics. THE SOLUTION The solution identified...

PROGRAMMABLE LOGIC RELAYS 8A Series - CASE STUDIES RESIDENTIAL ENERGY MANAGEMENT An innovative project has transformed the energy consumption management of 217 lock-up garages spread over four storeys in an apartment block in Milan. THE NEED Thanks to the implementation of an advanced IoT system, the administrator and apartment residents can now monitor and manage energy consumption in an efficient, personalized way. THE SOLUTION The solution involved the installation of 217 7M Series energy meters and 11 OPTA PLRs. An advanced and secure IoT system was created to collect real-time data and display...

PROGRAMMABLE LOGIC RELAYS 8A Series - CASE STUDIES RETROFITTING CNC MACHINES, AND SMART ENERGY MANAGEMENT This project involved the modernization of CNC (Computer Numerical Control) machines and the implementation of advanced IoT systems for smart energy management in a manufacturing context. THE NEED The main focus was on optimizing energy management and identifying anomalies, with the aim of integration into a Renewable Energy Community (REC). THE SOLUTION Installation of OPTA PROGRAMMABLE LOGIC RELAY, 7E Series smart energy meters and 6M Series network analyzers Creation of an advanced IoT...

PROGRAMMABLE LOGIC RELAYS 8A Series - CASE STUDIES ENERGY MONITORING IN INDUSTRY 5.0 A leading company in the field of robotics and industrial automation, it has achieved significant milestones in energy efficiency and plant sustainability. THE NEED A company specializing in the production and marketing of industrial robots – had the need to certify the energy consumption of a new robot in order to certify energy-saving compliance with the Italian Transition 5.0 plan. OPTA programmable logic relay via Modbus RTU/RS485. OPTA, with its Ethernet and WiFi connectivity capabilities, receives the data...
