aluminum frame three-phase asynchronous motor 3MA series

Product catalog summary

General Specifications:
The motors in the 3MA63-132 series are designed to comply with international standards such as IEC 34, 72, VDE 0530, DIN 42673, 42677, BS 4999, 5000, NF C 51, AS 1359, and ISO 2373. They feature IP55 protection, IC 0141 cooling, and Class F insulation with overtemperature in Class B for most sizes. The motors are balanced to Class N with a half key and constructed with aluminum frames, end shields, and terminal boxes. Bearings are double shielded and greased for life.

Technical Specifications:
The motors are totally enclosed and externally fan-cooled with a squirrel cage rotor. They are available in multiple pole configurations (2, 4, 6, 8 poles) and operate at different power outputs ranging from 0.09 kW to 11 kW. The rated speeds vary from 600 rpm to 3500 rpm depending on the model. Efficiency classes are specified for certain models, indicating compliance with the Electric Motor Efficiency project.

Dimensions and Tolerances:
Dimensions are provided for various motor types (3MA63 to 3MA132) with specific tolerances. The dimensions are not binding, allowing for some flexibility in installation. Tolerances include Dimension H = +0 -0.5mm, Dimension N = h6, and Dimension D = ≤ 28 = j6, = 38 = k6.

Commercial Information:
The document is proprietary to FIMET S.p.A., and reproduction without authorization is prohibited. FIMET reserves the right to modify the product specifications without notice. The company provides a network of agents and distributors across various regions including Europe, the Middle East, and Asia.

Catalog excerpts

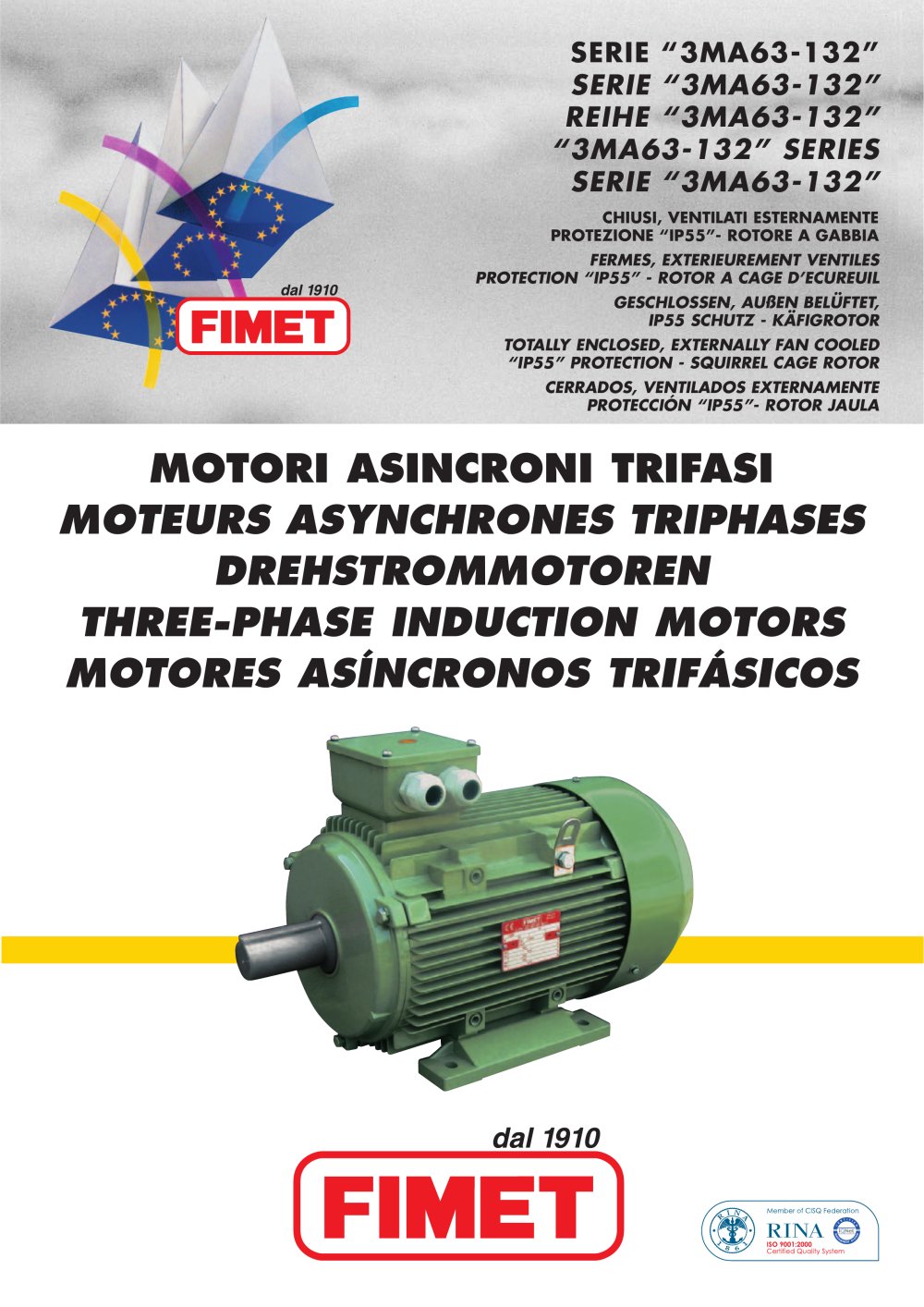

aluminum frame three-phase asynchronous motor 3MA series-1

SERIE3MA63-132Ӕ SERIE3MA63-132ӔREIHE 3MA63-132Ӕ3MA63-132Ӕ SERIESSERIE3MA63-132Ӕ CHIUSI, VENTILATI ESTERNAMENTEPROTEZIONEIP55Ӕ- ROTOREAGABBIA FERMES, EXTERIEUREMENT VENTILESPROTECTION IP55Ӕ - ROTOR ACAGEDECUREUILGESCHLOSSEN, AUҟENBELFTET,IP55 SCHUTZ - K܄FIGROTORTOTALLY ENCLOSED, EXTERNALLYFANCOOLEDIP55Ӕ PROTECTION - SQUIRRELCAGEROTORCERRADOS, VENTILADOS EXTERNAMENTEPROTECCIN ӓIP55- ROTOR JAULA MOTORI ASINCRONI TRIFASI MOTEURSASYNCHRONESTRIPHASESDREHSTROMMOTOREN THREE-PHASE INDUCTION MOTORSMOTORES ASԍNCRONOS TRIFSICOS >

Open the catalog to page 1

aluminum frame three-phase asynchronous motor 3MA series-4

I motori sono realizzati in accordo con i seguenti standard: IEC 34 e 72 Օ VDE 0530 DIN 42673, 42677Օ BS 4999,5000 NF C 51 Օ AS 1359 ISO 2373I motori di serie sono in esecuzione:Օ IP 55 IC 0141Օ Isolamento in classe F, con sovratemperatura in classe Bper la maggior parte dei motori. Equilibrati in classe N con mezza linguetta.Օ Carcassa (con piedi smontabili), scatola morsettiera, flange e scudiin alluminio. Cuscinetti stagni lubrificati a vita. Les moteurs sont rթaliss en conformit aux Norme Internationales: 驕 IEC 34, 72 VDE 0530 Օ DIN 42673, 42677 BS 4999,5000 Օ NF C 51 AS 1359 Օ ISO 2373Les...
