Type HT
6Pages

{{requestButtons}}

Catalog excerpts

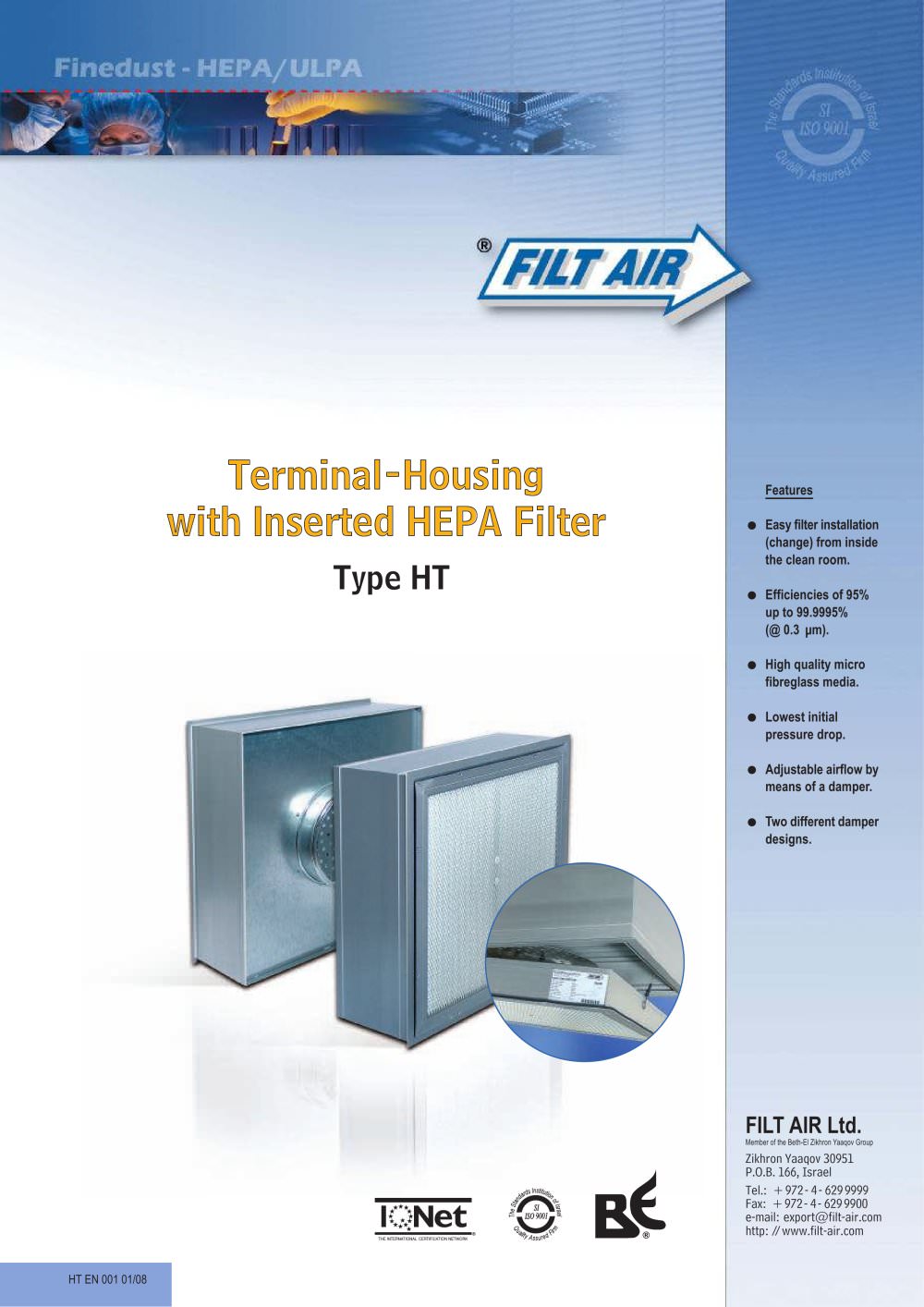

Type HT - 1

FILT AIR Ltd. Member of the Beth-El Zikhron Yaaqov Group Zikhron Yaaqov 30951 P.O.B. 166, Israel Tel.: +972- 4- 629 9999 Fax: +972- 4- 629 9900 e-mail: export@filt-air.com http: //www.filt-air.com HT EN 001 01/08 Features Easy filter installation (change) from inside the clean room. Efficiencies of 95% up to 99.9995% (@ 0.3 m). High quality micro fibreglass media. Lowest initial pressure drop. Adjustable airflow by means of a damper. Two different damper designs. Terminal-Housing with Inserted HEPA Filter Type HT

Open the catalog to page 1
Type HT - 2

Overview The HT terminal high efficiency filter is designed and tested to extract the smallest particles out of the air. Each HT housing filter contains a .Minipleat-Filter. available in different heights with a new application technology of the .Hot Melt Spacers. to achieve lowest pressure drop results. The changing of the filter is done from the inside of the room. An option that makes the maintenance faster, easier and therefore cost efficient. Features Anodized rigid aluminum frame. High quality standard due to Quality Assurance System. Tested by laser particle counting system. High...

Open the catalog to page 2
Type HT - 4

Technical Data Housing Sizes Dampers The version A of our damper system is a combination of inroom adjustable damper with an aerosol inlet for efficiency checking on the installed filter. This gives the opportunity to change the airflow (filter velocity) very easily during checking with a velocity meter from the clean room side. Furthermore, for DOP efficiency testing (of installed filters) there is an aerosol entry provided to easily bring the test aerosol to the upstream side of the filter media. Both are covered with a sealed screw to prevent any leaks. The version B of our damper system...

Open the catalog to page 4
Type HT - 5

XY-Scanning Probes Control Unit PSL-Generator HT EN 001 01/08 Applicable Standards: EN 1822-5 IEST-RP-CC001.3 EN 779 ASHRAE 52.1 ISO 9001:2000 Testing Each filter is tested and packed in accordance with American Standard IEST-RP-CC001.3 (HEPA and ULPA Filters) or in accordance with the European standard EN 1822-1, 4&5 (Testing filter elements HEPA and ULPA efficiency and scan method) or customer requested testings. XY - Scan Testing Device Filt Air XY-scan testing device is able to perform automated filter leak testing of high efficiency air filters using automatic particle counters and a...

Open the catalog to page 5
Type HT - 6

Dimensional Drawing Order no. HT - - Example HT - - Media Pack A Filter Efficiency B Housing Size Code C Damper in filter insert D Collar Size & Damper E Screen Material F Seal G 47 mm 4 H10 10 610 x 610 mm 66 Without Damper 0 8" without damper A Exp. Steel / No Seal 0 56 mm 5 H13 13 1220 x 610 mm 06 8" Damper Version A 1 10" without damper B Powder Coated 1x Downstream D 70 mm 7 H14 14 600 x 600 mm AD 10"Damper Version A 2 12" without damper C Exp. Stainless 1210 x 600 mm AE 12"Damper Version A 3 8" with damper Ver.B N Steel 10" with damper Ver.B P 12" with damper Ver.B Q Specifications...

Open the catalog to page 6
