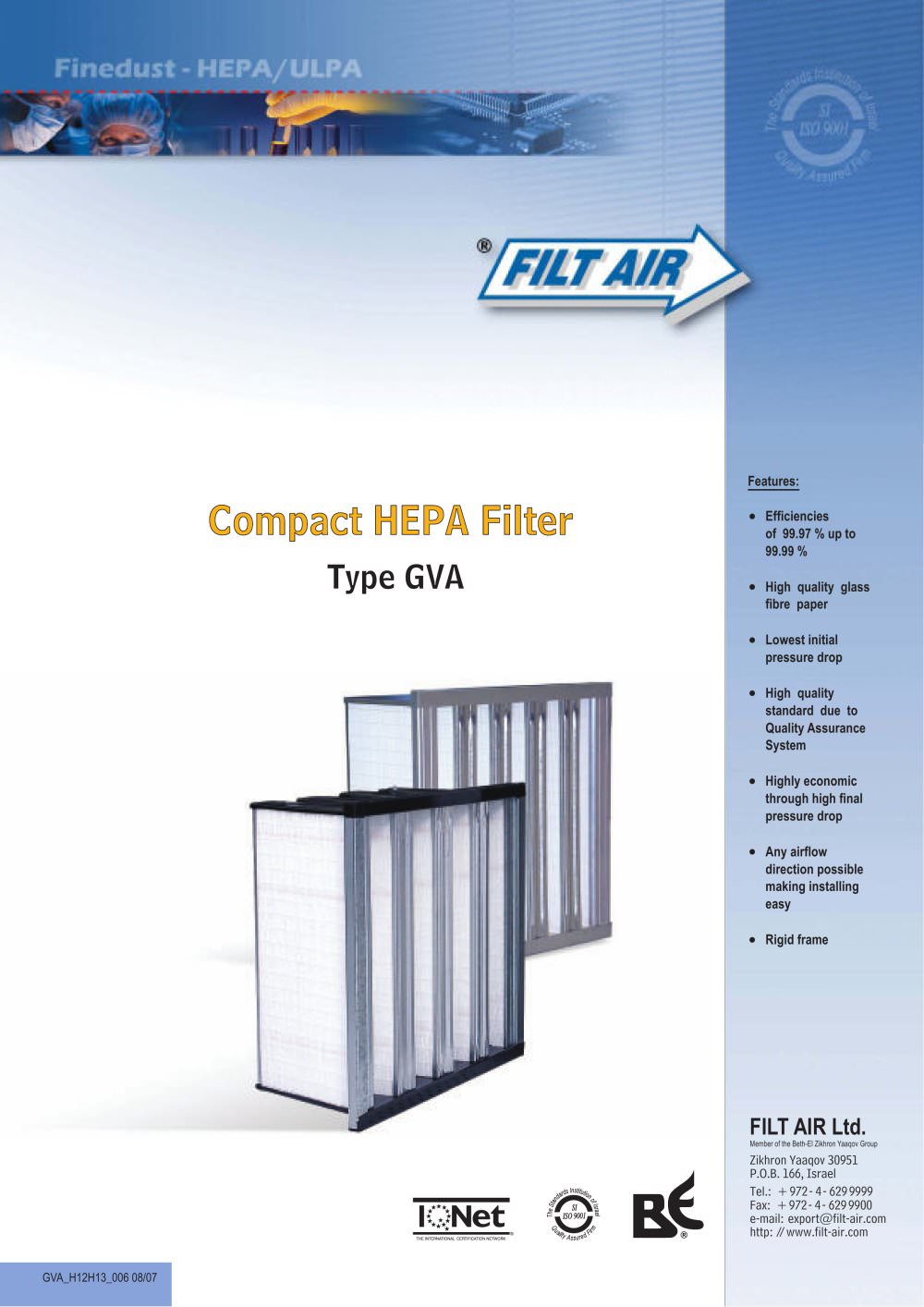

Compact HEPA Filter Type GVA GVA_H12H13_006 08/07 FILT AIR Ltd. Member of the Beth-El Zikhron Yaaqov Group Zikhron Yaaqov 30951 P.O.B. 166, Israel Tel.: +972- 4- 629 9999 Fax: +972- 4- 629 9900 e-mail: export@filt-air.com http: //www.filt-air.com Features: Efficiencies of 99.97 % up to 99.99 % High quality glass fibre paper Lowest initial pressure drop High quality standard due to Quality Assurance System Highly economic through high final pressure drop Any airflow direction possible making installing easy Rigid frame

Open the catalog to page 1

Applicable Standards: EN 1822 ISO 9001:2000 Overview The Compact HEPA-Filter GVA is designed and tested to extract smallest particles out of the air. Each GVA Compact HEPA-Filter contains ten (10) "Minipleat-Papercakes" pleated in one piece and assembled in V-shape technology to achieve lowest pressure drop results. High quality glass fibre paper Lowest initial pressure drop Rigid frame Zinc coated profiles Filter height only 292mm High quality standard due to Quality Assurance System High burst pressure ( > 2000 Pa ) Highly economical through high final pressure drop Useable in two flow...

Open the catalog to page 2

GVA_H12H13_006 08/07 Technical Data Initial Pressure Drop FILT AIR Ltd. Member of the Beth-El Zikhron Yaaqov Group Zikhron Yaaqov 30951 P.O.B. 166, Israel Tel.: +972- 4- 629 9999 Fax: +972- 4- 629 9900 e-mail: export@filt-air.com http: //www.filt-air.com Filter type GVA-12 GVA-13 Filter class according EN 1822 H12 H13 Min. initial efficiency @ Rated Airflow with MPPS-DEHS test % >99.93 >99.95 Min.initial efficiency @ rated airflow with particle size Ø 0.3ìm % >99.97 >99.99 Recommended final pressure drop Pa 600 600 Bursting pressure Pa > 2000 > 2000 Max. continous temparature °C 80 80 Max....

Open the catalog to page 3

Dimensional Drawing Order Numbers Specifications are subject to change without prior notice all dimensions are in mm Height Length Width !" # # # $ % % "&! ! '( ) *& * +$ ! ,! "&!! -' - ./ '( ) 0$%$ ! .! 0$0$
