Type GV8 full Plastic ( F6 - F9)
4Pages

{{requestButtons}}

Catalog excerpts

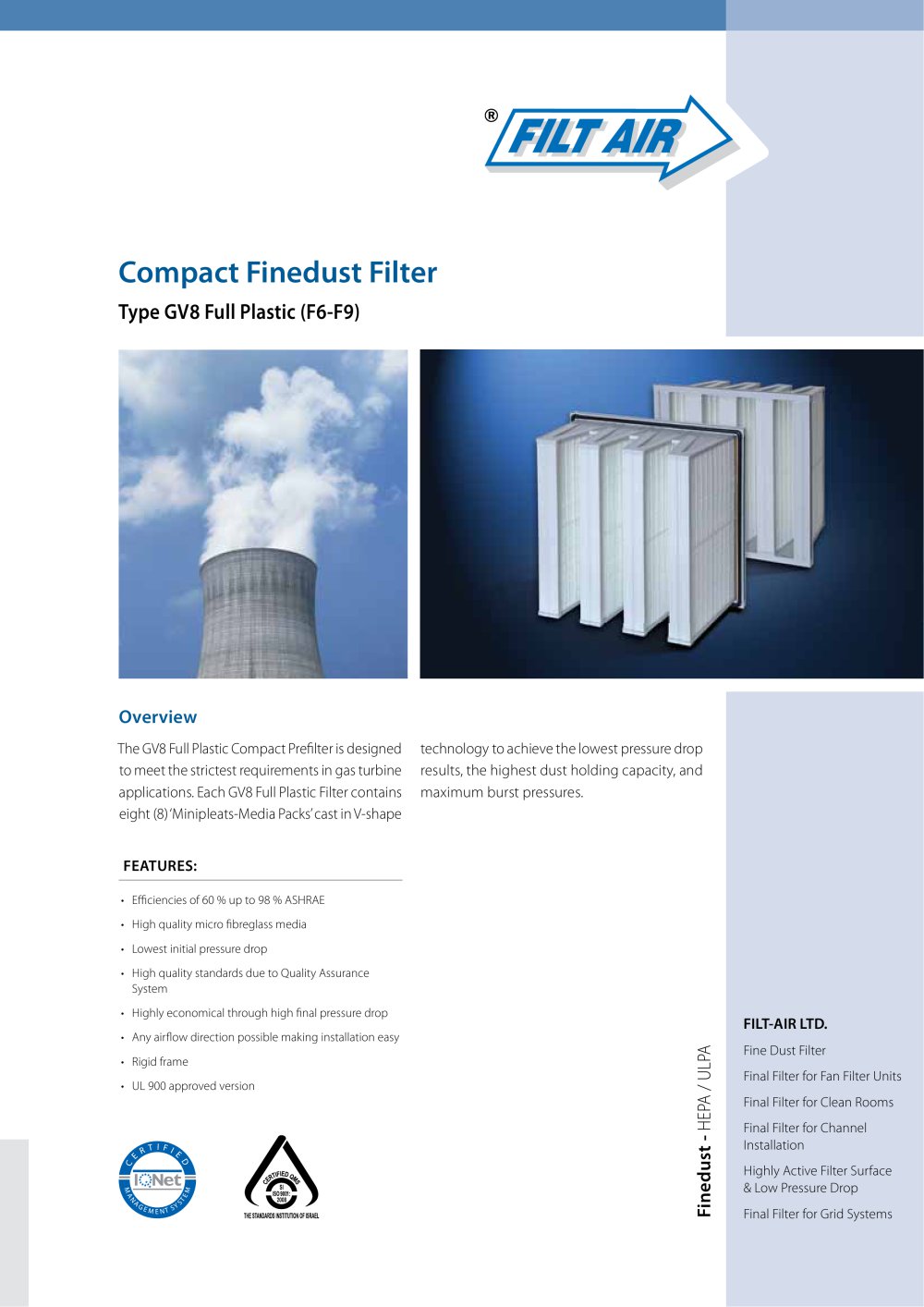

Type GV8 full Plastic ( F6 - F9) - 1

Compact Finedust Filter Type GV8 Full Plastic (F6-F9) Overview The GV8 Full Plastic Compact Prefilter is designed to meet the strictest requirements in gas turbine applications. Each GV8 Full Plastic Filter contains eight (8) ‘Minipleats-Media Packs’ cast in V-shape technology to achieve the lowest pressure drop results, the highest dust holding capacity, and maximum burst pressures. FEATURES: • Efficiencies of 60 % up to 98 % ASHRAE • High quality micro fibreglass media • Lowest initial pressure drop • High quality standards due to Quality Assurance System • Highly economical through high final pressure drop • Rigid frame • UL 900 approved version Finedust - HEPA / ULPA • Any airflow direction possible making installation easy Fine Dust Filter Final Filter for Fan Filter Units Final Filter for Clean Rooms Final Filter for Channel Installation Highly Active Filter Surface & Low Pressure Drop Final Filter for Grid Systems

Open the catalog to page 1
Type GV8 full Plastic ( F6 - F9) - 2

AVAILABLE STANDARDS: The side covers of the filter are made from rigid plastic with integrated water outlet slopes on both the up and down stream sides. Connection slots for the insertion of the prefilter frame HFA-# are also included. These features, in combination with the reinforced profiles, ensure maximum space for the filter media pack and provide a high mechanical strength. The fibreglass media pleated in “mini-pleat shape” can be reinforced with an additional plastic rib¹ that is cast with polyurethane sealant in V-shape technology directly into the side cover. This design provides...

Open the catalog to page 2
Type GV8 full Plastic ( F6 - F9) - 3

Technical Data Size Code Rated airflow Active filter surface Initial pressure drop @ rated airflow Active filter surface Initial pressure drop @ rated airflow Active filter surface Initial pressure drop @ rated airflow Active filter surface Initial pressure drop @ rated airflow Initial Pressure Drop p [Pa] 250 200 Finedust - HEPA / ULPA

Open the catalog to page 3
Type GV8 full Plastic ( F6 - F9) - 4

Order Numbers Order no. Full Plastic Reinforced Frame for High Burst Pressure Full Plastic Fire Retardant UL 900 Screen Material Specification are subject to change without prior notice HEPA & ULPA Filters for Industrial Clean Rooms FILT AIR Ltd. specializes in the use of advanced technologies to implement a purified air supply for high-tech industry clean rooms, the microelectronics business sectors, and pharmaceutical industries. FILT AIR Ltd. has a broad range of client groups, such as hospitals, industrial plants, commercial buildings, and companies requiring clean air inside gas...

Open the catalog to page 4
