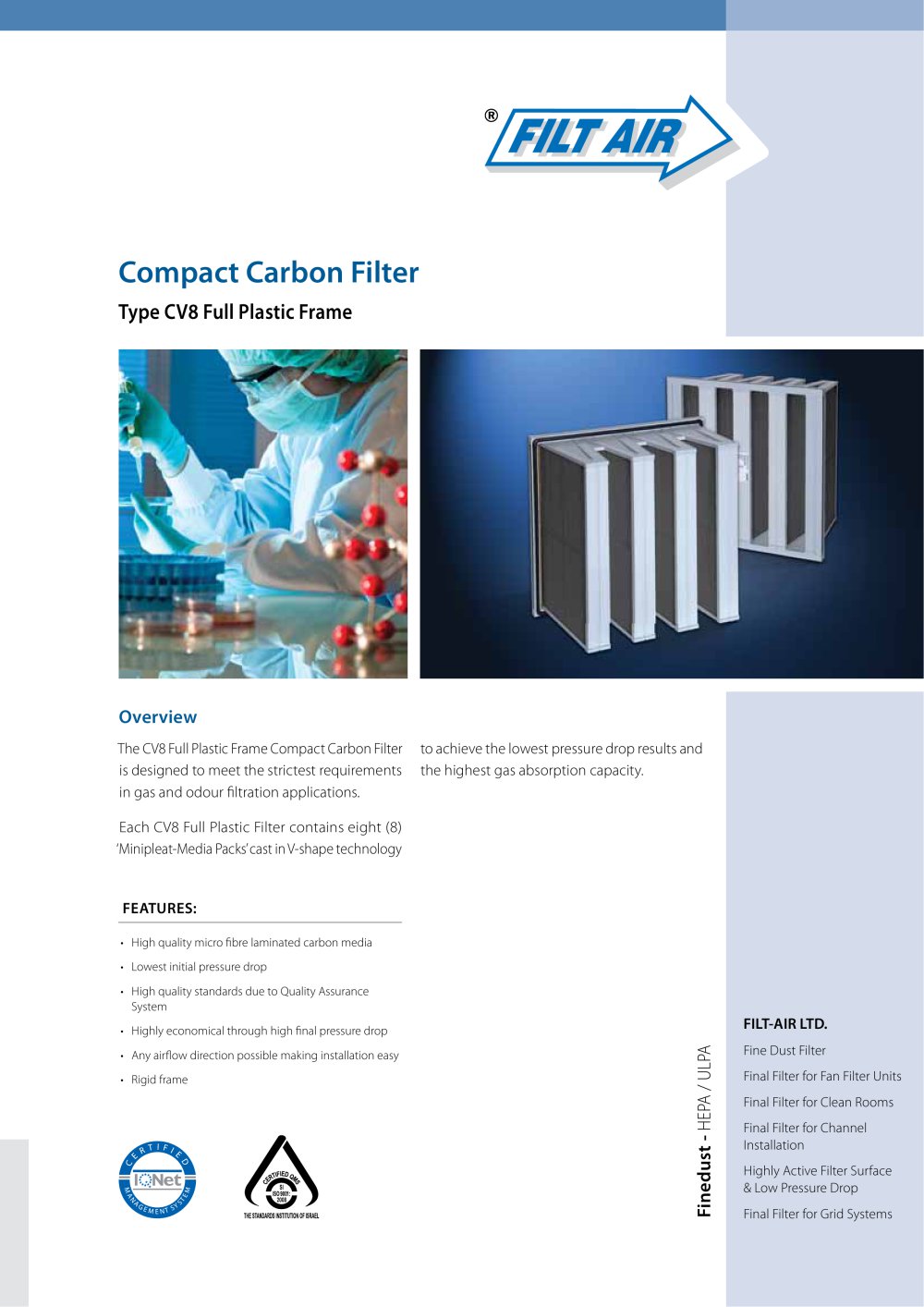

Compact Carbon Filter Type CV8 Full Plastic Frame Overview The CV8 Full Plastic Frame Compact Carbon Filter is designed to meet the strictest requirements in gas and odour filtration applications. to achieve the lowest pressure drop results and the highest gas absorption capacity. Each CV8 Full Plastic Filter contains eight (8) ‘Minipleat-Media Packs’ cast in V-shape technology FEATURES: • High quality micro fibre laminated carbon media • Lowest initial pressure drop • High quality standards due to Quality Assurance System • Any airflow direction possible making installation easy Fine Dust Filter • Rigid frame Finedust - HEPA / ULPA • Highly economical through high final pressure drop Final Filter for Fan Filter Units Final Filter for Clean Rooms Final Filter for Channel Installation Highly Active Filter Surface & Low Pressure Drop Final Filter for Grid Systems
Open the catalog to page 1
Design The side covers of the filter are made from rigid plastic with integrated water outlet slopes on both the up and down stream sides. Connection slots for the insertion of the prefilter frame HFA-# are also included. These features, in combination with the reinforced profiles, provide maximum space for the filter media pack and ensure a high mechanical strength. The filters are supplied with a flat flange and endless gasket 1 creating a secure seal between the filter and each standard prefilter holding frame. ¹ High quality micro-fibre laminated carbon media Lowest initial pressure...
Open the catalog to page 2
Technical Data
Open the catalog to page 3
Order Numbers Order no. Carbon Type Full Plastic Frame Screen Material Specifications are subject to change without prior notice HEPA & ULPA Filters for Industrial Clean Rooms FILT AIR Ltd. specializes in the use of advanced technologies to implement a purified air supply for high-tech industry clean rooms, the microelectronics business sectors, and pharmaceutical industries. FILT AIR Ltd. has a broad range of client groups, such as hospitals, industrial plants, commercial buildings, and companies requiring clean air inside gas turbines. FILT AIR’s range of products is designed and produced...
