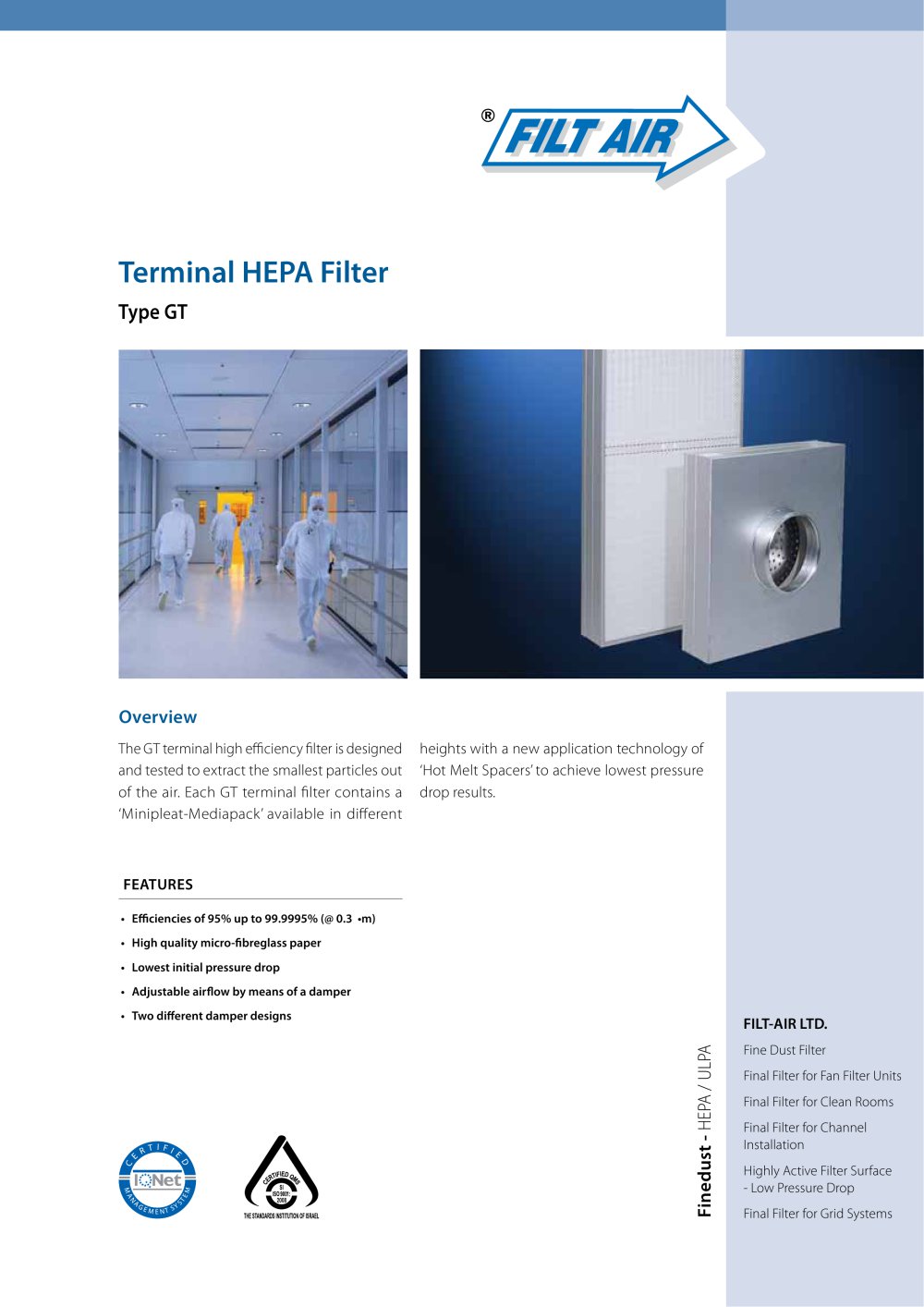

Terminal HEPA Filter Type GT Overview The GT terminal high efficiency filter is designed and tested to extract the smallest particles out of the air. Each GT terminal filter contains a ‘Minipleat-Mediapack’ available in different heights with a new application technology of ‘Hot Melt Spacers’ to achieve lowest pressure drop results. FEATURES • Efficiencies of 95% up to 99.9995% (@ 0.3 •m) • High quality micro-fibreglass paper • Lowest initial pressure drop • Adjustable airflow by means of a damper • Two different damper designs Finedust - HEPA / ULPA FILT-AIR LTD. Fine Dust Filter Final Filter for Fan Filter Units Final Filter for Clean Rooms Final Filter for Channel Installation Highly Active Filter Surface - Low Pressure Drop Final Filter for Grid Systems

FEATURES: • Anodized rigid aluminium frame • High quality standards due to Quality Assurance System • Tested by laser particle counting system • High economic through high final pressure drop • For use in clean rooms up to class 1 Design The filter frame is made from an anodized extruded aluminium profile with two angled corners, producing a rigid, straight filter. The zinc-coated hood with attached collar is tie-glued onto the top of the filter. At damper version A, the aerosol / pressure drop checking inlet is placed in a special middle bridge and is adjustable from downstream. The...

APPLICABLE STANDARDS: Testing Each filter is tested and packed in accordance with American Standard IEST-RP-CC001.3 (HEPA and ULPA Filters), in accordance with the European standard EN 1822-1 4&5 (testing filter elements HEPA and ULPA efficiency and scan method), or customer requested testing. XY - Scan Testing Device Filt Air’s XY-scan testing device is able to perform automated filter leak testing of high efficiency air filters using automatic particle counters and a motorized scan table. While the particle counter probe passes over the filter face, the computer compares the counted...

Version A of the damper system is a combination of an in-room adjustable damper with an aerosol inlet for efficient checking of the installed filter. This feature allows for easy adjustment of the airflow (filter velocity) during checking with a velocity meter from the clean room side. In addition, for DOP efficiency testing (of installed filters), an aerosol entry is provided to allow for easy channelling of the test aerosol to the upstream side of the filter media. Both are covered with a sealed screw to prevent any leaks. Version B of the damper system offers a functional possibility for...

Dimensional Drawing 65 Height Length Finedust - HEPA / ULPA

Technical Data Filter Data Rated face velocity Media pack Initial pressure drop @ rated airflow Filter class as per EN 1822 Initial efficiency @ rated airflow Test with MPPS (integral) Test with aerosol Ø 0.3 μm Filter class as per DIN 24184 Recommended final pressure drop Flammability classification to DIN 53438 Max. relative humidity Filter Sizes Filter Size Rated Airflow

Initial Pressure Drop for ‘Minipleat-Media Pack’ in 47 mm Height p [Pa] 225 Initial Pressure Drop for ‘Minipleat-Media Pack’ in 56 mm Height Media Pack 56 mm Initial Pressure Drop for ‘Minipleat-Media Pack’ in 70 mm Height p [Pa] 225 200 H14 Finedust - HEPA / ULPA

Order Numbers Order no. Damper & Collar 8” without Damper Media Pack Exp. Steel / Powder Coated Other dimensions available upon request Specifications are subject to change without prior notice HEPA & ULPA Filters for Industrial Clean Rooms FILT AIR Ltd. specializes in the use of advanced technologies to implement a purified air supply for high-tech industry clean rooms, the microelectronics business sectors, and pharmaceutical industries. FILT AIR Ltd. has a broad range of client groups, such as hospitals, industrial plants, commercial buildings, and companies requiring clean air inside...
