FUME EXTRACTION Mobile units
FUME EXTRACTION Mobile units
- Intended for light welding applications with a 1.5 HP motor.
- Includes a sequence of 4 mechanical filters for fume filtration and deodorization.
- Features a 3-meter self-supporting articulated arm.
- Maximum capacity of 1,400 m³/h.
- Variants: ECOMINOR, ECOMINOR-D, ECOMINOR-MONO, and ECOMINOR-CARB, each tailored for different electrical setups and carbon filter capacities.
- Enhanced version with a capacity of 1,600 m³/h.
- Equipped with high-efficiency cartridge filters.
- Models include ECOMINOR-C, ECOMINOR-CD, and ECOMINOR-CM.
- For intensive applications with options for 150 mm, 200 mm, or dual 150 mm articulated arms.
- Includes a mechanical filter battery for fume filtration and deodorization.
- Models: MASTER-1BR, MASTER-2BR, and MASTER-200, with capacities from 1,500 to 2,500 m³/h.
- Targets welding fumes and metallic dust from grinding.
- Features a spark-suppressor chamber and high-efficiency filter cartridge.
- Equipped with a 3-meter TECHNO arm and semi-automatic compressed air cleaning.
- Maximum capacity of 1,400 m³/h.
- Similar to MINIJET but with different arm configurations.
- Includes an integrated semi-automatic filter cleaning system.
- Models: MASTERJET-1BR and MASTERJET-2BR, with capacities up to 2,500 m³/h.
- MINOR-E and MASTER-E models use electrostatic filtration for welding fumes, including oily fumes.
- MINOR-E features a 0.75 HP fan and a 3-meter articulated arm with a capacity of 1,400 m³/h.
- MASTER-E models offer higher capacities with options for single or dual articulated arms and active carbon filters.
- All units are mobile and designed for ease of use in industrial settings.
- Various models accommodate different power supply configurations and filtration needs.
- Focus on high-efficiency filtration and deodorization to maintain air quality.
- MASTER-E-1BR: 2 HP fan, single 3-meter articulated arm (150 mm diameter), airflow capacity of 1,500 m³/h.
- MASTER-E-2BR: 3 HP fan, two 3-meter articulated arms (150 mm diameter each), maximum airflow capacity of 2,300 m³/h.
- Both units include a 6 kg activated carbon filter at the outlet for enhanced filtration efficiency.
Catalog excerpts

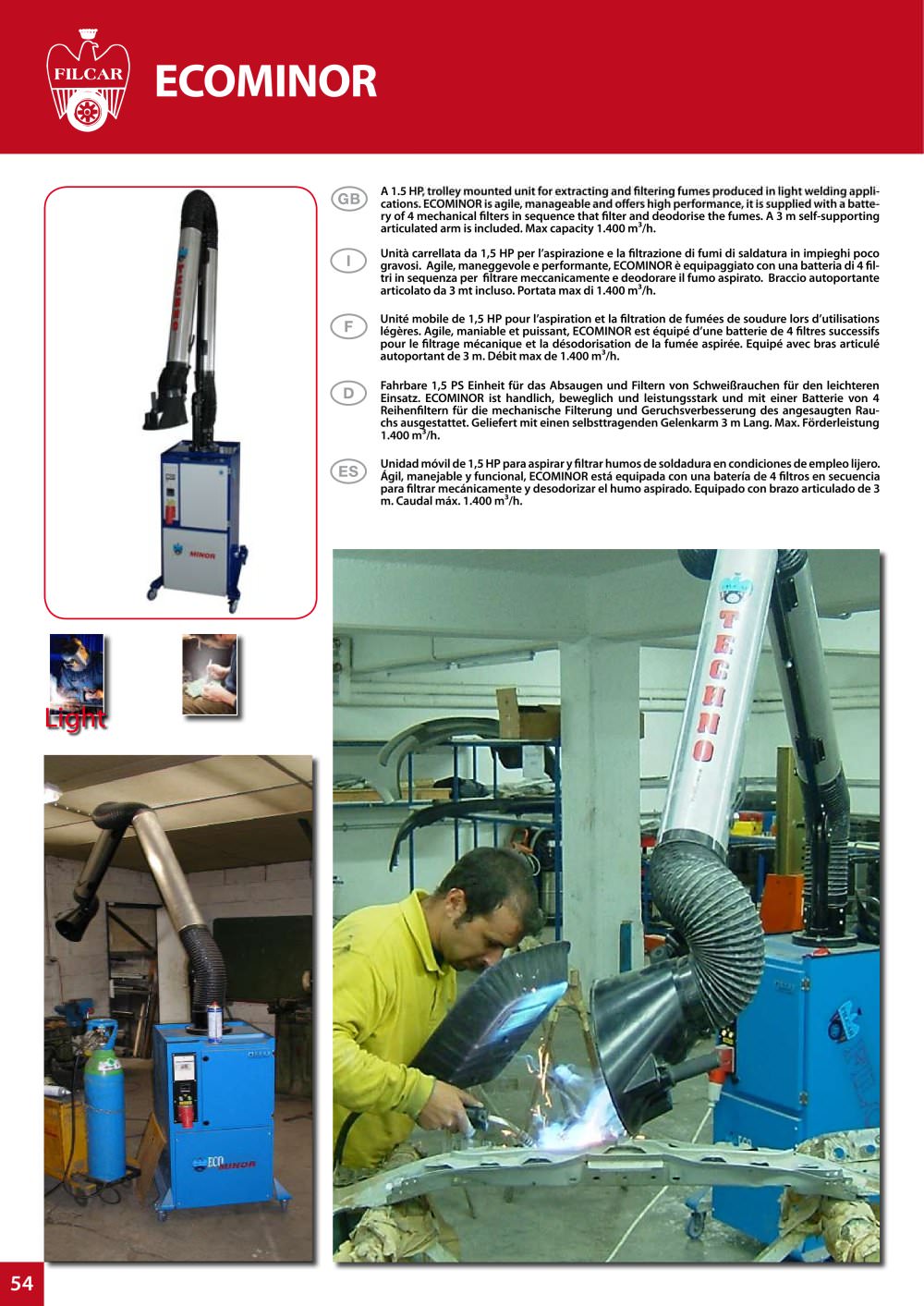

54 Unità carrellata da 1,5 HP per l’aspirazione e la filtrazione di fumi di saldatura in impieghi poco gravosi. Agile, maneggevole e performante, ECOMINOR è equipaggiato con una batteria di 4 filtri in sequenza per filtrare meccanicamente e deodorare il fumo aspirato. Braccio autoportante articolato da 3 mt incluso. Portata max di 1.400 m³/h. Light A 1.5 HP, trolley mounted unit for extracting and filtering fumes produced in light welding applications. ECOMINOR is agile, manageable and offers high performance, it is supplied with a battery of 4 mechanical filters in sequence that filter and deodorise the fumes. A 3 m self-supporting articulated arm is included. Max capacity 1.400 m³/h. Unité mobile de 1,5 HP pour l’aspiration et la filtration de fumées de soudure lors d’utilisations légères. Agile, maniable et puissant, ECOMINOR est équipé d’une batterie de 4 filtres successifs pour le filtrage mécanique et la désodorisation de la fumée aspirée. Equipé avec bras articulé autoportant de 3 m. Débit max de 1.400 m³/h. Fahrbare 1,5 PS Einheit für das Absaugen und Filtern von Schweißrauchen für den leichteren Einsatz. ECOMINOR ist handlich, beweglich und leistungsstark und mit einer Batterie von 4 Reihenfiltern für die mechanische Filterung und Geruchsverbesserung des angesaugten Rauchs ausgestattet. Geliefert mit einen selbsttragenden Gelenkarm 3 m Lang. Max. Förderleistung 1.400 m³/h. Unidad móvil de 1,5 HP para aspirar y filtrar humos de soldadura en condiciones de empleo lijero. Ágil, manejable y funcional, ECOMINOR está equipada con una batería de 4 filtros en secuencia para filtrar mecánicamente y desodorizar el humo aspirado. Equipado con brazo articulado de 3 m. Caudal máx. 1.400 m³/h. ECOMINOR
Open the catalog to page 1
56 Light Unità carrellata da 1,5 HP per l’aspirazione e la filtrazione di fumi di saldatura e polveri in sospensione. La macchina è completa di un set di 2 filtri a cartuccia ad alta efficienza e braccio articolato autoportante da 3 mt. Portata max 1.600 m³/h. Unité mobile de 1,5 HP pour l’aspiration et la filtration de fumées de soudure et poussières en suspension. La machine est fournie avec un jeu de 2 filtres à cartouche à haute capacité et bras articulé autoportant de 3 m. Débit max 1.600 m³/h. A 1.5 HP, trolley mounted unit for extracting and filtering welding fumes and suspended dust....
Open the catalog to page 3
57 Model m³/h c.f.m. % m² Kg. Lbs. h h V phases Hz cert HP Kw ECOMINOR-C 1600 941 99,9 5,5 60 132 200 800 400 3P + T 50 CE 1,5 1,1 ECOMINOR-CD 1600 941 99,9 5,5 60 132 200 800 400 3P+N+T 50 CE 1,5 1,1 ECOMINOR-CM 1600 941 99,9 5,5 60 132 200 800 230 1P+N+T 50 CE 1,5 1,1 11 2 ECOMINOR/RIPM ECOMINOR/CART (2 PCS) o p t i o n a l s Spare parts - Ricambi - Pièces de rechange - Ersatzteile - Recambios TECHNO-330/C ECOMINOR/CART S p a r e p a r t s Cleaning Change ECOMINOR-C Dettagli tecnici - Technical details - Données techniques - Technishe Daten - Datos Técnicos TECHNO-RETE Sparkproof protection...
Open the catalog to page 4
58 Unità carrellata per l’aspirazione e la filtrazione di fumi di saldatura. Dotata di braccio articolato da 3 mt e di una batteria di filtri ad azione meccanica per filtrare e deodorare i fumi aspirati prima della reimmissione in ambiente. Disponibile nella versione con un braccio da 150 mm, 200 mm o due bracci da 150 mm. A trolley mounted unit for extracting and filtering welding fumes. Equipped with a 3 m articulated arm and a battery of mechanical filters that filter and deodorise the fumes before they are recycled into the environment. Available with a 150 mm and a 200 mm arm, or 2 x 150...
Open the catalog to page 5
60 Unità carrellata per l’aspirazione e la filtrazione di fumi di saldatura e polveri metalliche di smerigliatura. Il passaggio dei fumi attraversa una cartuccia filtrante ad alta efficienza dopo un passaggio in una precamera spegniscintilla depositando il materiale più grossolano in un casetto di raccolta. Dotato di braccio TECHNO da 3 mt. e pulizia semi-automatica ad aria compressa, MINIJET sviluppa una portata max di 1.400 m³/h. A trolley mounted unit for extracting and filtering welding fumes and metallic dust produced by grinding. The fumes are passed through a spark-suppressor chamber,...
Open the catalog to page 7
61 Model m³/h c.f.m. % m² Kg. Lbs. V phases Hz cert HP Kw MINIJET-2 1400 823 99,9 5,5 130 287 400 3P + T 50 CE 2 1,5 MINIJET-2/380V60HZ 1400 823 99,9 5,5 130 287 400 3P + T 60 CE 2 1,5 A Serbatoio aria compressa / Compressed air tank / Réservoir d’air comprimé / Drucklufbehälter / Tanque de aire comprimido. B Valvola a comando manuale / Valve Ventil / Soupape manuelle / Válvula de arranque manual. C Tubo di distribuzione / Distribution pipe / Tuyau de distribution / Verteilrohore / Tubo de distribución. D Getto / Jet / jet d’air / Düse / Chorro. E Ugelli Venturi / Venturi nozzles / buses Venturi...
Open the catalog to page 8
62 Macchina carrellata per l’aspirazione e la filtrazione di fumi di saldatura e polveri metalliche di smerigliatura. Il passaggio dei fumi attraversa una cartuccia filtrante ad alta efficienza dopo un passaggio in una precamera spegniscintilla depositando il materiale più grossolano in un casetto di raccolta. Dotato di braccio articolato da 150 mm, 200 mm o due bracci da 150 mm, MASTERJET mantiene le sue prestazioni nel tempo grazie ad un sistema integrato di pulizia semiautomatica del filtro. HD MASTERJET-200 MASTERJET-2BR HD HD HD HD Unité mobile pour l’aspiration et la filtration de fumées...
Open the catalog to page 9
63 A Serbatoio aria compressa / Compressed air tank / Réservoir d’air comprimé / Drucklufbehälter / Tanque de aire comprimido. B Valvola a comando manuale / Valve Ventil / Soupape manuelle / Válvula de arranque manual. C Tubo di distribuzione / Distribution pipe / Tuyau de distribution / Verteilrohore / Tubo de distribución. D Getto / Jet / jet d’air / Düse / Chorro. E Ugelli Venturi / Venturi nozzles / buses Venturi / Venturirohre / Boquillas Venturi. F Cartuccia / Cartridge / Cartouche / Patronenfilter / Cartu cho. semi-auto cleaning filtration process Model m³/h c.f.m. % m² Kg. Lbs. V phases...
