FUME EXTRACTION Aluminium tracks

FUME EXTRACTION Aluminium tracks
4Pages

Catalog excerpts

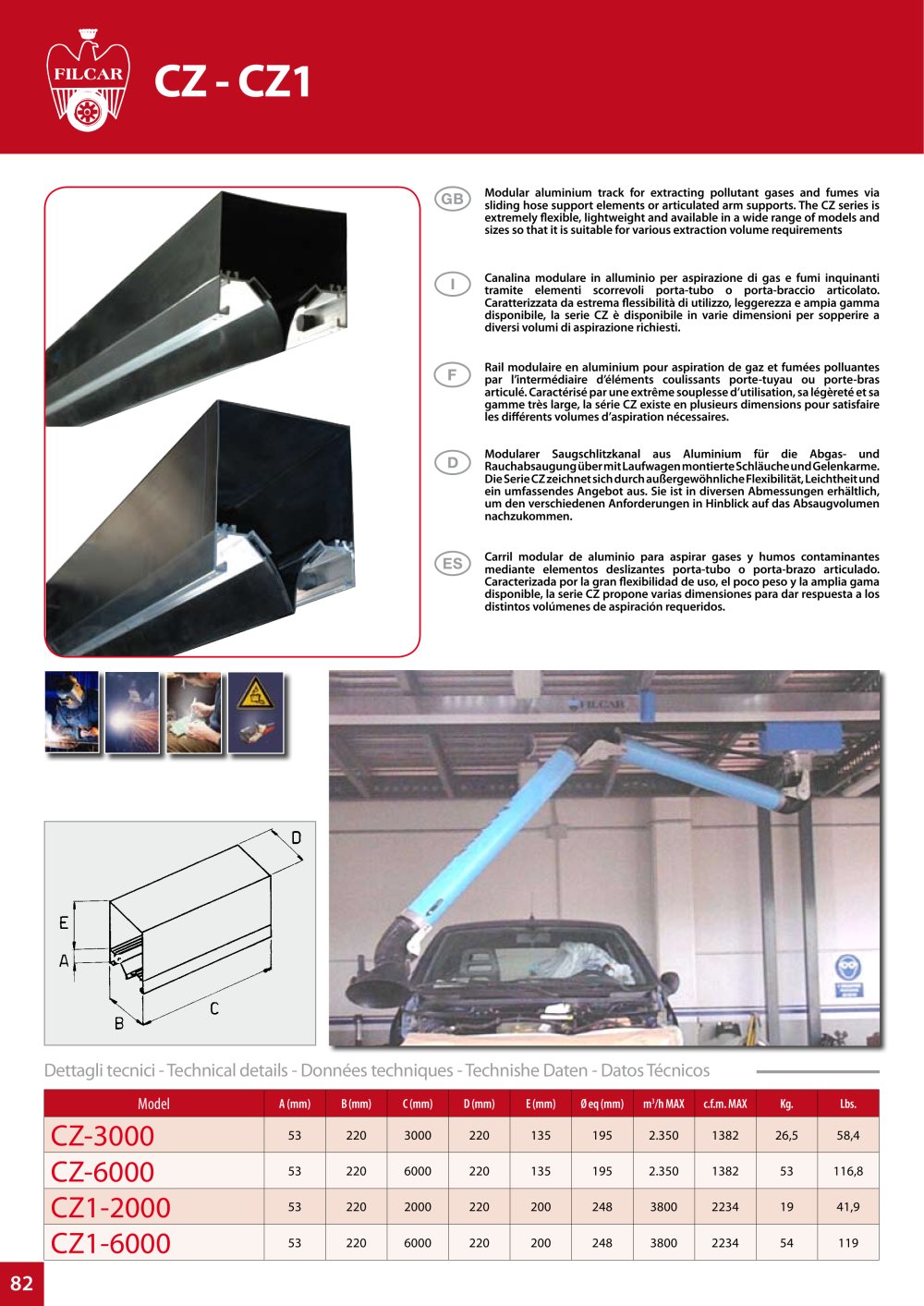

82 Model A (mm) B (mm) C (mm) D (mm) E (mm) Ø eq (mm) m3/h MAX c.f.m. MAX Kg. Lbs. CZ-3000 53 220 3000 220 135 195 2.350 1382 26,5 58,4 CZ-6000 53 220 6000 220 135 195 2.350 1382 53 116,8 CZ1-2000 53 220 2000 220 200 248 3800 2234 19 41,9 CZ1-6000 53 220 6000 220 200 248 3800 2234 54 119 Modular aluminium track for extracting pollutant gases and fumes via sliding hose support elements or articulated arm supports. The CZ series is extremely flexible, lightweight and available in a wide range of models and sizes so that it is suitable for various extraction volume requirements Canalina modulare in alluminio per aspirazione di gas e fumi inquinanti tramite elementi scorrevoli porta-tubo o porta-braccio articolato. Caratterizzata da estrema flessibilità di utilizzo, leggerezza e ampia gamma disponibile, la serie CZ è disponibile in varie dimensioni per sopperire a diversi volumi di aspirazione richiesti. Rail modulaire en aluminium pour aspiration de gaz et fumées polluantes par l’intermédiaire d’éléments coulissants porte-tuyau ou porte-bras articulé. Caractérisé par une extrême souplesse d’utilisation, sa légèreté et sa gamme très large, la série CZ existe en plusieurs dimensions pour satisfaire les différents volumes d’aspiration nécessaires. Modularer Saugschlitzkanal aus Aluminium für die Abgas- und Rauchabsaugung über mit Laufwagen montierte Schläuche und Gelenkarme. Die Serie CZ zeichnet sich durch außergewöhnliche Flexibilität, Leichtheit und ein umfassendes Angebot aus. Sie ist in diversen Abmessungen erhältlich, um den verschiedenen Anforderungen in Hinblick auf das Absaugvolumen nachzukommen. Carril modular de aluminio para aspirar gases y humos contaminantes mediante elementos deslizantes porta-tubo o porta-brazo articulado. Caracterizada por la gran flexibilidad de uso, el poco peso y la amplia gama disponible, la serie CZ propone varias dimensiones para dar respuesta a los distintos volúmenes de aspiración requeridos. CZ - CZ1 Dettagli tecnici - Technical details - Données techniques - Technishe Daten - Datos Técnicos

Open the catalog to page 1

83 Model A (mm) B (mm) C (mm) D (mm) E (mm) Ø eq (mm) m3/h MAX c.f.m. MAX Kg. Lbs. CZ2-2000 53 220 2000 220 400 334 6.900 4057 20 44 CZ2-6000 53 220 6000 220 400 334 6.900 4057 58 128 CZ3-2000 53 220 2000 350 500 472 13.850 8144 24 53 CZ3-6000 53 220 6000 350 500 472 13.850 8144 84 185 Modular aluminium track for extracting pollutant gases and fumes via sliding hose support elements or articulated arm supports. The CZ series is extremely flexible, lightweight and available in a wide range of models and sizes so that it is suitable for various extraction volume requirements Canalina modulare...

Open the catalog to page 2

84 Modular conduit in extruded aluminium for extracting pollutant gases and fumes via sliding hose support elements or articulated arm supports. Thanks to its rigid structure, sliding mounting elements and simple design, the XTK series represents a high technology, high performance product in the sliding extraction systems sector. Canalina modulare in estruso di alluminio per aspirazione di gas e fumi inquinanti tramite elementi scorrevoli porta-tubo o porta-braccio articolato. La rigidità strutturale, gli elementi scorrevoli di fissaggio e la pulizia estetica fanno della serie XTK un...

Open the catalog to page 3
