FLUID & ENERGY LUPPLY ASPEN

Product catalog summary

Overview: The document describes the ASPEN floor-mounted column designed for the extraction of used oil and fluids directly from a vehicle's engine. It highlights the technical specifications, performance metrics, and features of the ASPEN and ASPEN-S models.

Specifications:

Maximum Air Pressure: 8 Bar
Output Maximum: ~8 Bar
Pump Ratio: 1:1
Maximum Vacuum: 0.95 Bar
Flow Rate: 0.5 l/min to 1.5 l/min (dependent on oil temperature)

Performance: The performance of the pump is influenced by the temperature of the oil being extracted. The ASPEN and ASPEN-S models are high-performance suction pumps suitable for floor installation.

Features:

Manual On/Off operation
Oil Pressure Manometer
Air Pressure Manometer
Air Pressure Regulator
Double Membrane Pump
Electronic Cable (ASPEN-S only)
Electronic Card Management (ASPEN-S only)
Alarm Sensor for Oil Level Control (ASPEN-S only)
Reset Push Button (ASPEN-S only)
Oil Inlet: 3/8” - 5 meters
Open/Close Valve with Filter
Four Probes - Length: 800 mm

Optional Features: The document mentions optional features but does not specify them in detail.

Catalog excerpts

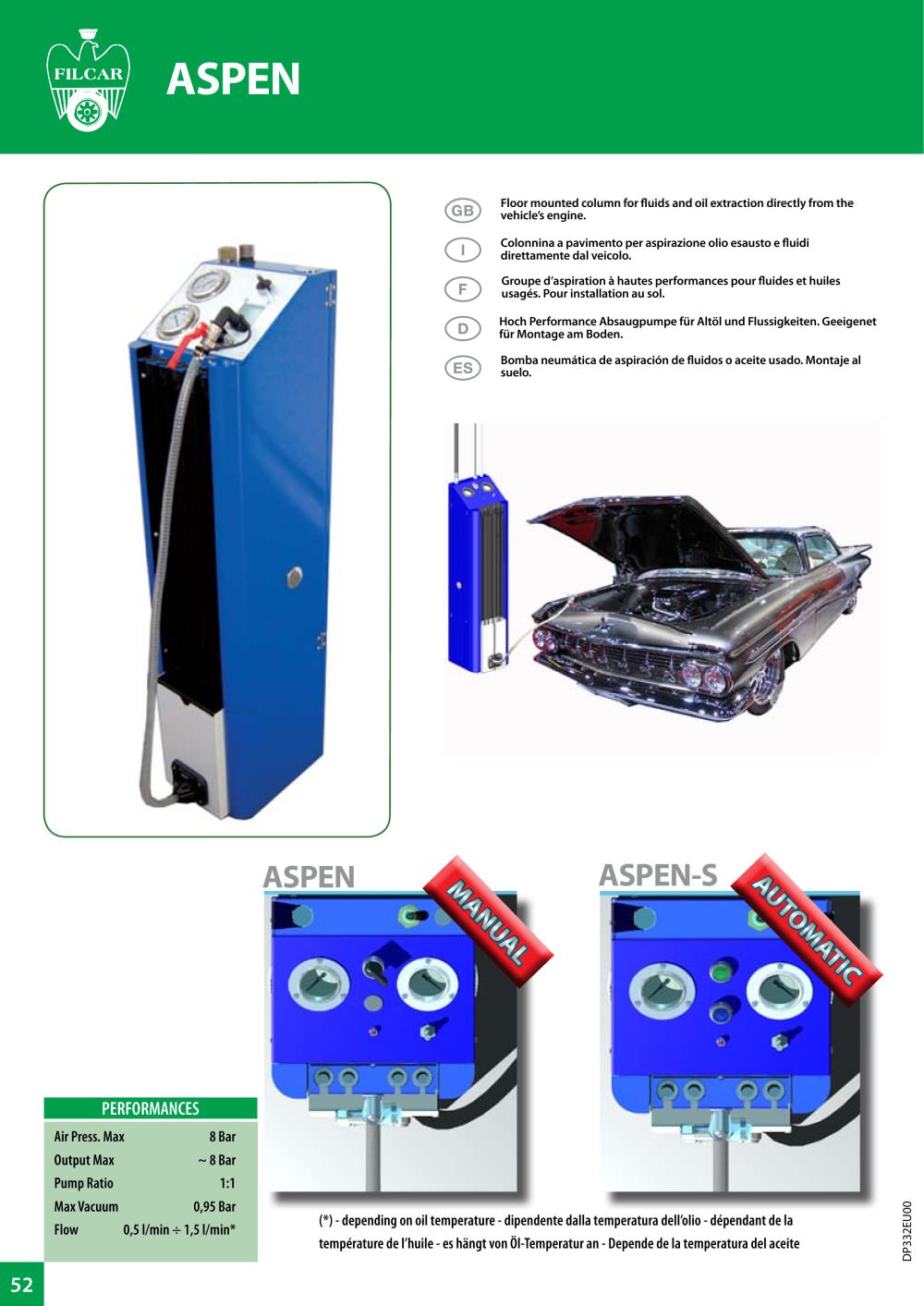

52 ASPEN Colonnina a pavimento per aspirazione olio esausto e fluidi direttamente dal veicolo. Floor mounted column for fluids and oil extraction directly from the vehicle’s engine. Air Press. Max 8 Bar Output Max ~ 8 Bar Pump Ratio 1:1 Max Vacuum 0,95 Bar Flow 0,5 l/min ÷ 1,5 l/min* PERFORMANCES (*) - depending on oil temperature - dipendente dalla temperatura dell’olio - dépendant de la température de l’huile - es hängt von Öl-Temperatur an - Depende de la temperatura del aceite ASPEN ASPEN-S Hoch Performance Absaugpumpe für Altöl und Flussigkeiten. Geeigenet für Montage am Boden. Groupe d’aspiration à hautes performances pour fluides et huiles usagés. Pour installation au sol. Bomba neumática de aspiración de fluidos o aceite usado. Montaje al suelo. DP332EU00 MANUAL AUTOMATIC

Open the catalog to page 1

53 ASPEN-S 100% OIL EXTRACTION !! ASPEN ASPEN-S MANUAL ON - MANUAL OFF ã ã OIL PRESS. MANOMETER ã ã AIR PRESS. MANOMETER ã ã AIR PRESS. REGULATOR ã ã DOUBLE MEMBR. PUMP ã ã ELECTR. CABLE - ã ELECTRONIC CARD MANAGEMENT - ã ALARM SENSOR FOR OIL LEVEL CONTROL - ã RESET PUSH BUTTON - ã AVV.OIL 3/8” - 5 mt ã ã OPEN / CLOSE VALVE WITH FILTER ã ã 4 PROBES - L. 800 mm ã ã DP332EU00 Optional
