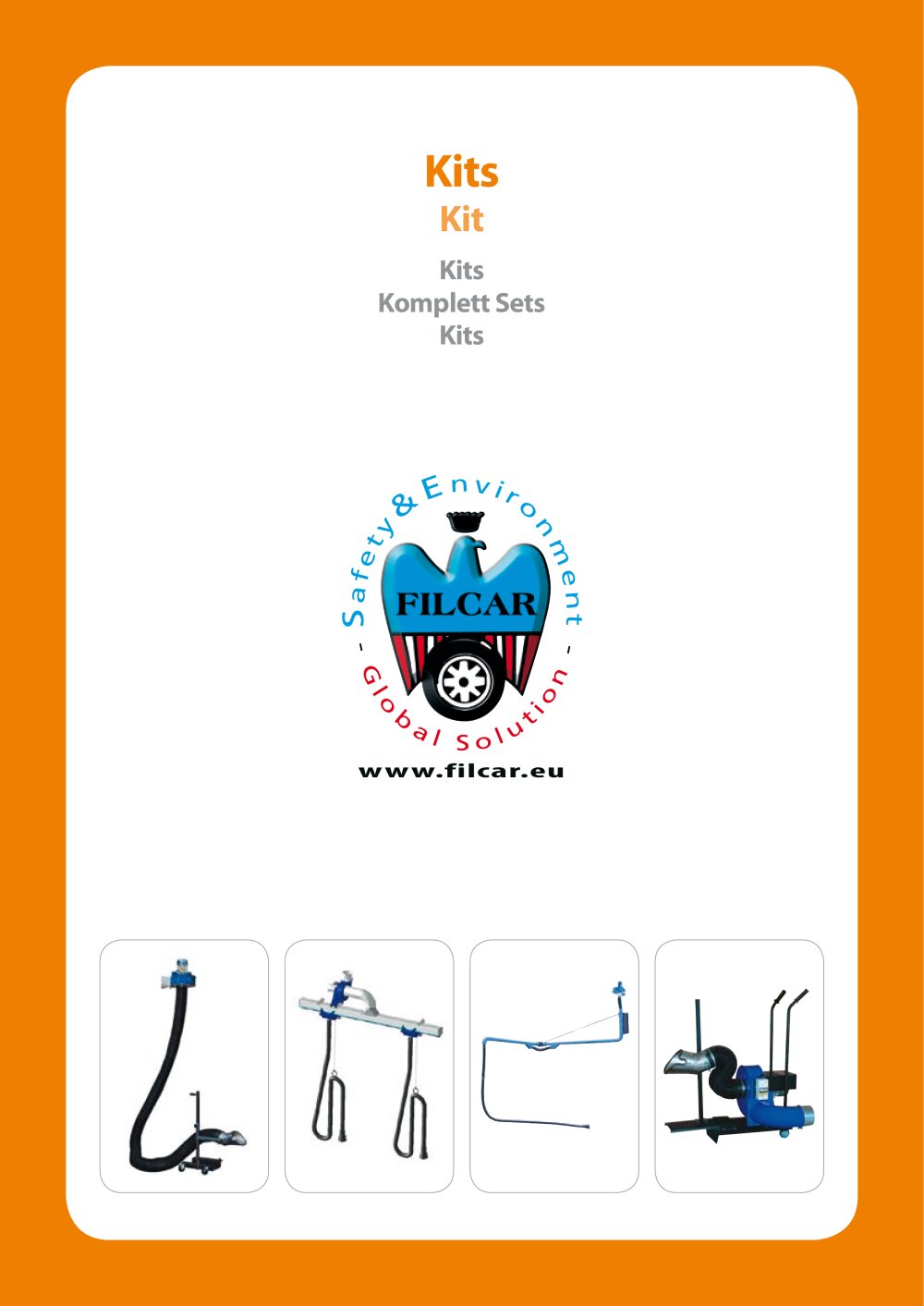

exhaust extraction Kits

Product catalog summary

Overview

This document presents a comprehensive range of exhaust gas extraction systems designed for automotive and industrial applications. The systems utilize aluminium tracks and sliding carriages to facilitate efficient extraction of exhaust gases from vehicles during operation, inspection, or testing.

Main Product Lines

ECOSYSTEM Series (A, B, C, D)

Each ECOSYSTEM variant is a complete exhaust extraction system featuring aluminium tracks (ETK or XTK1) and sliding carriages. They include an electro-aspirator (fan) and provisions for sliding fixing points. The systems differ primarily in track size, fan power, and tube diameter, tailored to various lengths and vehicle types.

  • ECOSYSTEM-A: Uses ETK aluminium track with 75 mm (3") diameter tubes. Fan power ranges from 0.75 kW (1 HP) for single-carriage models to 1.1 kW (1.5 HP) for dual-carriage models. Maximum lengths up to 21 meters (69 ft).
  • ECOSYSTEM-B: Similar to A but with 100 mm (4") diameter tubes and fan power from 0.75 kW to 1.1 kW. Lengths up to 21 meters (69 ft).
  • ECOSYSTEM-C: Uses XTK1 aluminium track with 125 mm (5") diameter tubes. Fan power ranges from 1.1 kW (1.5 HP) to 1.5 kW (2 HP). Lengths up to 30 meters (99 ft).
  • ECOSYSTEM-D: Also uses XTK1 track but with 150 mm (6") diameter tubes. Fan power ranges from 1.5 kW (2 HP) to 2.2 kW (3 HP). Lengths up to 30 meters (99 ft).

All ECOSYSTEM systems operate safely up to 200°C (392°F).

AU-II Series

Compact exhaust extraction systems with ETK aluminium track and sliding carriages, designed for various exhaust temperatures and flow rates:

  • AU-II/ECO: 100 mm (4") tube, 0.75 kW (1 HP), 650 m³/h airflow, max 200°C.
  • AU-II/PRO: 150 mm (6") tube, 1.1 kW (1.5 HP), 1400 m³/h airflow, max 200°C.
  • AU-II/FAP: Same as PRO but rated for 400°C (752°F).
  • AU-II/DYNO: 200 mm (8") tube, 2.2 kW (3 HP), 2500 m³/h airflow, max 1000°C (1832°F).

Articulated Arm

A 6-meter articulated arm equipped with a fan for localized exhaust gas extraction, suitable for flexible positioning around vehicles.

TROTTER Mobile Fans

Mobile exhaust gas extraction units designed for work area use:

  • TROTTER-50 and TROTTER-100: Mobile fans with airflow capacities of 1000 m³/h and 1600 m³/h respectively, powered by 0.35 kW and 0.75 kW motors. Both use 100 mm diameter hoses, 10 meters long.
  • TROTTER-S Series: Mobile fans with adjustable nozzle rods for enhanced targeting, available in 100 mm and 150 mm hose diameters, airflow from 1900 m³/h to 2800 m³/h, powered by 0.75 kW to 1.15 kW motors.

ECOARGON and ARGON Wall-Mounted Units

Fixed wall-mounted exhaust extraction units for small to medium vehicles:

  • ECOARGON: Available in single and double configurations, with airflow from 350 m³/h to 700 m³/h, hose diameters of 75 mm, lengths from 5 to 10 meters, powered by 0.35 kW motors.
  • ARGON: Similar to ECOARGON but with additional options including 100 mm hose diameter and airflow up to 1300 m³/h, motor power up to 0.75 kW.

TEST-LINE Systems

Exhaust extraction systems designed for inspection and brake testing operations, featuring aluminium tracks and sliding carriages that follow the vehicle:

  • Available in lengths from 9 to 21 meters (30 to 69 ft), hose diameters of 100 mm and 150 mm.
  • Fan power ranges from 0.75 kW (1 HP) to 1.5 kW (2 HP).
  • Operating temperature up to 200°C (392°F).

Technical Specifications Summary

SystemLength (m/ft)CarriagesTube Diameter (mm/in)Max Temp (°C/°F)Fan ModelPower (HP/kW)Airflow (m³/h/cfm)
ECOSYSTEM-A6-21 / 20-691 or 275 / 3"200 / 392BGT-75/1400.75 - 1.5 / 0.75 - 1.1Not specified
ECOSYSTEM-B6-21 / 20-691 or 2100 / 4"200 / 392BGT-100/1400.75 - 1.5 / 0.75 - 1.1Not specified
ECOSYSTEM-C9-30 / 30-991 or 2125 / 5"200 / 392BGPG-125/2001.5 - 2 / 1.1 - 1.5Not specified
ECOSYSTEM-D9-30 / 30-991 or 2150 / 6"200 / 392BGPG-150/2002 - 3 / 1.5 - 2.2Not specified
AU-II Series5 / 16.41100-200 / 4-8"200-1000 / 392-1832BC-AU-II, BOT-600 CAR0.75 - 3 / 0.75 - 2.2650 - 2500 / 382 - 1470
TROTTERMobilen/a100-150 / 4-6"Not specifiedn/a0.35 - 1.15 / 0.35 - 1.151000 - 2800 / 588 - 1646
ECOARGON / ARGON3-10 / 10-321 or 275-100 / 3-4"Not specifiedBGT-75/140, BGT-100/1400.35 - 0.75 / 0.35 - 0.75350 - 1300 / 206 - 764
TEST-LINE9-21 / 30-691100-150 / 4-6"200 / 392BGA-100-PM, BG-150/200-PM0.75 - 1.5 / 0.75 - 1.5Not specified

Optional Accessories

  • Sliding fixing supports for various tube diameters (75, 100, 125, 150 mm).
  • Expulsion hoses for mobile units (TROTTER series) in matching diameters and lengths.
  • Automatic disconnection and return kits for TEST-LINE systems to enhance operational safety and convenience.

Key Features and Recommendations

  • All systems are designed for safe operation up to 200°C, with some AU-II models rated for higher temperatures (up to 1000°C).
  • Sliding carriages allow the extraction system to follow the vehicle during movement, ensuring continuous exhaust gas capture.
  • Fan power and tube diameter selection should be matched to the vehicle size and expected exhaust flow rates.
  • Mobile units provide flexibility for work areas without fixed extraction infrastructure.
  • Wall-mounted units are suitable for small to medium vehicles with limited space requirements.
  • Optional accessories improve installation flexibility and operational safety.

This document serves as a technical catalog for selecting appropriate exhaust gas extraction solutions based on vehicle size, operational environment, and temperature requirements.

See more

Catalog excerpts

exhaust extraction Kits-2

76 ECOSYSTEM-A Impianto completo di aspirazione gas di scarico con canalina ETK e carrelli scorrevoli portatubo. Completo di elettroaspiratore e predisposizione per staffaggio scorrevole. Complete exhaust extraction system with aluminium track ETK and sliding carriages. Fan and predisposition for sliding fixing point are included. Complete exhaust extraction system with aluminium track ETK and sliding carriages. Fan and predisposition for sliding fixing point are included. Kanalanlage komplett mit Ventilator, Laufwagen und Zubehöre Sistema completo de extracción de gases de escape formado por...

 Open the catalog to page 2
exhaust extraction Kits-3

77 ECOSYSTEM-B ECOSYS-B-6/1 6 mt - 20 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 3 °C ECOSYS-B-9/1 9 mt - 30 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 4 ECOSYS-B-12/1 12 mt - 40 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 5 ECOSYS-B-15/1 15 mt - 50 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 6 ECOSYS-B-18/1 18 mt - 59 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 7 ECOSYS-B-21/1 21 mt - 69 ft 1 7,5 mt - 25 ft 200° C - 392° F BGT-100/140 1 HP - 0,75 Kw 8 ECOSYS-B/1 ECOSYS-B-6/2 6 mt - 20 ft 2 7,5 mt...

 Open the catalog to page 3
exhaust extraction Kits-4

78 ECOSYSTEM-C Impianto completo di aspirazione gas di scarico con canalina XTK1 e carrelli scorrevoli portatubo. Completo di elettroaspiratore e predisposizione per staffaggio scorrevole. Complete exhaust extraction system with aluminium track XTK1 and sliding carriages. Fan and predisposition for sliding fixing point are included. Complete exhaust extraction system with aluminium track XTK1 and sliding carriages. Fan and predisposition for sliding fixing point are included. Kanalanlage komplett mit Ventilator, Laufwagen und Zubehöre Sistema completo de extracción de gases de escape formado...

 Open the catalog to page 4
exhaust extraction Kits-5

79 ECOSYSTEM-D °C ECOSYS-D-9/1 9 mt 30 ft 1 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 2 HP 1,5 Kw 4 ECOSYS-D-12/1 12 mt 40 ft 1 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 2 HP 1,5 Kw 5 ECOSYS-D-15/1 15 mt 50 ft 1 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 2 HP 1,5 Kw 6 ECOSYS-D-18/1 18 mt 59 ft 1 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 2 HP 1,5 Kw 7 ECOSYS-D/1 °C ECOSYS-D-12/2 12 mt 40 ft 2 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 3 HP 2,2 Kw 5 ECOSYS-D-15/2 15 mt 50 ft 2 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 3 HP 2,2 Kw 6 ECOSYS-D-18/2 18 mt 59 ft 2 7,5 mt 25 ft 200° C 392° F BGPG- 150/200 3...

 Open the catalog to page 5
exhaust extraction Kits-6

80 AU-II Impianto completo di aspirazione gas di scarico con canalina ETK e carrelli scorrevoli portatubo. Completo di elettroaspiratore e predisposizione per staffaggio scorrevole. Complete exhaust extraction system with aluminium track ETK and sliding carriages. Fan and predisposition for sliding fixing point are included. Complete exhaust extraction system with aluminium track ETK and sliding carriages. Fan and predisposition for sliding fixing point are included. Kanalanlage komplett mit Ventilator, Laufwagen und Zubehöre Sistema completo de extracción de gases de escape formado por un carril...

 Open the catalog to page 6
exhaust extraction Kits-7

81 Braccio articolato da 6 mt completo di aspiratore per l’evacuazione dei gas di scarico Articulated arm 6 mt long complete with fan for the extraction of car’s exhaust Bras articulé de 6 mt. complet d’aspirateur pour l’évacuation des gases d’échappement Schwenarm 6 m. Lang für die Abgasabsaugung. Brazo articulado de 6 metros equipado con electroventilador para la aspiración de los gases de escape. 75 TSC BP GAS (optional) 100 ECOBP-6000 GAS 6 mt 20 fr 75 mm 3 “ 0,75 HP 0,55 Kw 5 mt 16,4 ft BGT-75/140 Ø ECOBP-6000 GAS/100 6 mt 20 fr 100 mm 4 “ 0,75 HP 0,55 Kw 5 mt 16,4 ft BGT-75/140 TSC BP GAS...

 Open the catalog to page 7
exhaust extraction Kits-8

82 TROTTER Aspiratore mobile per estrazione gas di scarico dalla zona di lavoro. Mobile fan for exhaust gas extraction from the working area Unitée mobile pour l’evacuation des gases d’échappement de l’aire de travail. Mobiles Absauggerät für PKW. Unidad movil de evacuacion de gases de escape desde la zona de trabajo Mod A Ø (mm) B (mm) C (mm) D (mm) E Ø (mm) F (mm) G (mm) H Min Max (mm) TROTTER 50 100 370 800 400 140 300 700 600 700 TROTTER 100 150 400 940 454 180 390 830 675 720 TROTTER-50 TROTTER-100 100 50 TROTTER-50 1000 m3/h 588 c.f.m. 0,5 HP 0,35 Kw TROTTER-100 1600 m3/h 940 c.f.m. 1 HP...

 Open the catalog to page 8
exhaust extraction Kits-9

83 TROTTER-S Aspiratore mobile con bocchetta montata su asta regolabile per estrazione gas di scarico dalla zona di lavoro. Mobile fan with nozzle mounted on adjustable rod for exhaust gas extraction from the working area. Unitée mobile avec entonnoir monté sur pied regulable pour l’evacuation des gases d’échappement de l’aire de travail. Mobiles Absauggerät für LKW oder AU. Unidad movil con boquerel montado sobre asta con regulacion para la evacuación de gases de escape desde la zona de trabajo. 150 100 TROTTER-100/S 1900 m3/h 1117 c.f.m. 1 HP 0,75 Kw TROTTER-150/S 2800 m3/h 1646 c.f.m. 1,5...

 Open the catalog to page 9
exhaust extraction Kits-10

84 ECOARGON Unità fissa a parete per l’aspirazione dei gas di scarico di veicoli di piccola e media cilindrata. Wall mounted exhaust extraction unit for small and medium size vehicles. Unitée fixe pour l’evacuation des gases d’échappement de Vehicules Legeres. Einzel- und Doppel Miniset für PKW. Unidad fija a pared, para la aspiración de los gases de escape de turismos de pequeña y media cilindrada. ECOARG1-75/5 350 m3/h 206 c.f.m. 0,5 HP 0,35 Kw 5 mt 16,5 ft 75 mm 3 “ BGT-75/140 Ø 75 ECOARG1-75/7.5 350 m3/h 206 c.f.m. 0,5 HP 0,35 Kw 7,5 mt 25 ft 75 mm 3 “ BGT-75/140 ECOARG1-75/10 350 m3/h 206...

 Open the catalog to page 10
exhaust extraction Kits-11

85 ARGON Unità fissa a parete per l’aspirazione dei gas di scarico di veicoli di piccola e media cilindrata. Wall mounted exhaust extraction unit for small and medium size vehicles. Unitée fixe pour l’evacuation des gases d’échappement de Vehicules Legeres. Einzel- und Doppel Miniset für PKW. Unidad fija a pared, para la aspiración de los gases de escape de turismos de pequeña y media cilindrada. ARGON-1-75/3 350 m3/h 206 c.f.m. 0,5 HP 0,35 Kw 3 mt 10 ft 75 mm 3 “ BGT-75/140 Ø ARGON-1-75/5 350 m3/h 206 c.f.m. 0,5 HP 0,35 Kw 5 mt 16,4 ft 75 mm 3 “ BGT-75/140 ARGON-1-75/7 350 m3/h 206 c.f.m. 0,5...
