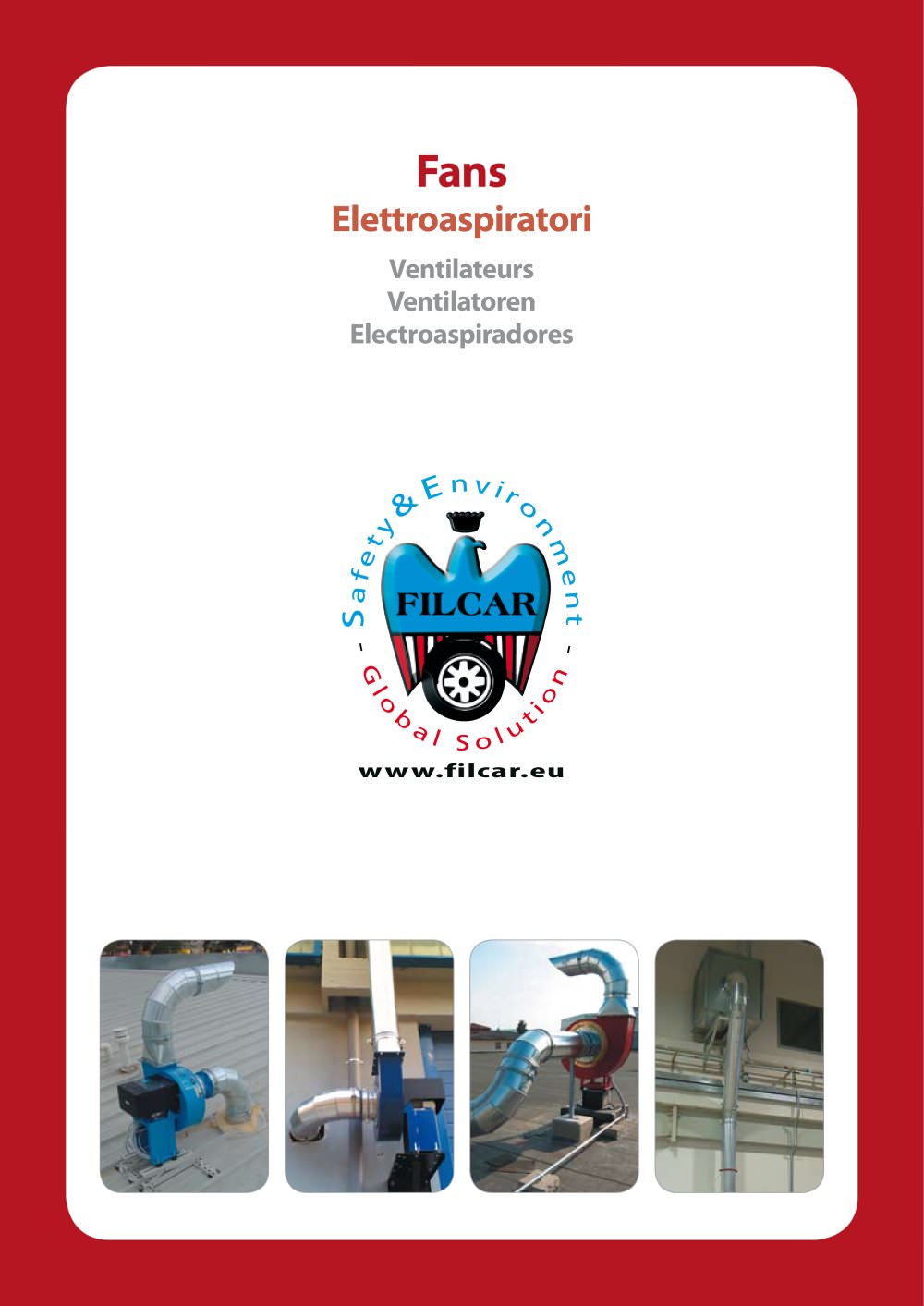

exhaust extraction Fans

Product catalog summary

Overview: This document provides technical specifications and options for various models of fans and electro-aspirators made from metal sheet steel and aluminum. It includes detailed measurements, power specifications, and optional accessories for each model.

Specifications:

AL Series: Metal sheet steel fans with inlet and outlet flanges. Models range from AL-50 to AL-2000, with varying dimensions, weight, horsepower (HP), and kilowatt (Kw) ratings. Noise levels (dB) and operational voltage (230V-400V / 3phase / 50Hz) are specified.
AJ Series: Aluminum fans with inlet and outlet flanges. Models range from AJ-35 to AJ-150, with specific dimensions, weight, HP, Kw, revolutions per minute (r.p.m.), and noise levels (dB).
AK Series: Similar to the AJ series, these aluminum fans also come with inlet and outlet flanges. Models range from AK-50 to AK-150, with detailed specifications on dimensions, weight, HP, Kw, r.p.m., and noise levels (dB).

Optional Accessories:

ME Series: Motor options ranging from 0.5 HP to 20 HP.
CM Series: Motor options similar to the ME series, with specific HP ranges.
SET-PIEDINI: Foot set options for different HP ranges.
CV Series: Additional motor options with specified HP ranges.

Switchboards: Various switchboard options (INT and QE-AC series) are available, with specific amperage and HP/Kw ratings. Some models include a timer.

Performance Data:

AL Series: Medium pressure with airflow ranging from 300 to 1200 cubic meters per hour (MC/H).
AJ Series: High pressure with airflow ranging from 60 to 2400 MC/H.
AK Series: High pressure with airflow ranging from 200 to 1350 MC/H.

Catalog excerpts

70 AK Aspiratore in alluminio completo di flangie di entrata e uscita Aluminium fan complete with inlet and outlet flanges Electro-aspirateur en aluminium avec brides d’entré et de sortie Ventilator aus Aluminium mit Drück und Sauganschlüssen Aspirador de aluminio con bocas de entrada y salida. Mod A (mm) B (mm) C Ø (mm) D (mm) E (mm) F Ø (mm) G (mm) H (mm) I (mm) L (mm) M (mm) Kg HP Kw r.p.m. *dB AK-50 164 230 404 446 254 120 155 10 100 149 120 10 0,5 0,37 2800 70 AK-75 180 253 441 486 276 120 155 10 100 149 120 11 0,75 0,55 2800 73 AK-100 201 283 493 529 295 120 155 10 100 154 120 19 1 0,75...

Open the catalog to page 6

73 REPORT CM AL GNT QE-AC.1 SET-PIEDINI CV ME AL 300/1200 MC/H 177/7056 CFM MED PRESS AJ 60/2400 MC/H 94/1441 CFM HIGH PRESS AK 200/1350 MC/H 118/794 CFM HIGH PRESS DP053EU00
