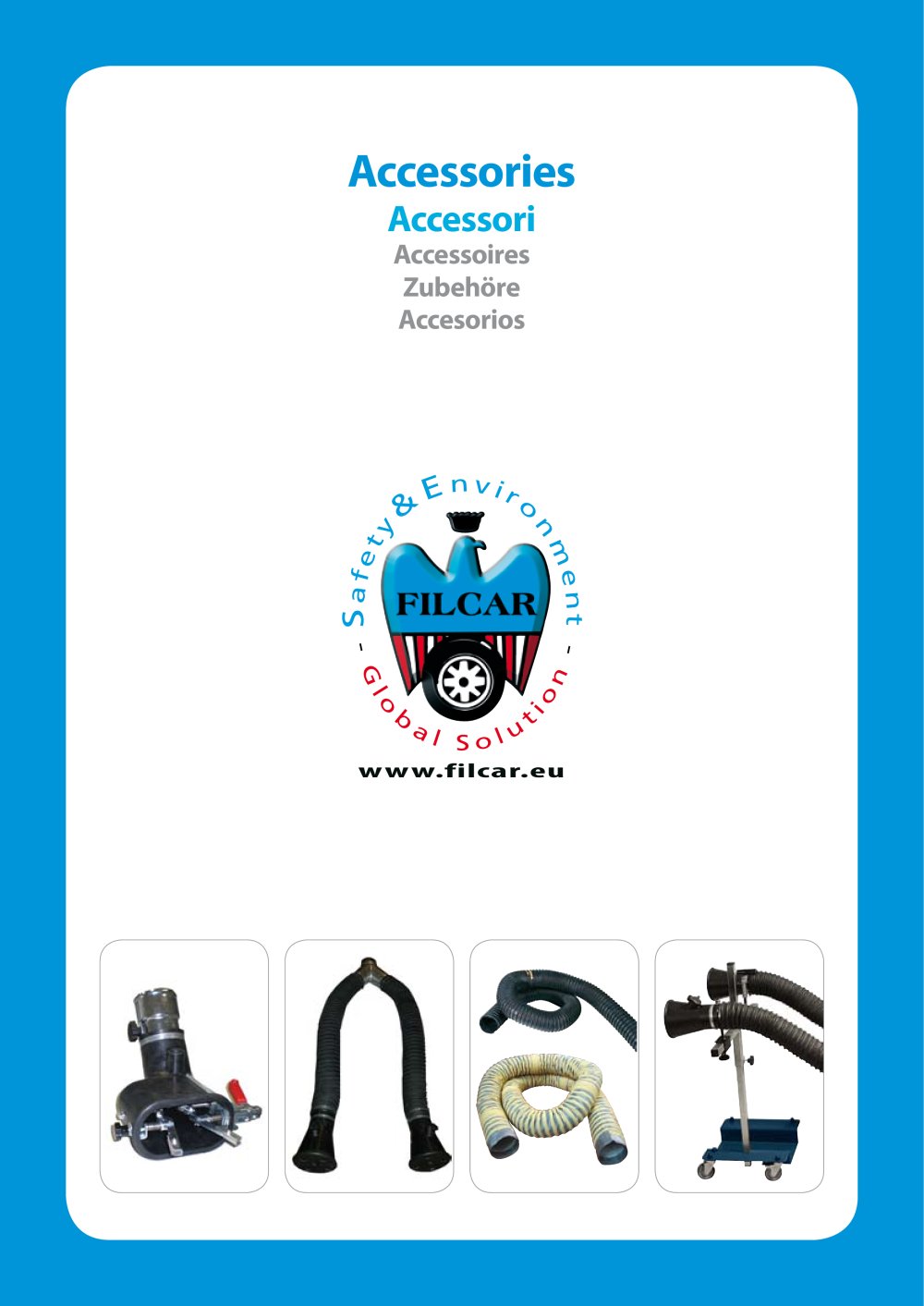

exhaust extraction Accessories

Product catalog summary

Overview: The document provides comprehensive specifications and descriptions of various industrial hoses and accessories, focusing on their temperature resistance, flexibility, and environmental suitability.

EUROGAS Hoses: These hoses are reinforced with a nylon coil, making them crush-proof and suitable for temperatures up to 200°C. They are noted for their flexibility, lightness, and resistance, available in diameters from 75mm to 200mm and lengths from 2.5m to 40m.

FIREGAS Hoses: Constructed from aluminized glass fabric with a steel helix, these hoses can withstand temperatures from -40°C to 400°C or 1000°C, depending on the model. They are not crush-proof and have a maximum length of 10 meters.

PAVIGAS Hoses: These rubber hoses are designed for floor-level installation, are crush-proof, and can handle temperatures up to 150°C. They are not suitable for hose reels.

ASPIRFLEX Hoses: Made from glass fabric coated with PVC and reinforced with a steel coil, these hoses are suitable for temperatures from -20°C to 110°C, with a maximum length of 10 meters.

ALLUFLEX Hoses: These are seamed aluminum hoses that are fire-proof and can resist temperatures up to 300°C, with an extensible length from 1 to 3 meters.

Accessories: The document details accessories such as wall bearings, pipe couplings, and various nozzles made from stainless steel or rubber. These are designed for specific applications like C.O. testing and include features like quick coupling systems and self-centering devices.

Key Specifications: Temperature resistance across products ranges from 110°C to 1000°C. Hoses are available in multiple diameters and lengths to meet diverse industrial needs. Accessories enhance the functionality and ease of use of the hoses.

Specifications: The document outlines models of rubber and stainless steel nozzles designed for double exhaust systems, equipped with manual locking grippers and CO intake ports with a diameter of 20 mm. Models are categorized based on hose diameter and suction inlet dimensions.

Models and Dimensions: Includes BGA-75 and BGA-100 rubber nozzles, Y-series adaptors for twin pipes, BRMS series trolley-mounted nozzles, BRM series nozzles on stands, BCA series stainless steel nozzles, and BC-AUII series trolley-mounted stainless steel nozzles.

Key Features: Features include manual locking grippers, CO intake ports, adjustable rods for positioning, trolley-mounted options for mobility, and stainless steel options for durability and corrosion resistance.

Applications: These nozzles are suitable for vehicles with double exhaust systems, providing secure attachment and efficient emissions testing capabilities.

Catalog excerpts

30 EUROGAS - FIREGAS EUROGAS Completely Crush-proof nylon coil reinforced hose for max. temperature of 200°C. Strongly recommended for its great flexibility, lightness and resistance. Tubazione armata con spirale in nylon antischiacciamento per temperatura max 200°C. Particolarmente consigliata per la sua grande flessibilità, leggerezza e resistenza. Ttuyau armé de spirale en nylon, antiécrasement, température maximum 200 °C. Particulièrement conseillé pour leur grande souplesse, leur légèreté et leur résistance. Flexibler Abgasschlauch mit überfahrbarer Nylonspirale. Leicht, Flexibler und Temperaturbeständig...

Open the catalog to page 2

31 PAVIGAS - ASPIRFLEX - ALLUFLEX PAVIGAS Rubber made crush-proof hose for floorlevel installation with, maximum working temperature of 150°C (302°F). Not suitable for hose reels. Tubazione completamente in gomma antischiacciamento per impiego gravoso a pavimento, massima temperatura di esercizio 150°C. Non adatta agli arrotolatori. Tuyau en caoutchouc anti-écrasement pour une utilisation au niveau du sol. Température d’exercice max 150 °C. Déconseillé pour les enrouleurs. Voll überfahrbarer Bodenabgasschlauch, Temperatubeständing bis 150 Grad. Nicht aufrollbar. Manguera de goma, antiaplastamiento....

Open the catalog to page 3

32 SM - TE - ATR SM Wall bearings for inactive hoses Supporti a muro per tubazione a riposo Support muraux pour les tuyaux inacifs. Wandhalterungen für das Ablegen der Schläuche Soporte a muro para mangueras en reposo TE Sheet-metal pipe couplings for flexible hoses Manicotti in lamiera per raccordare la tubazione flessibile. Manchons en tôle pour raccorder les tuyaux Verbindungshülse für Schläuche Manguitos para empalmar las mangueras flexibles Model TE-75 75 TE-100 100 TE-125 125 TE-150 150 TE-180 180 TE-200 200 Ø mm ATR/B Quick metal bayonett coupling for flexible hoses Attacco rapido a baionetta...

Open the catalog to page 4

33 BO - BR - BOP - BOT BO Stainless steel nozzle with closing flap and intake for C.O. (Ø 20 mm) tester on request. Bocchetta in acciaio inox con paletta di chiusura e, a richiesta, apertura per sonda C.O. Entonnoir en acier inox avec clapet de fermeture et, sur demande, prise C.O. (Ø 20 mm) Edelstahltrichter mit Klappe und (auf Anfrag) C.O Anschluss für die Sonde (20 mm) Boquerel de acero inoxidable con tapa de cierre, y, bajo pedido, con toma de CO. (Ø 20 mm). Model for hose Ø mm suction inlet Ø mm BOC-75/100 75 100 BO-75/100 * 75 100 BO-100/100 * 100 100 BO-100/140 * 100 140 BO-100/160 * 100...

Open the catalog to page 5

34 BGT - BG BG-200 Rubber nozzle with intake for C.O. (Ø 32 mm). Bocchetta in gomma con ingresso sonda per C.O. (Ø 32 mm). Entonnoir en caoutchouc avec prise C.O. (Ø 32 mm) Gummitrichter mit Anschluss für C.O. (DN 32) Boquerel de goma con toma CO (Ø 32 mm) Model for hose Ø mm suction inlet Ø mm BG-75/200 75 200 BG-100/200 100 200 BG-125/200 125 200 BG-150/200 150 200 BG-180/200 180 200 BG-200/200 200 200 Model for hose Ø mm suction inlet Ø mm BGT-75/140 75 140 BGT-100/140 100 140 BGT-125/140 125 140 BGT Rubber nozzle with silicon remouvable cap and intake for C.O. (Ø 32 mm). Bocchetta in gomma...

Open the catalog to page 6

35 BGPC - BGPG - BGPM Model for hose Ø mm suction inlet Ø mm BGPC-75/140 75 140 BGPC-100/140 100 140 BGPC-125/140 125 140 BGPC-100/200 100 200 BGPC-125/200 125 200 BGPC-150/200 150 200 BGPC Rubber nozzle with “crocodile” gripper and intake for C.O. (Ø 32 mm). Bocchetta in gomma con pinza “a coccodrillo” e ingresso sonda per C.O. (Ø 32 mm) Entonnoir en caoutchouc avec pince étau et prise C.O. Gummitrichter mit “Krokodile” Klemmzange und mit Anschluss für C.O. (DN 32) Boquerel de goma con pinza “cocodrilo” y toma de CO. (Ø 32 mm) Model for hose Ø mm suction inlet Ø mm BGPG-75/140 75 140 BGPG-100/140...

Open the catalog to page 7

36 BGA - BGA-PI - BGA-PM BGA Oval rubber nozzle for double exhausts with intake for C.O. (Ø 20 mm). Bocchetta ovale in gomma per scarichi sdoppiati con ingresso sonda per C.O. (Ø 20 mm) Entonnoir en caoutchouc pour pots d’echappement doubles avec prise C.O. (Ø 20 mm) Gummitrichter Oval für Doppelauspuffe und mit Anschluss für C.O. (DN 20 mm) Boquerel oval de goma para dobles tubos de escape, con toma de CO (Ø 20 mm) Model for hose Ø mm suction inlet Ø mm BGA-75 75 165x88 BGA-100 100 165x88 SER Model for hose Ø mm suction inlet Ø mm BGA-75-PI 75 165x88 BGA-100-PI 100 165x88 BGA-PI Oval rubber...

Open the catalog to page 8

37 BCA - BRM Model hose Ø mm Y Ø mm BRMS-75 75 75 BRMS-100 75 100 BRMS-125 100 125 BRMS Trolley mounted nozzle with scratch proof rubber cones BGT with rods for vertical and horizontal adjustment Bocchetta carrellata con 2 coni in gomma BGT montati su aste regolabili verticalmente e orizzontalmente. Double entonnoir en caoutchouc BGT sur chariot avec regulation horizontale et verticale. 2 Gummitrichter Modell BGT montiert auf einem Wagen mit Stativ, vertikal und horizontal verstellbar. Doble boquerel de goma BGT dobles tubo de escape, con astas de regulación vertical y horizontal. Montado sobre...

Open the catalog to page 9
