DUST EXTRACTORS Kit
DUST EXTRACTORS Kit
- Models: The document lists several models such as GIN-200ST/BP5-220, PAN-200F/BP5-220, and FUN3/TRIPLEX/C3, each with specific configurations for different power and tool capacities.
- Tool Capacity: Most kits are designed to handle up to 2 tools simultaneously, with some models like the FUN3/TRIPLEX capable of handling 2 to 3 tools.
- Articulated Arm: Each kit includes a BP articulated arm, which is essential for connecting the tools to the extraction unit.
- Extraction Unit: Models like GINGO, PANDA/F, and FUNNY-300 are mentioned as the primary extraction units, each tailored for specific operational needs.
- Connection Cables: The kits come with necessary cables for connecting the arm to the turbine or extraction unit, ensuring seamless operation.
- The document includes a detailed legend explaining various components and their functions, such as connectors, tubes, and control units.
- Specific parts like CA-TE80FMM and ASPIRCAR-400 are highlighted for their roles in the assembly and operation of the kits.
- Ensure compatibility of the kit with the intended tools and preparation area requirements.
- Follow the provided technical details for proper installation and maintenance of the kits.
Catalog excerpts

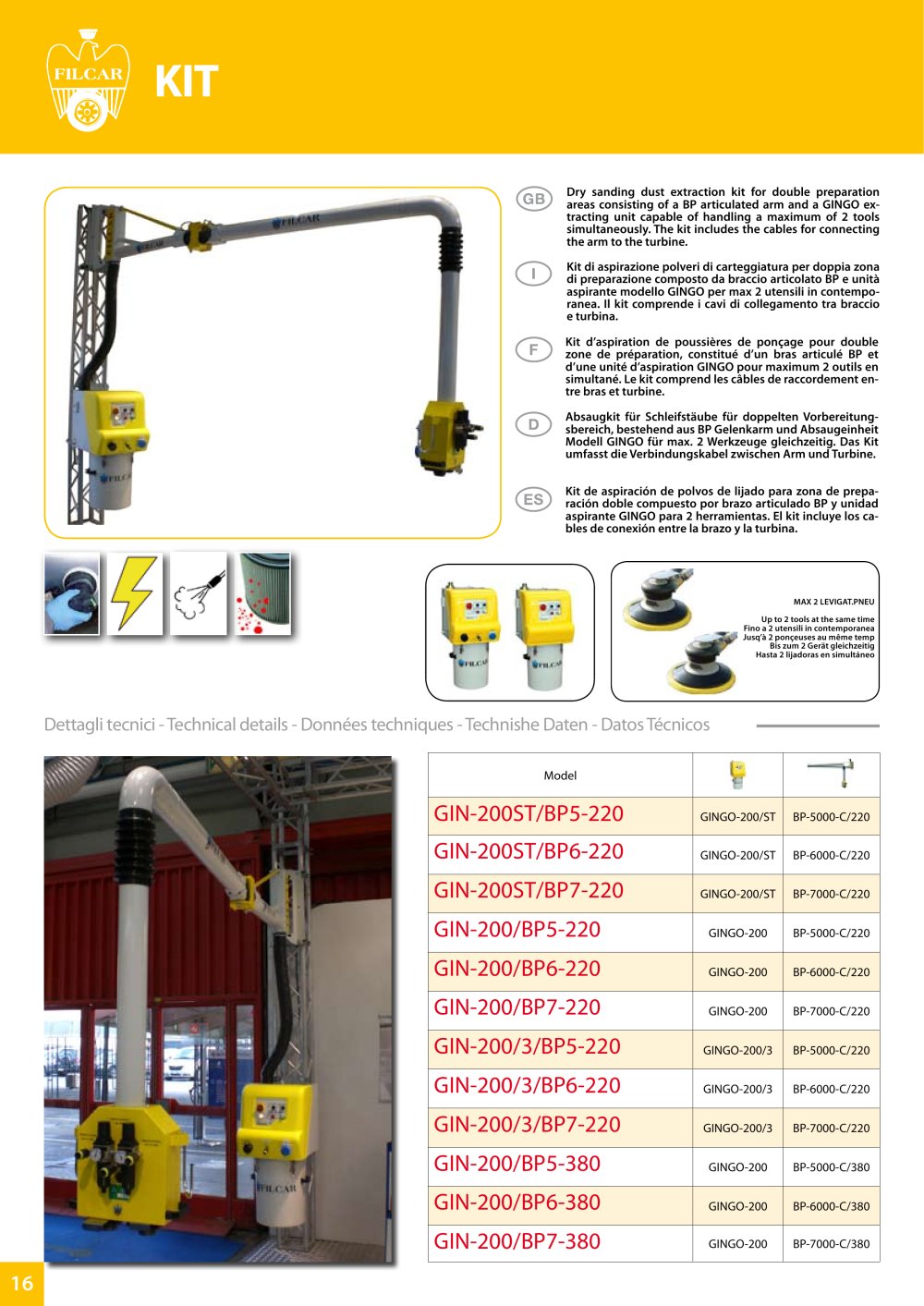

16 Model GIN-200ST/BP5-220 GINGO-200/ST BP-5000-C/220 GIN-200ST/BP6-220 GINGO-200/ST BP-6000-C/220 GIN-200ST/BP7-220 GINGO-200/ST BP-7000-C/220 GIN-200/BP5-220 GINGO-200 BP-5000-C/220 GIN-200/BP6-220 GINGO-200 BP-6000-C/220 GIN-200/BP7-220 GINGO-200 BP-7000-C/220 GIN-200/3/BP5-220 GINGO-200/3 BP-5000-C/220 GIN-200/3/BP6-220 GINGO-200/3 BP-6000-C/220 GIN-200/3/BP7-220 GINGO-200/3 BP-7000-C/220 GIN-200/BP5-380 GINGO-200 BP-5000-C/380 GIN-200/BP6-380 GINGO-200 BP-6000-C/380 GIN-200/BP7-380 GINGO-200 BP-7000-C/380 Kit di aspirazione polveri di carteggiatura per doppia zona di preparazione composto da braccio articolato BP e unità aspirante modello GINGO per max 2 utensili in contemporanea. Il kit comprende i cavi di collegamento tra braccio e turbina. MAX 2 LEVIGAT.PNEU Up to 2 tools at the same time Fino a 2 utensili in contemporanea Jusq’à 2 ponçeuses au même temp Bis zum 2 Gerät gleichzeitig Hasta 2 lijadoras en simultáneo Dry sanding dust extraction kit for double preparation areas consisting of a BP articulated arm and a GINGO extracting unit capable of handling a maximum of 2 tools simultaneously. The kit includes the cables for connecting the arm to the turbine. Kit d’aspiration de poussières de ponçage pour double zone de préparation, constitué d’un bras articulé BP et d’une unité d’aspiration GINGO pour maximum 2 outils en simultané. Le kit comprend les câbles de raccordement entre bras et turbine. Absaugkit für Schleifstäube für doppelten Vorbereitungsbereich, bestehend aus BP Gelenkarm und Absaugeinheit Modell GINGO für max. 2 Werkzeuge gleichzeitig. Das Kit umfasst die Verbindungskabel zwischen Arm und Turbine. Kit de aspiración de polvos de lijado para zona de preparación doble compuesto por brazo articulado BP y unidad aspirante GINGO para 2 herramientas. El kit incluye los cables de conexión entre la brazo y la turbina. KIT Dettagli tecnici - Technical details - Données techniques - Technishe Daten - Datos Técnicos
Open the catalog to page 1
17 Model PAN-200F/BP5-220 PANDA-220/F BP-5000-C/220 PAN-200F/BP6-220 PANDA-220/F BP-6000-C/220 PAN-200F/BP7-220 PANDA-220/F BP-7000-C/220 MAX 2 LEVIGAT.PNEU Up to 2 tools at the same time Fino a 2 utensili in contemporanea Jusq’à 2 ponçeuses au même temp Bis zum 2 Gerät gleichzeitig Hasta 2 lijadoras en simultáneo PANDA-KIT/BP Set of fittings for pneumatic connection Kit accessori per connessione pneumatica Groupe d’air comprimé détendeur Set de accesorios para conexión neumática Zubehör Set für Pneumatischen Anschluss PANDA-220/F Kit di aspirazione polveri di carteggiatura per doppia zona di...
Open the catalog to page 2
18 Model FUN3/TRIPLEX/C3 FUNNY-300/F BP-TRIPLEX/C3 FUN3/TRIPLEX/C2 FUNNY-300/F BP-TRIPLEX/C2 Kit di aspirazione polveri di carteggiatura per doppia zona di preparazione composto da braccio con tripla centralina BP-TRIPLEX e unità aspirante modello FUNNY-300 per 2/3 utensili in contemporanea. Il kit comprende 3 mt di collegamento tra braccio e unità aspirante. Sanding dust extraction kit for double preparation areas consisting of a BP-TRIPLEX arm with triple control unit and a FUNNY-300 turbine capable of handling 2/3 tools simultaneously. The kit includes a 3 m cables for connecting the arm to...
Open the catalog to page 3All FILCAR catalogs and technical brochures
