Filamatic Synchromat
Filamatic Synchromat
- The Synchromat offers bottom-up, locate, and static fill modes for nozzle position control, allowing for quick volume adjustments.
- The design is expandable from 2 to 20 nozzles, accommodating a range of products from free-flowing to viscous, and various container sizes and shapes.
- The unit is free-standing with stainless steel construction and includes a programmable controller with an optional HMI touchscreen.
- Product supply options include floor level reservoir, overhead supply, or a pressurized source.
- An optional air motor drive is available for hazardous environments.
- The multi-stroke system extends the range beyond 1 liter, with fill accuracy of ±0.5% or better.
- Fill rate capabilities range from up to 34 containers per minute (cpm) with 2 filling heads to up to 200 cpm with 20 filling heads.
- The document lists various piston pump sizes and models, detailing the number of filling units available for each size, ranging from 1 to 1100 mL.
Catalog excerpts

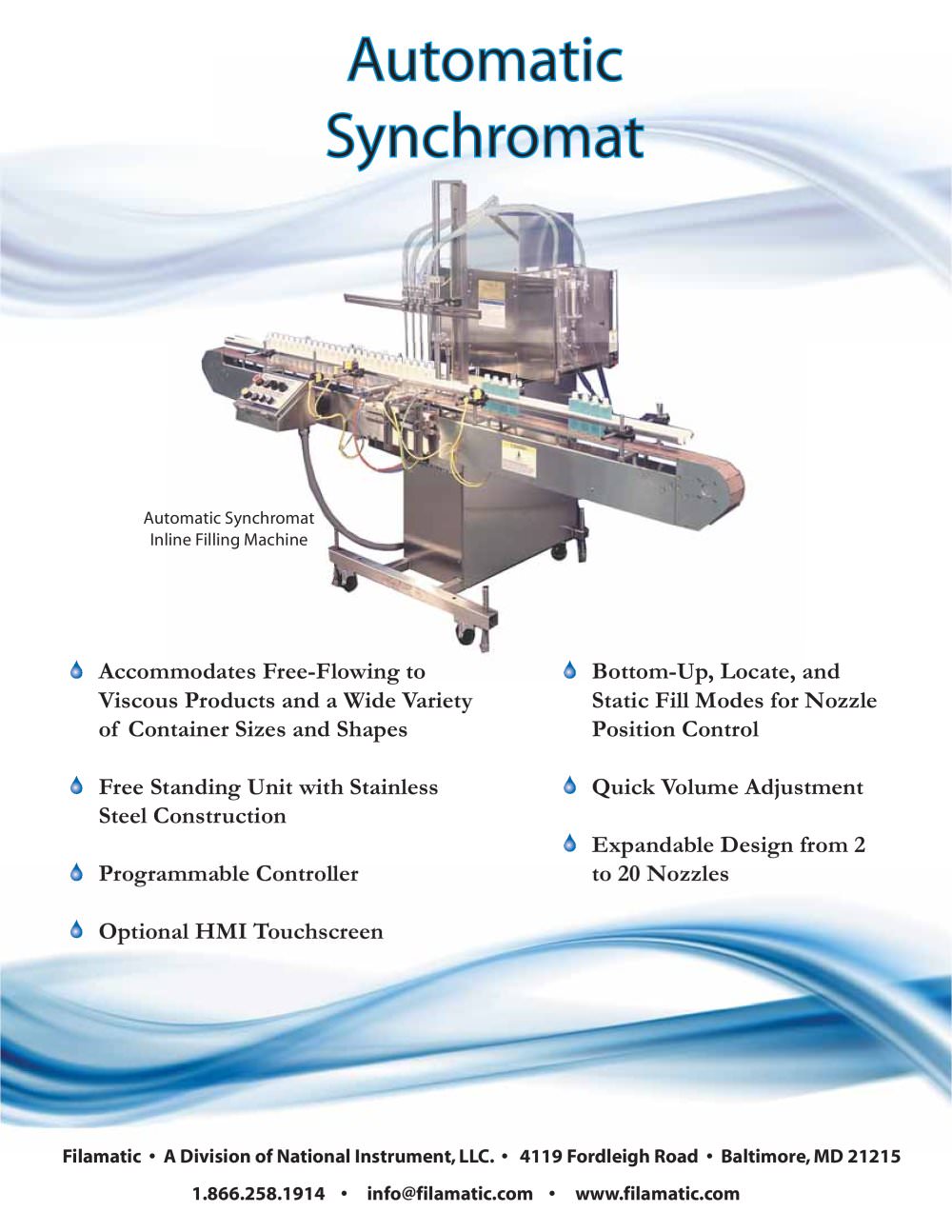

Automatic Synchromat Filamatic • A Division of National Instrument, LLC. • 4119 Fordleigh Road • Baltimore, MD 21215 1.866.258.1914 • [email protected] • www.filamatic.com Bottom-Up, Locate, and Static Fill Modes for Nozzle Position Control Quick Volume Adjustment Expandable Design from 2 to 20 Nozzles Accommodates Free-Flowing to Viscous Products and a Wide Variety of Container Sizes and Shapes Free Standing Unit with Stainless Steel Construction Programmable Controller Optional HMI Touchscreen Automatic Synchromat Inline Filling Machine
Open the catalog to page 1
Synchromat Specifications Additional Synchromat Features: Product may be Supplied from Floor Level Reservoir, Overhead Supply, or a Pressurized Source Optional Air Motor Drive Available for Hazardous Environments Optional Multi-Stroke System Extends Range Beyond 1 Liter Fill Accuracy ± .5% or better Fill Rate: Up to 34 cpm with 2 Filling Heads and Up to 200 cpm with 20 Filling Heads *Specifications for a standard Synchromat A Range of Filamatic Piston Pump Sizes and Models Available Size of Filling Unit Number of Filling Units SYN-8-2 SYN-8-4 SYN-8-4 SYN-32-2 SYN-32-4 SYN-32-4 (no drive bars)...
Open the catalog to page 2All Filamatic catalogs and technical brochures
