Automatic V Series Filling Machine

Automatic V Series Filling Machine
1 / 2 PagesView full catalog

Automatic V Series Filling Machine

Product catalog summary
Overview: The Filamatic V Series is a versatile filling machine designed for a range of products and container sizes. It offers various nozzle position control modes, quick volume adjustments, and a programmable controller. An optional HMI touchscreen and air motor drive for hazardous environments are available.
Specifications: The V Series accommodates different filling units, including FUS and FKS models with varying capacities. The V-300 and V-480 models support up to 12 and 22 filling units, respectively, with fill accuracy of ± 0.5% and rates up to 200 cpm for V-300 and 300 cpm for V-480.
Features: The machine is simple to operate, features a free-standing stainless steel frame, and includes built-in jack screws for leveling. It supports tool-less changeover and has an expandable design.
Additional Information: Filamatic offers complimentary product testing and flexible purchasing options, including rentals and leases. For more details, contact Filamatic at 866.258.1914 or [email protected].
See more

Catalog excerpts

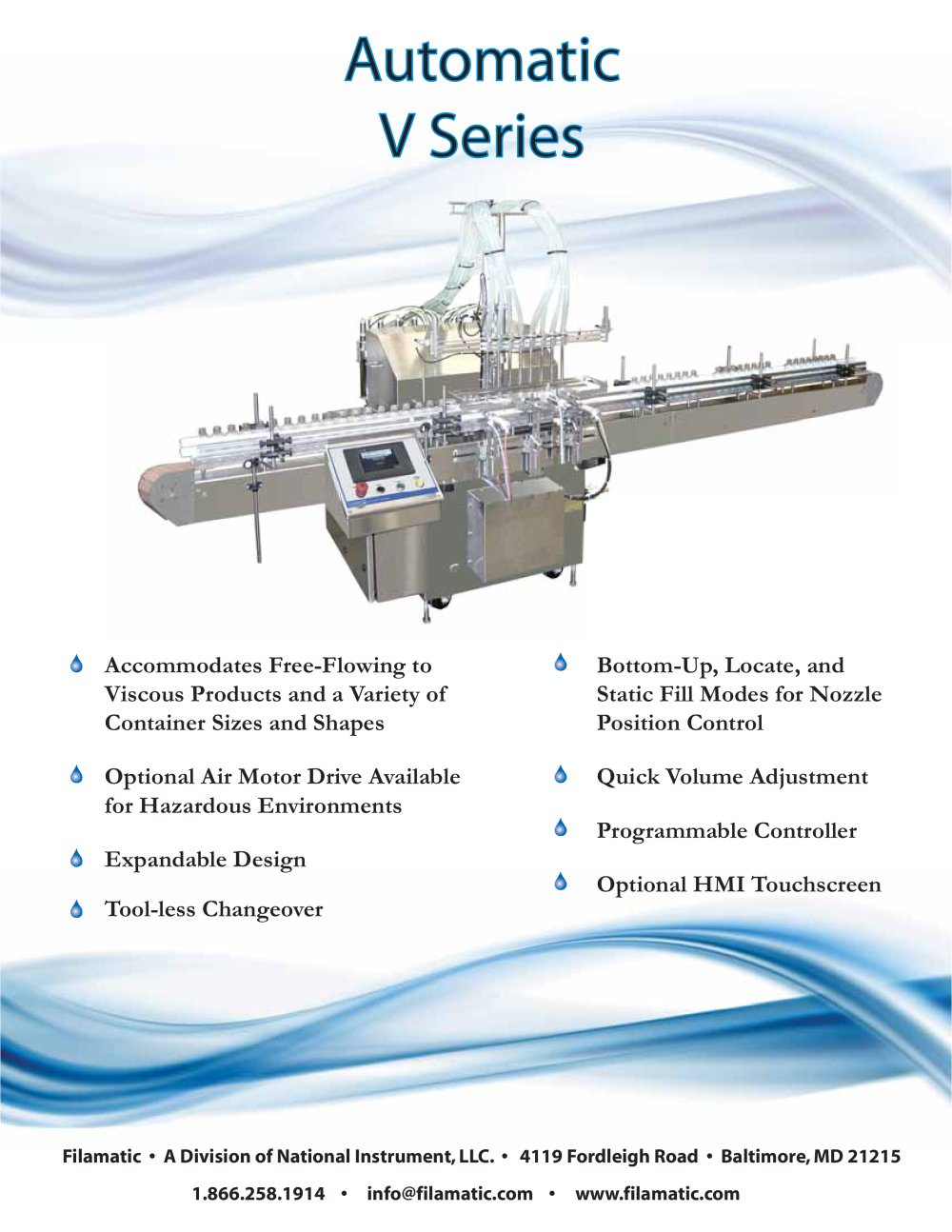

Automatic V Series Filling Machine-1

Automatic V Series Filamatic • A Division of National Instrument, LLC. • 4119 Fordleigh Road • Baltimore, MD 21215 1.866.258.1914 • [email protected] • www.filamatic.com Bottom-Up, Locate, and Static Fill Modes for Nozzle Position Control Quick Volume Adjustment Programmable Controller Optional HMI Touchscreen Accommodates Free-Flowing to Viscous Products and a Variety of Container Sizes and Shapes Optional Air Motor Drive Available for Hazardous Environments Expandable Design Tool-less Changeover

 Open the catalog to page 1
Automatic V Series Filling Machine-2

V Series Specifications Filamatic offers COMPLIMENTARY product testing and purchasing options including rentals and lease arrangements. For more information call 866.258.1914 or email [email protected]. Type of Filling Unit Number of Filling Units V-300 V-480 FUS (XL) 80 FKS (XL) 80 12 22 FUS (XL) 140 FKS (XL) 140 12 16 FUS (XL) 280 FKS (XL) 280 8 16 FUS (XL) 560 FKS ( XL) 560 8 14 FUS (XL) 1100 FKS (XL) 1100 6 10 FSV/XL 8 14 Additional V Series Features: Simple to Operate Free Standing Unit with Stainless Steel Frame Built-in Jack Screws for Leveling Fill Accuracy ± 0.5% Rates: V-300 up to...

 Open the catalog to page 2
